BIOPOZ Registry duo set for implant level
Unit price/ per
Please sign in to shop and see prices.

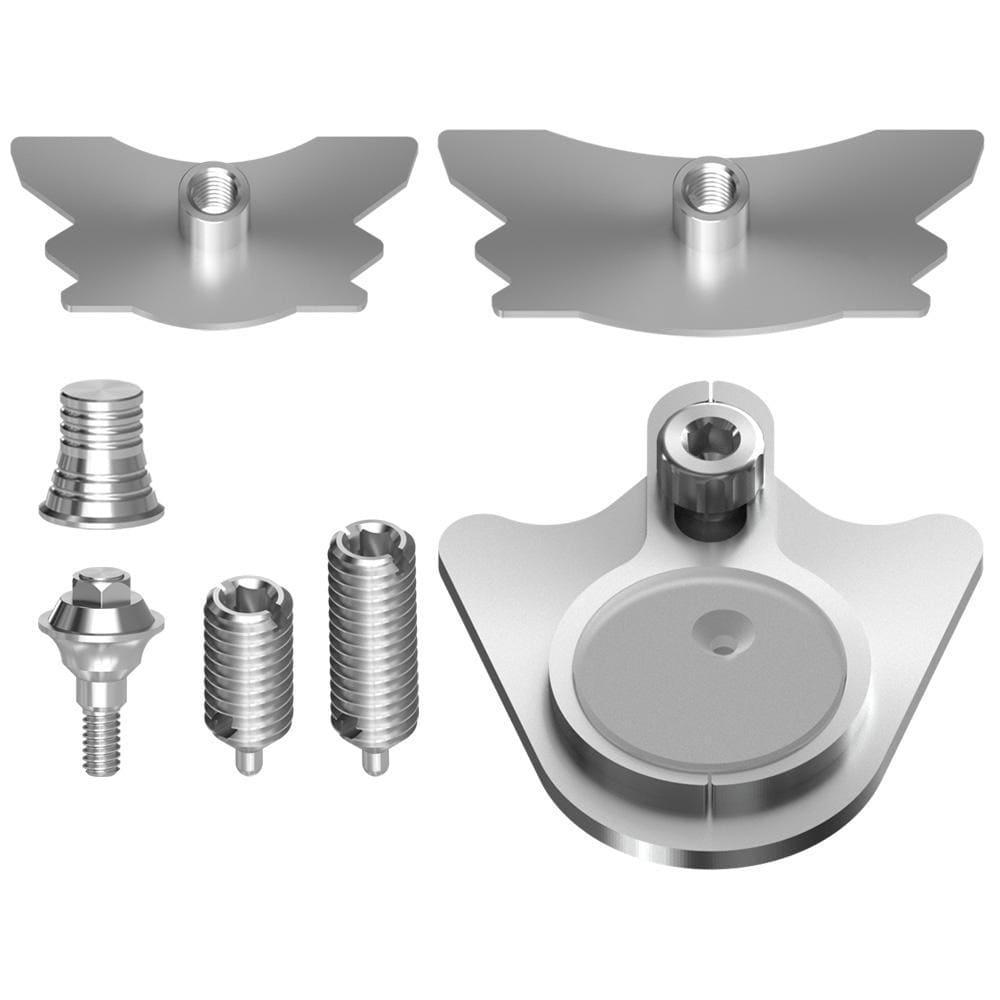

BIOPOZ Registry duo set for normal or extra size mouth, implant level.
The set contains:
- Drawing pin with support pin small 12mm
- Drawing pin with support pin large 16mm
- Solid Recording plate small
- Solid Recording plate large
- Positioning plastic sheet (2 pcs.)
- Drilled Record plate, small
- Drilled Record plate, large
- Recording screw
- Registry fork, small
- Registry fork, large
- Magnetic cap, titanium (10pcs)
- Magnetic bite registration head, implant level (10pcs)
Bite registration tools are needed so that we can determine the meeting plane of the occlusal surface of the lower and upper teeth. In the case of a toothless mouth, multiple solutions can be found in dental practice. However, there was no adequate solution for cases regarding implants. Based on the idea of the dental technician, József Rátonyi, BIONIKA Medline Orvostechnikai Kft. has developed a simple, globally unique method and toolset aimed at this pivotal problem, for accurate bite adjustment in implant-based dentures. The essence of this solution is that the implants are equipped with a structure containing matching parts, which ensures the implant’s parallelism within broad boundaries. For the system to work even in the case of significant angular deviation (e.g. 60°/90°), we prefer the use of conical geometry. As a solution, we use an external conic abutment and a magnetic insert within the implant, and a cap part connected by a magnet with appropriate force. The magnetic connection ensures the simple movement, but safe position of the matching parts.
Selection of bite registration
The bite registration heads are available for any implantation system at BIONIKA. The head design is the same with every system in the cap area and differs only in its features with relation to the implant. That is, the head design is usually similar to a 60° Multi-Unit conical solution (also available in a 90° design), in which the upper Multi-Unit screw is replaced with a magnet. This ensures the secure positioning of the bite registration cap, and its simple removability at the same time. The bite registration heads are available to be either fastened directly into the implant (implant level) or placed on Multi-Unit heads (Multi-Unit level) appropriately to the usual applied dentures.
Our products conform to legal requirements and are CE marked.
