BIONIKA DI UF, Narrow abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Angled Narrow Abutment with Fixed Orientation for Constrained Implant Sites

The Narrow abutment, angled, positioned, type-B is an implant-level prosthetic component designed for situations where space is limited, yet angulation correction is required. Its slim profile makes it suitable for use in narrow interproximal spaces, while the angled axis helps compensate for non-ideal implant positioning.

The Type B indexing means that a specific point of the connection interface always aligns with a fixed orientation relative to the top of the abutment. This precise rotational positioning is essential in multi-implant restorations—especially when dealing with angled corrections—ensuring accurate alignment of prosthetic components.

Main Advantages:

• Slender design: Ideal for limited space, particularly in anterior regions.
• Angled configuration: Allows correction of implant axis for improved prosthetic direction.
• Indexed connection (Type B): The connection point always faces the same direction for consistent prosthetic orientation.
• Implant-level fit: Secure and precise connection to the implant body.
• Biocompatible titanium: Durable, sterilizable, and safe for long-term clinical use.
• The product includes the screw.

Application Area:

The Narrow abutment, angled, positioned, type-B is the ideal choice in cases where space is constrained, the implant is not perfectly aligned, and consistent orientation is critical for the final prosthetic outcome.

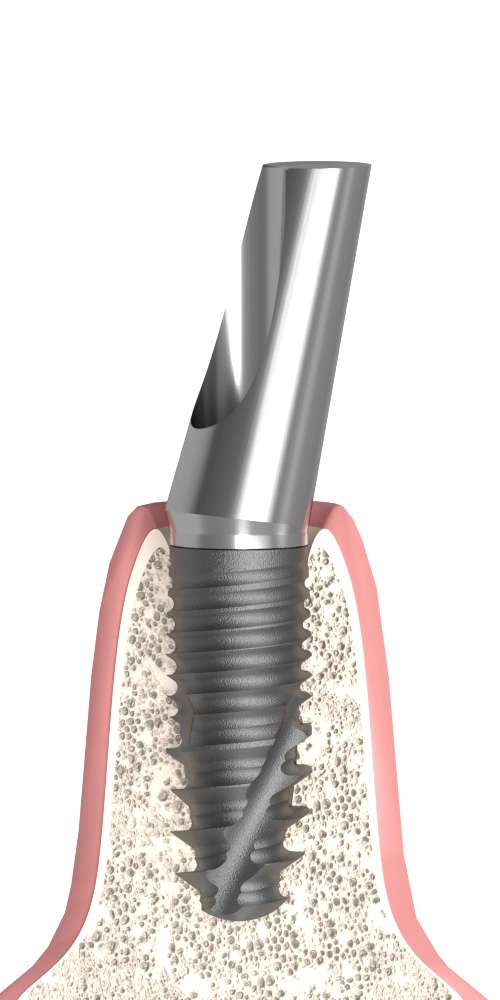

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
