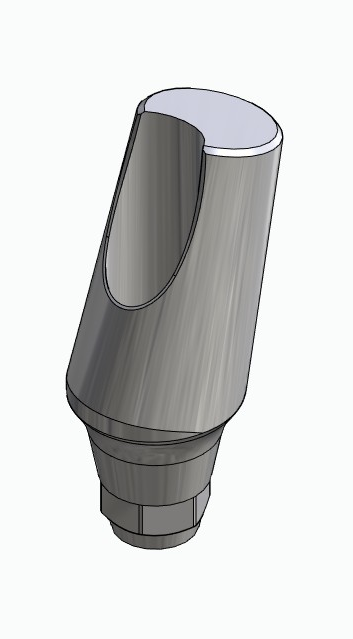

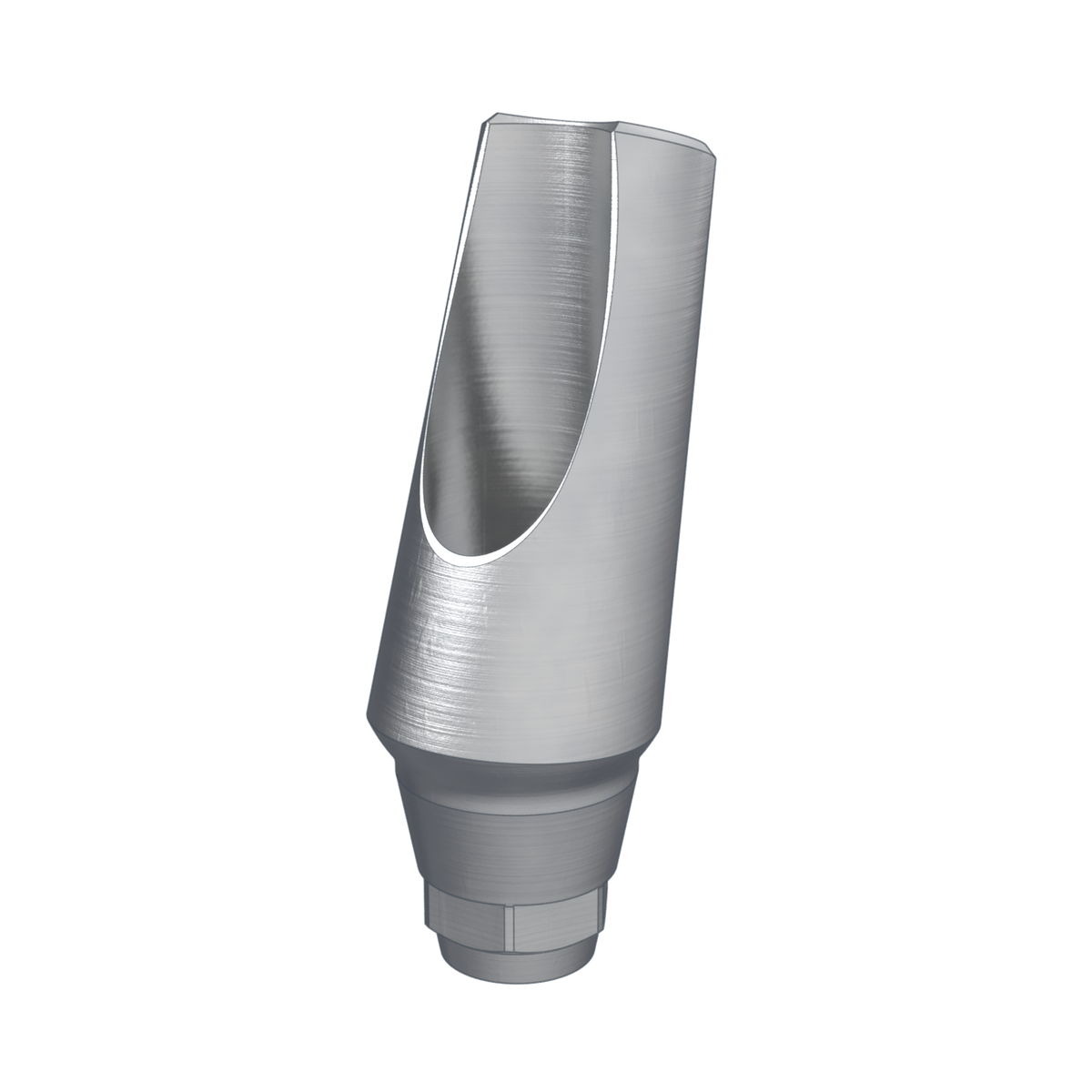

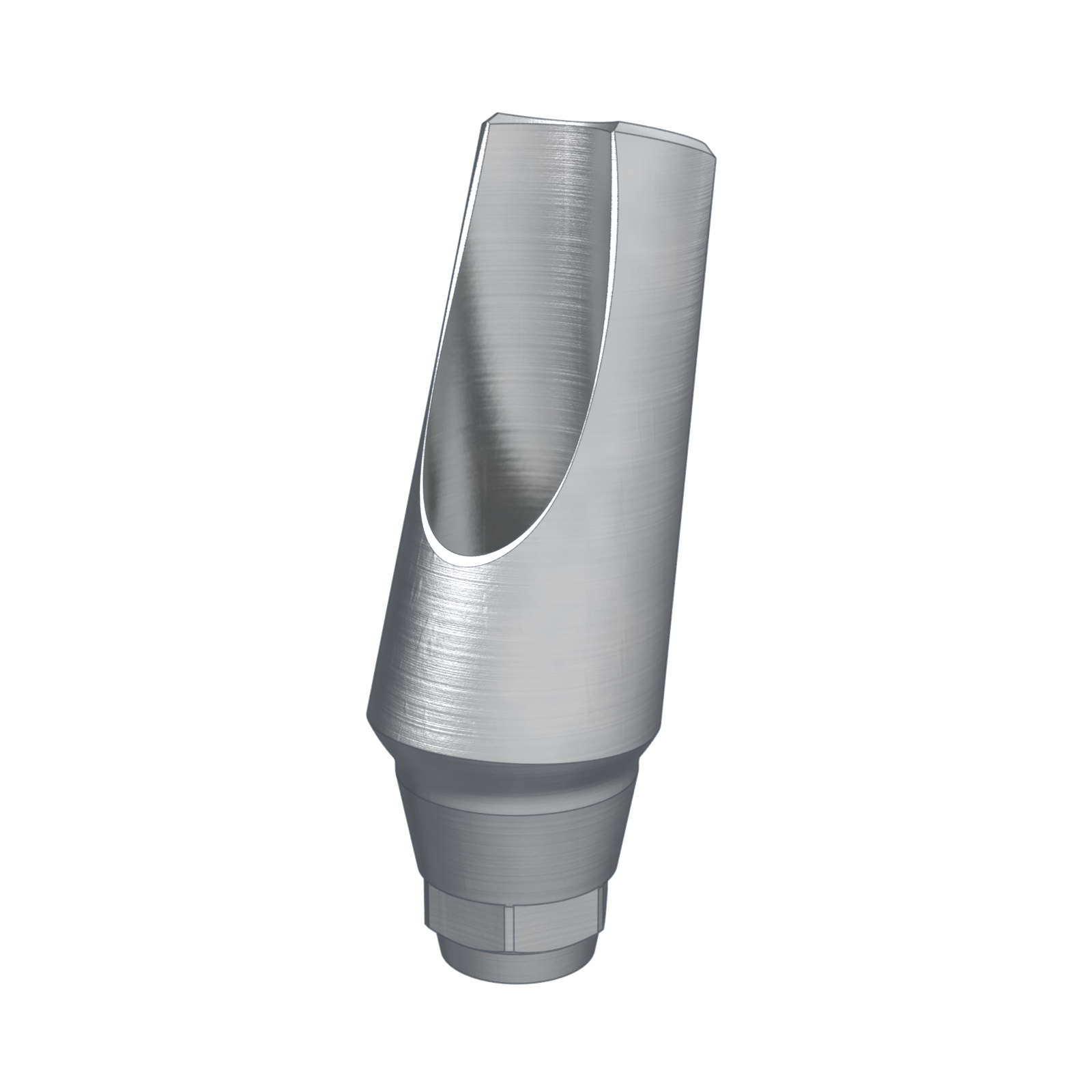

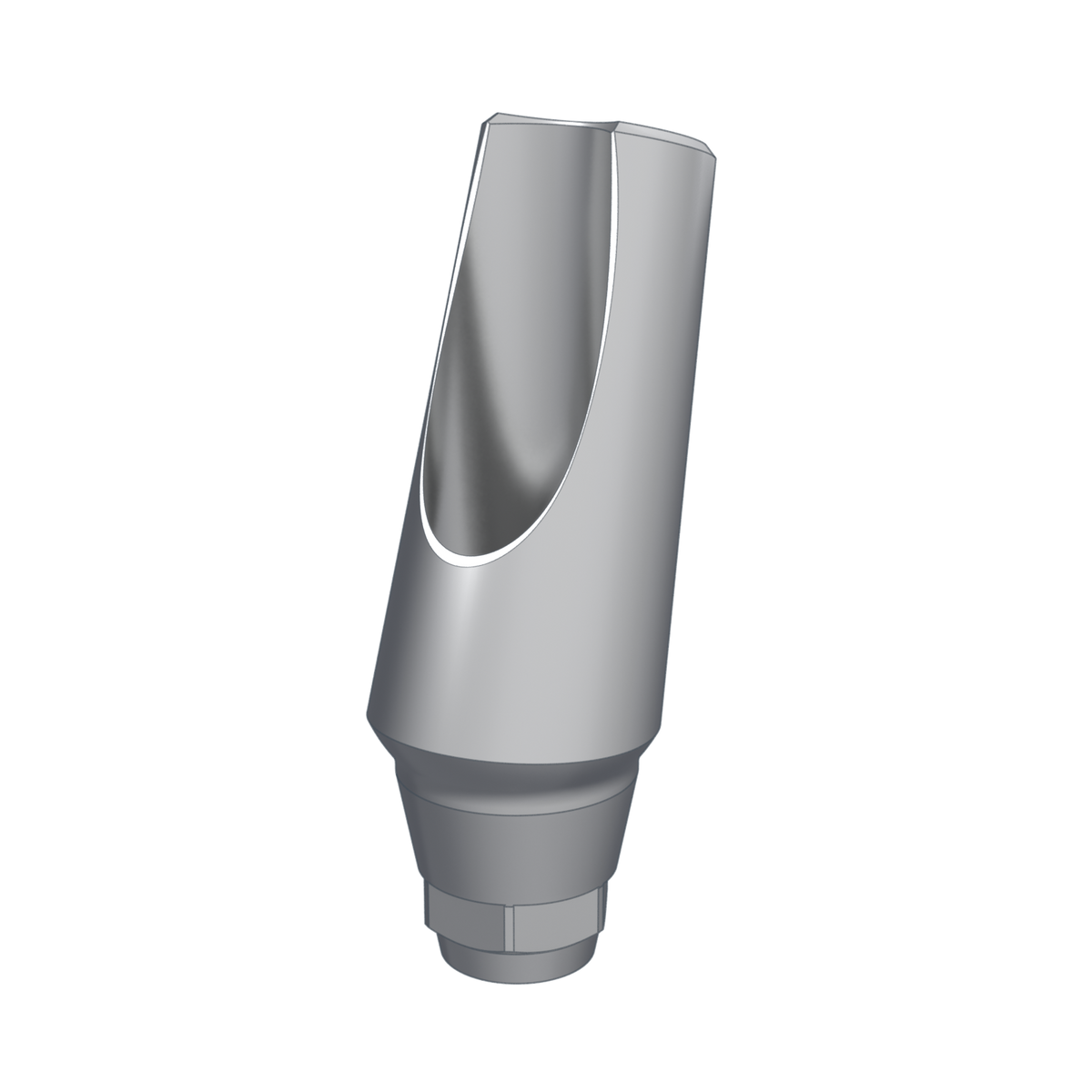

BIONIKA DI UF, Narrow abutment, angled, positioned, type-A

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Narrow Angled Abutment for Constrained Spaces with Indexed Orientation

The Narrow abutment, angled, positioned, type-A is an implant-level restoration component specifically designed for cases requiring angulation correction in narrow interproximal spaces. Its slim profile is ideal for limited space within the dental arch, while the angled configuration allows for the compensation of suboptimally placed implants.

The Type A indexed connection ensures that one specific flat surface of the abutment interface always aligns with the same orientation relative to the top of the abutment. This guarantees fixed rotational positioning, which is essential in multi-implant cases—especially when combined with angled abutments. Accurate repositioning enhances the alignment of prosthetic components and contributes to a harmonious soft tissue profile.

Main Advantages:

• Slender design: Ideal for narrow interdental spaces and limited gingival height.
• Angled correction: Optimises prosthetic axis by compensating for implant misalignment.
• Indexed connection (Type A): Ensures consistent orientation—flat face always in the same position.
• Implant-level fit: Direct, stable connection to the implant body.
• Biocompatible titanium: Safe, sterilizable, and durable for long-term clinical use.
• The product includes the screw.

Application Area:

The Narrow abutment, angled, positioned, type-A is an excellent solution for anterior regions or tightly spaced implant sites, especially where angular correction and precise prosthetic alignment are required during treatment planning.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
