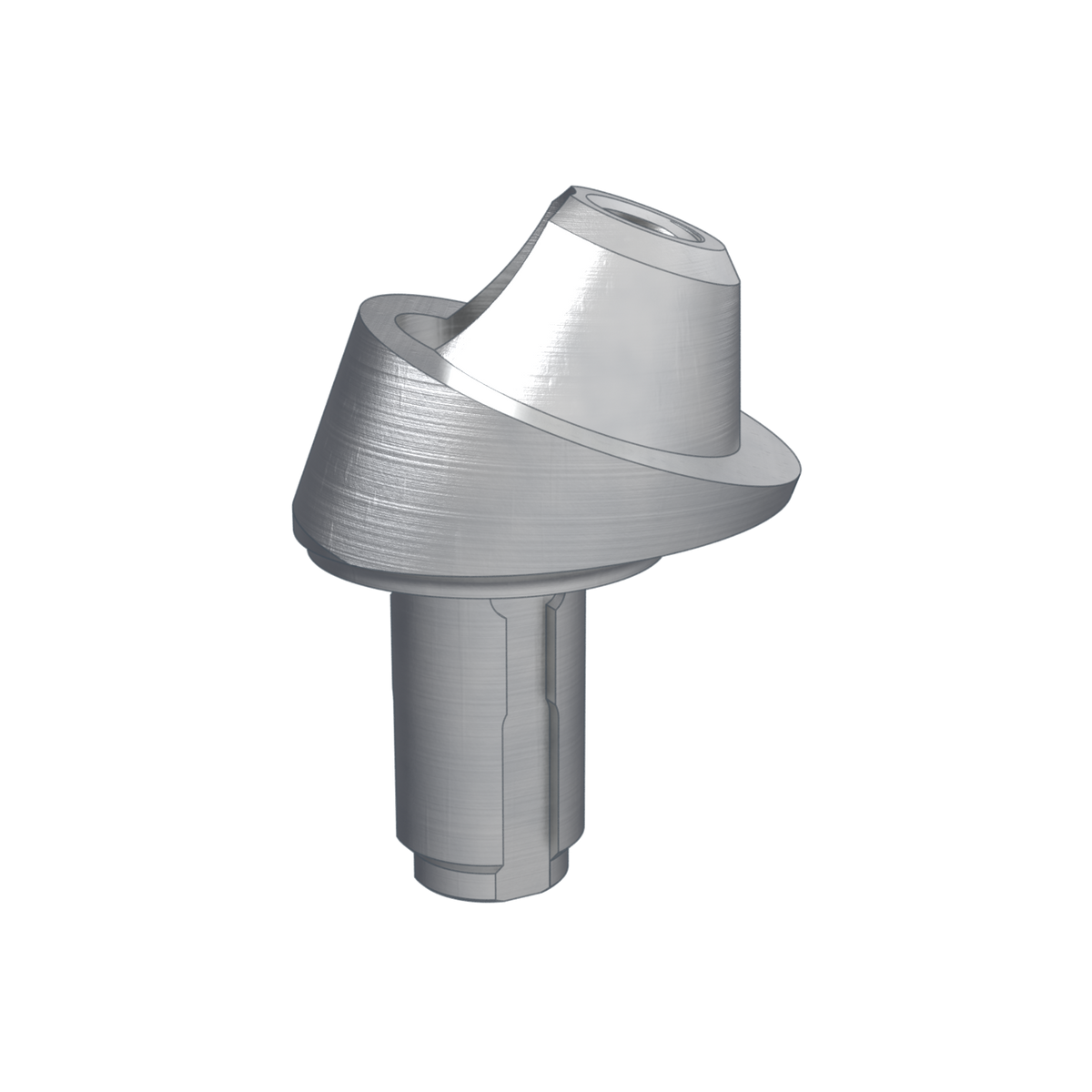

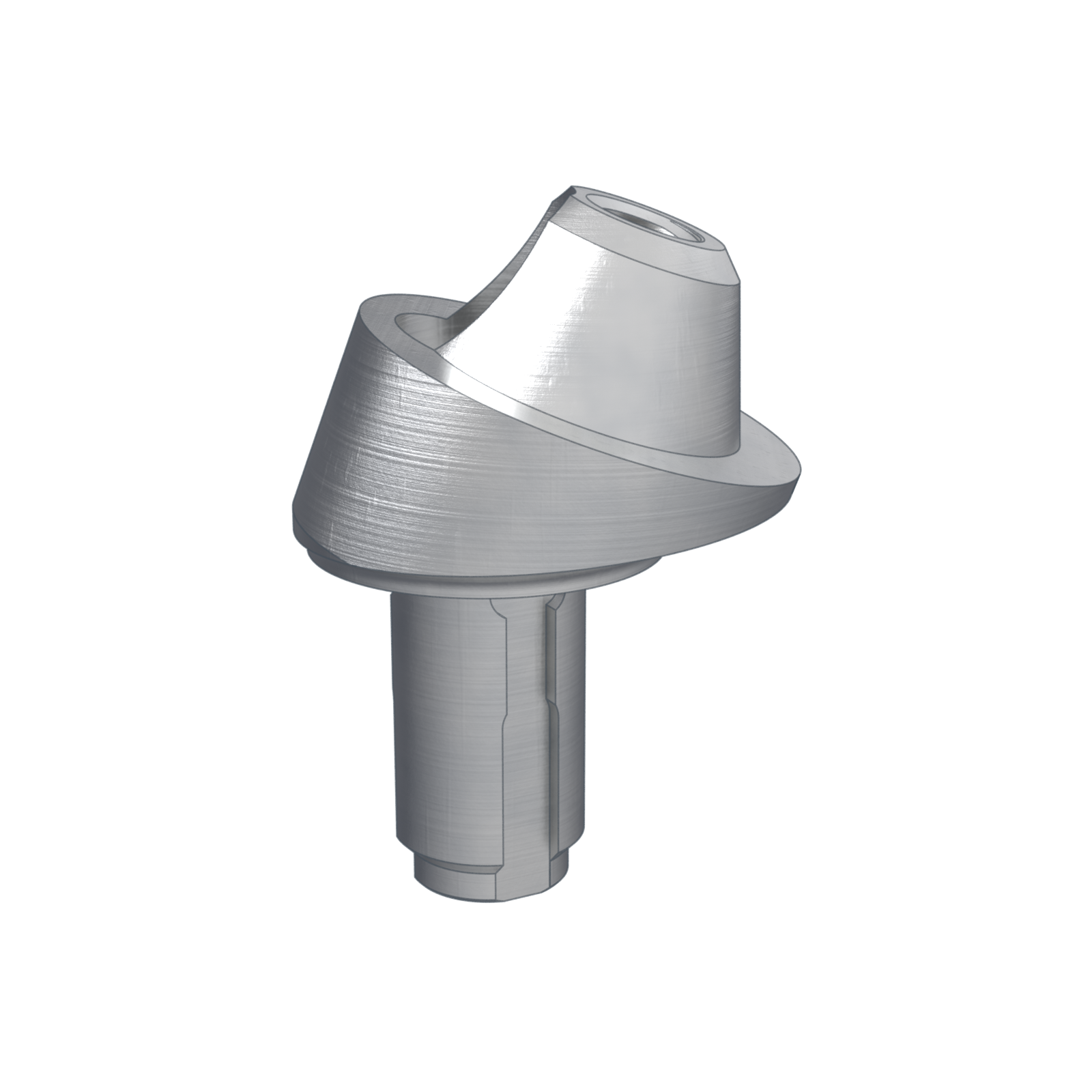

BIONIKA WL, Multi-unit abutment, angled, positioned, wide, LT2, type-B

Brand characteristics

The BIONIKA WL implant system is compatible with the VITAL WIELAND® platform and features a precise internal conical connection (Conical-Connection) that ensures a micromovement-free and bacteria-tight fit.

The implant’s anatomical, root-shaped body and self-compressing thread profile provide excellent primary stability, making the system suitable for immediate loading.

The micro-grooved cervical zone promotes bone preservation and soft tissue stabilisation, while the self-cutting thread design allows for gentle insertion and rapid osseointegration.

The platform switching concept minimises bone resorption and contributes to long-term aesthetic results. The BIONIKA WL system is an ideal choice for professionals seeking reliable and precise implant solutions compatible with the VITAL WIELAND platform.

Geometry characteristics

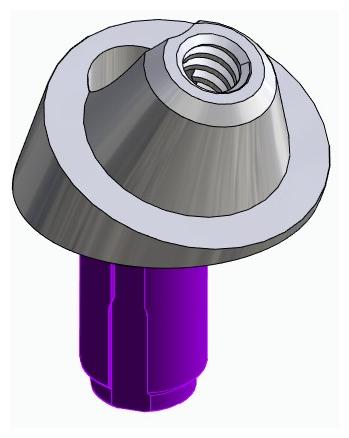

Angled Multi-Unit Abutment with Type B Orientation for LT2 System, Wide Design, M1.4 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is a prosthetic abutment designed for connection to implants or intermediate multi-unit bases, offering angular correction in cases where implant axes are not ideally aligned. Its wide profile enhances support for soft tissues and final restorations, particularly in the posterior region.

The Type B position-oriented design ensures that a specific apex of the connection interface always aligns in the same orientation relative to the top of the abutment. This precise orientation is essential for screw-retained restorations involving multiple implants, where alignment of contours, axes, and margins is critical to both aesthetic and functional outcomes.

The abutment features an M1.4 internal thread at the top, used to secure final prosthetic components such as suprastructures or bridge frameworks. The lower portion connects to the LT2 multi-unit platform without the need for a screw, ensuring a stable, geometry-based fit.

Main Advantages:

• Angular correction: Compensates for suboptimal implant angulations.
• Position-oriented design (Type B): A specific apex consistently aligns upon reinsertion.
• Wide profile: Provides greater support and stability for restorations in posterior zones.
• LT2 compatibility: Fully integrates with the corresponding multi-unit platform.
• M1.4 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Long-term durability, tissue-friendly, and sterilizable material.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is an excellent solution for screw-retained restorations on multiple implants, where angular correction, stable support, precise orientation, and full compatibility with the LT2 system are required.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
