BIONIKA WL, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B

Brand characteristics

The BIONIKA WL implant system is compatible with the VITAL WIELAND® platform and features a precise internal conical connection (Conical-Connection) that ensures a micromovement-free and bacteria-tight fit.

The implant’s anatomical, root-shaped body and self-compressing thread profile provide excellent primary stability, making the system suitable for immediate loading.

The micro-grooved cervical zone promotes bone preservation and soft tissue stabilisation, while the self-cutting thread design allows for gentle insertion and rapid osseointegration.

The platform switching concept minimises bone resorption and contributes to long-term aesthetic results. The BIONIKA WL system is an ideal choice for professionals seeking reliable and precise implant solutions compatible with the VITAL WIELAND platform.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base. It provides angular correction, particularly useful in cases where implants are not inserted parallel to one another. Its narrow design is especially advantageous in anterior regions or tight interproximal spaces, where aesthetics and space efficiency are critical.

The Type B position-orientation ensures that a specific point of the connection surface always aligns in the same direction relative to the top of the abutment upon reinsertion. This allows for accurate orientation and consistent seating, which is essential in screw-retained restorations on multiple implants.

The M1.6 internal thread is located at the top of the abutment, enabling the fixation of various prosthetic components such as bridge frameworks or custom restorations. The lower connection is designed to fit the LT2.7 platform geometry without a retaining screw.

Main Advantages:

• Angular correction: Aligns implant axes with prosthetic orientation.
• Type B orientation: A defined point of the interface aligns consistently upon reinsertion.
• Narrow design: Ideal for use in narrow spaces and the aesthetic zone.
• LT2.7 compatibility: Precisely fits the corresponding multi-unit platform.
• M1.6 internal thread: Suitable for securing screw-retained prosthetic components.
• Biocompatible titanium: Durable, sterilizable, and safe for clinical use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is the ideal solution for screw-retained restorations on multiple implants when angular correction, narrow profile, and reliable orientation are required along with full compatibility with the LT2.7 platform.

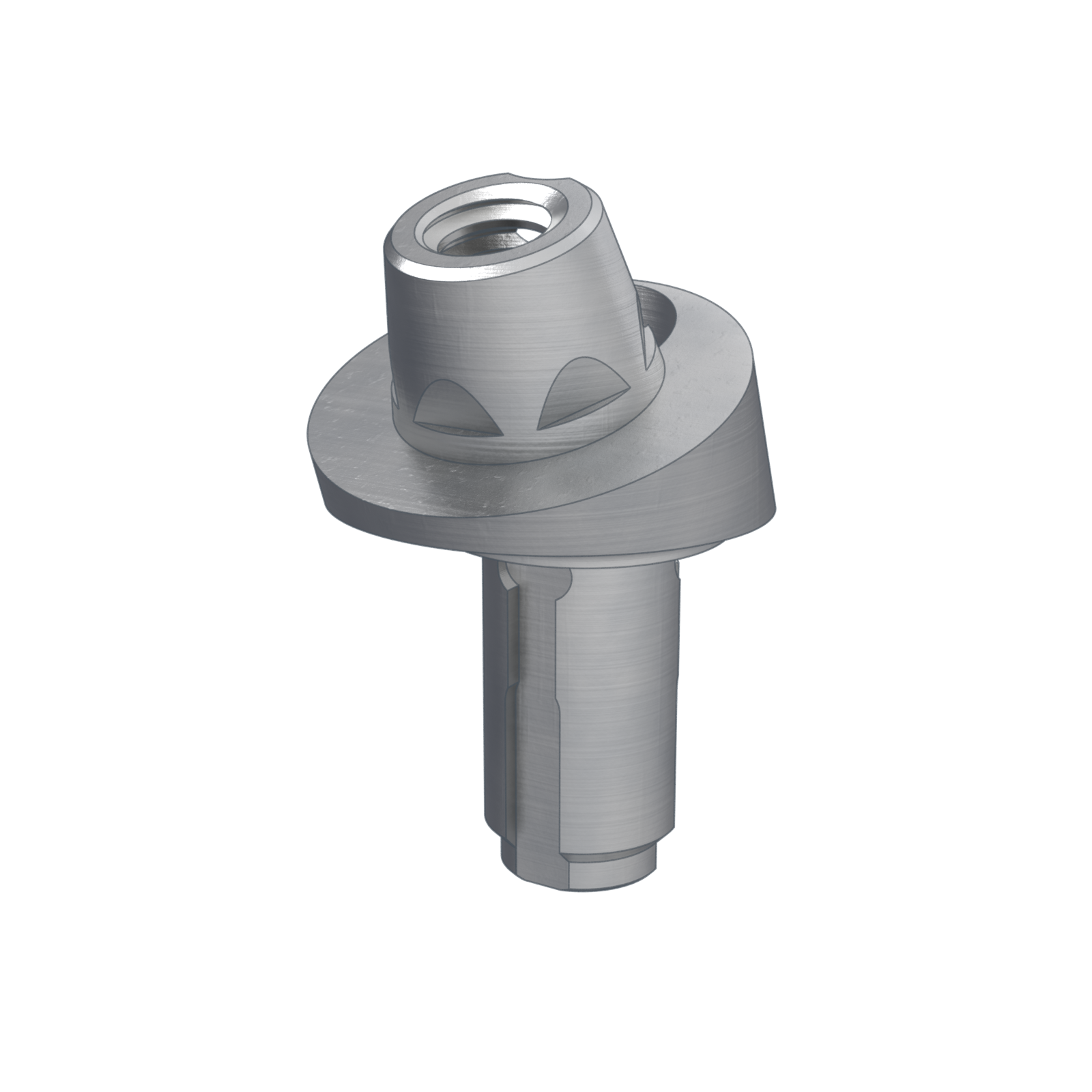

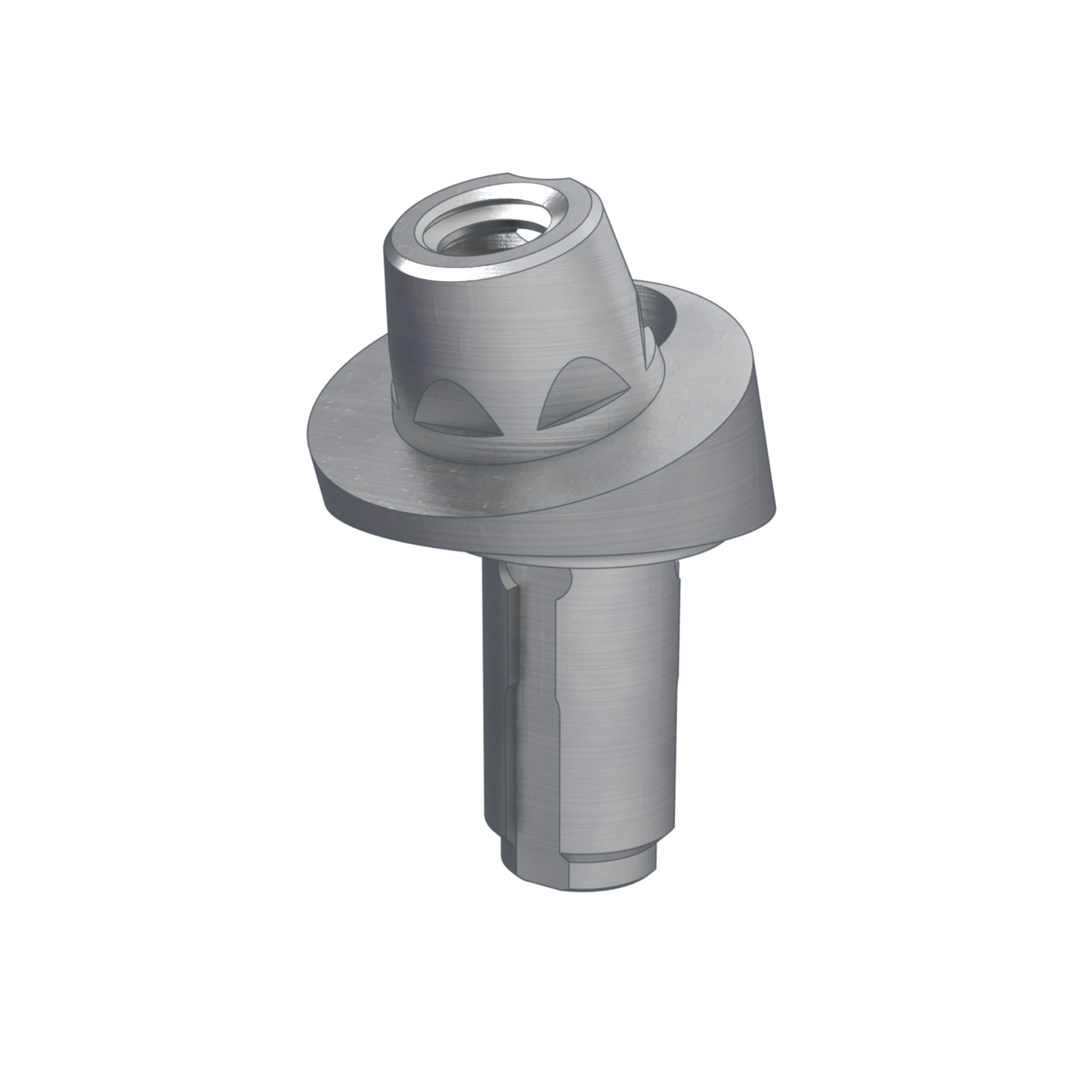

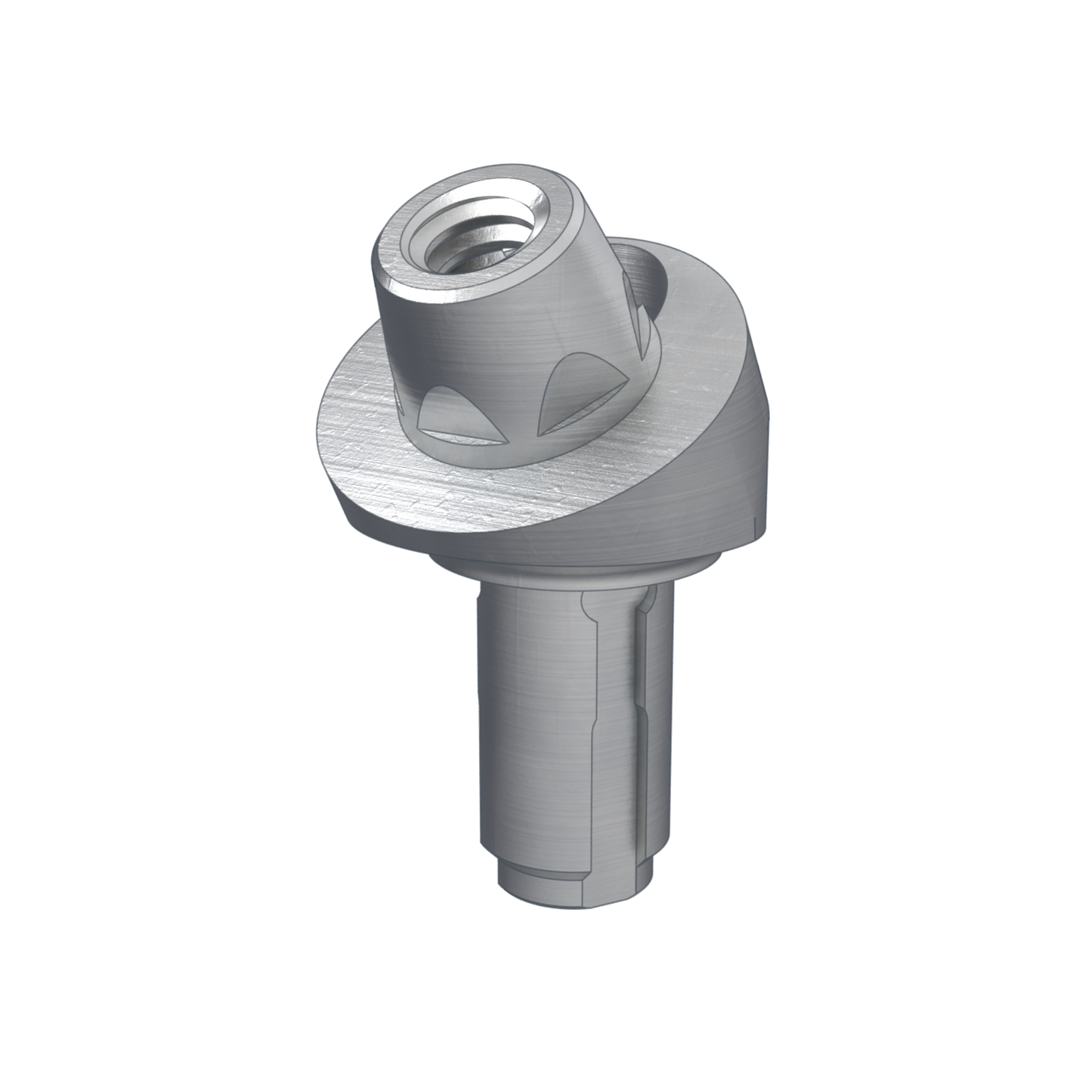

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
