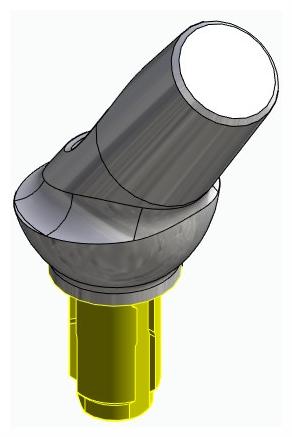

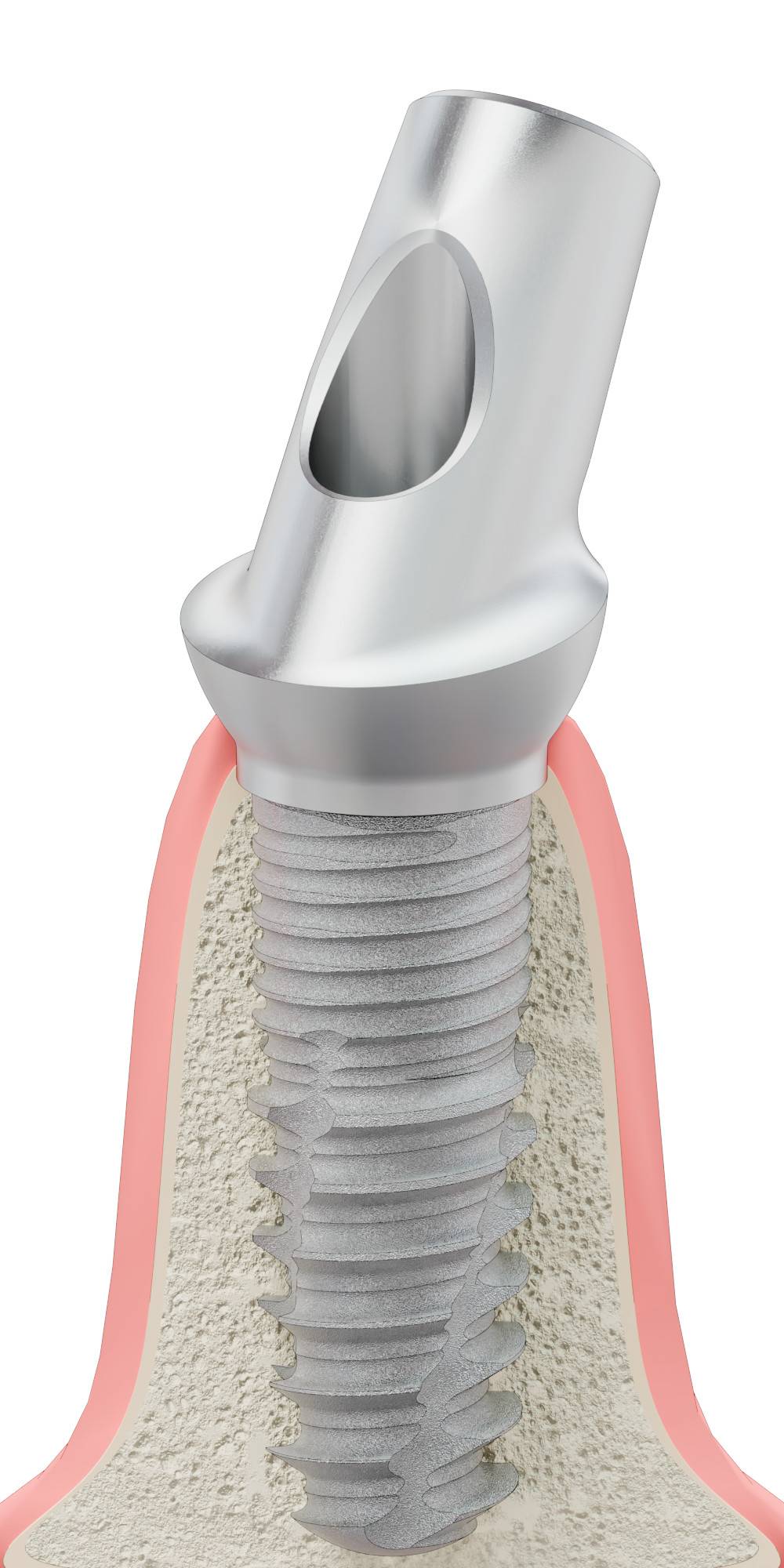

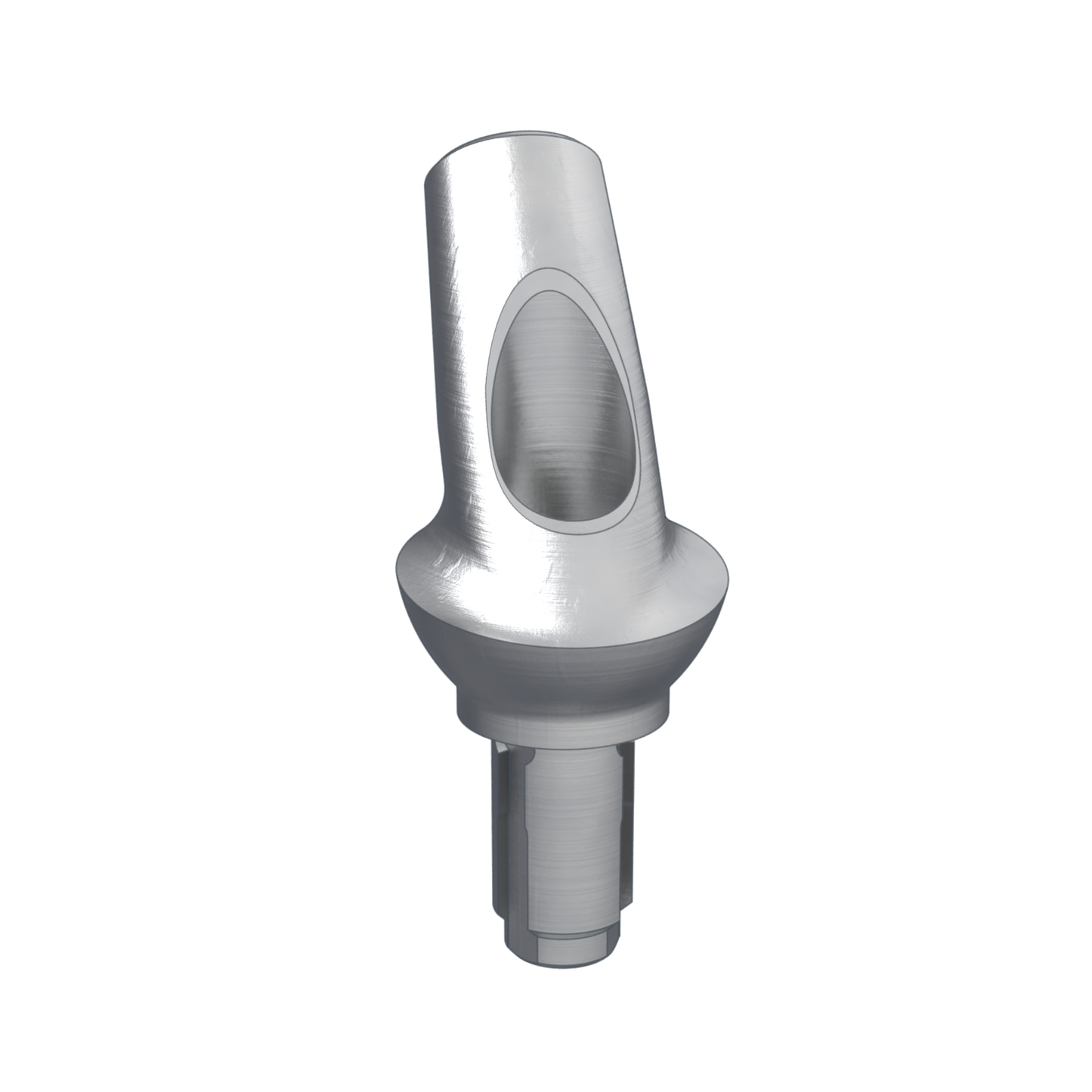

BIONIKA WL, Anatomic abutment, angled, 35°, positioned, type-A

Brand characteristics

The BIONIKA WL implant system is compatible with the VITAL WIELAND® platform and features a precise internal conical connection (Conical-Connection) that ensures a micromovement-free and bacteria-tight fit.

The implant’s anatomical, root-shaped body and self-compressing thread profile provide excellent primary stability, making the system suitable for immediate loading.

The micro-grooved cervical zone promotes bone preservation and soft tissue stabilisation, while the self-cutting thread design allows for gentle insertion and rapid osseointegration.

The platform switching concept minimises bone resorption and contributes to long-term aesthetic results. The BIONIKA WL system is an ideal choice for professionals seeking reliable and precise implant solutions compatible with the VITAL WIELAND platform.

Geometry characteristics

Customisable Abutment for High-Angle Correction with Natural Contour and Precise Orientation

The Anatomic abutment, angled, 35°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for implants exhibiting significant axial deviation. The 35° angulation allows for the correction of major discrepancies between the implant and prosthetic axes without compromising aesthetics or functionality.

The Type A indexed design ensures that the abutment is always repositioned in the same orientation. In this design, a specific flat surface of the connection consistently aligns with the same direction relative to the top of the abutment. This guarantees precise orientation, which is essential in multi-implant restorations.

Main Advantages:

• 35° angle correction: Outstanding capability to correct major axial deviations.
• Anatomical shape: Preformed design promotes natural appearance and gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures precise repositioning.
• Customisable design: Individually shapeable according to clinical or laboratory needs.
• Implant-level connection: Stable and reliable fit to the implant.
• Biocompatible titanium: Durable, tissue-friendly, and sterilisable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-A is the ideal solution when the implant is significantly misaligned with the desired prosthetic axis and precise orientation along with a natural appearance are key—such as in restorations involving multiple implants.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
