BIONIKA TLX, Narrow abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA TLX implant system is compatible with the TIOLOX® platform and features a classic internal hex connection (Internal Hex Connection), providing a reliable, stable, and well-established fit.

The implant’s straight body geometry and precisely engineered thread design ensure excellent primary stability, while the micro-grooved neck supports bone preservation and long-term stable integration.

The self-cutting thread profile facilitates insertion and optimises force distribution within the bone, minimising stress. The anatomically shaped body enhances bone compression and promotes rapid osseointegration.

The BIONIKA TLX system is an ideal choice for professionals working with the TIOLOX platform who wish to combine traditional design principles with modern, precision manufacturing quality.

Geometry characteristics

Angled Narrow Abutment with Fixed Orientation for Constrained Implant Sites

The Narrow abutment, angled, positioned, type-B is an implant-level prosthetic component designed for situations where space is limited, yet angulation correction is required. Its slim profile makes it suitable for use in narrow interproximal spaces, while the angled axis helps compensate for non-ideal implant positioning.

The Type B indexing means that a specific point of the connection interface always aligns with a fixed orientation relative to the top of the abutment. This precise rotational positioning is essential in multi-implant restorations—especially when dealing with angled corrections—ensuring accurate alignment of prosthetic components.

Main Advantages:

• Slender design: Ideal for limited space, particularly in anterior regions.
• Angled configuration: Allows correction of implant axis for improved prosthetic direction.
• Indexed connection (Type B): The connection point always faces the same direction for consistent prosthetic orientation.
• Implant-level fit: Secure and precise connection to the implant body.
• Biocompatible titanium: Durable, sterilizable, and safe for long-term clinical use.
• The product includes the screw.

Application Area:

The Narrow abutment, angled, positioned, type-B is the ideal choice in cases where space is constrained, the implant is not perfectly aligned, and consistent orientation is critical for the final prosthetic outcome.

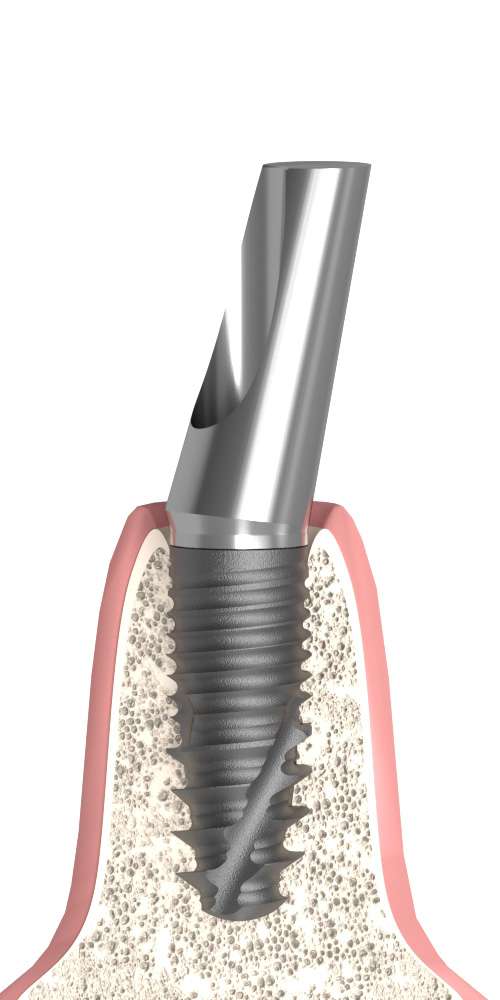

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
