BIONIKA SD, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A

Brand characteristics

The BIONIKA SD implant system is compatible with the BEGO Semados® platform and features a precise conical and hexagonal (Cone & Hex) connection that ensures micromovement-free load transfer and exceptional primary stability.

The 30° conical interface directs forces deep into the implant body, reducing the risk of bone resorption and enhancing long-term stability.

The spirally micro-grooved, self-locking thread structure and cycloidal thread profile facilitate dynamic load distribution and promote rapid osseointegration.

The platform switching design creates a biological seal at the implant shoulder, supporting the natural adaptation of bone and soft tissue.

With its anatomical root-shaped design, self-cutting and self-compressing thread geometry, the SD implant provides excellent primary stability, aesthetic gingival adaptation, and reliable long-term performance.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base, offering angular correction where there is a deviation between the implant axis and the ideal prosthetic axis. Its narrow profile makes it an excellent choice for use in tight interproximal spaces or in the aesthetic zone.

The Type A orientation ensures that a specific flat surface of the connection interface always aligns in the same direction relative to the top of the abutment upon reinsertion. This is particularly advantageous in multi-implant screw-retained restorations where symmetry and axial alignment of prosthetic components are essential.

The M1.6 internal thread located at the top of the abutment enables the secure attachment of various prosthetic components, such as screw-retained bridge frameworks or suprastructures. The bottom of the abutment connects to the multi-unit base via a geometry-based fit, without a retaining screw.

Main Advantages:

• Angular correction: Compensates for deviations in implant angulation.
• Type A orientation: A specific flat surface consistently aligns upon reinsertion.
• Narrow profile: Ideal for limited space and anterior applications.
• LT2.7 compatibility: Ensures precise fit with system-specific multi-unit bases.
• M1.6 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Tissue-friendly, sterilizable, and safe for long-term use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is an ideal solution for screw-retained restorations on multiple implants where angular correction, a narrow profile, precise orientation, and compatibility with the LT2.7 system are required.

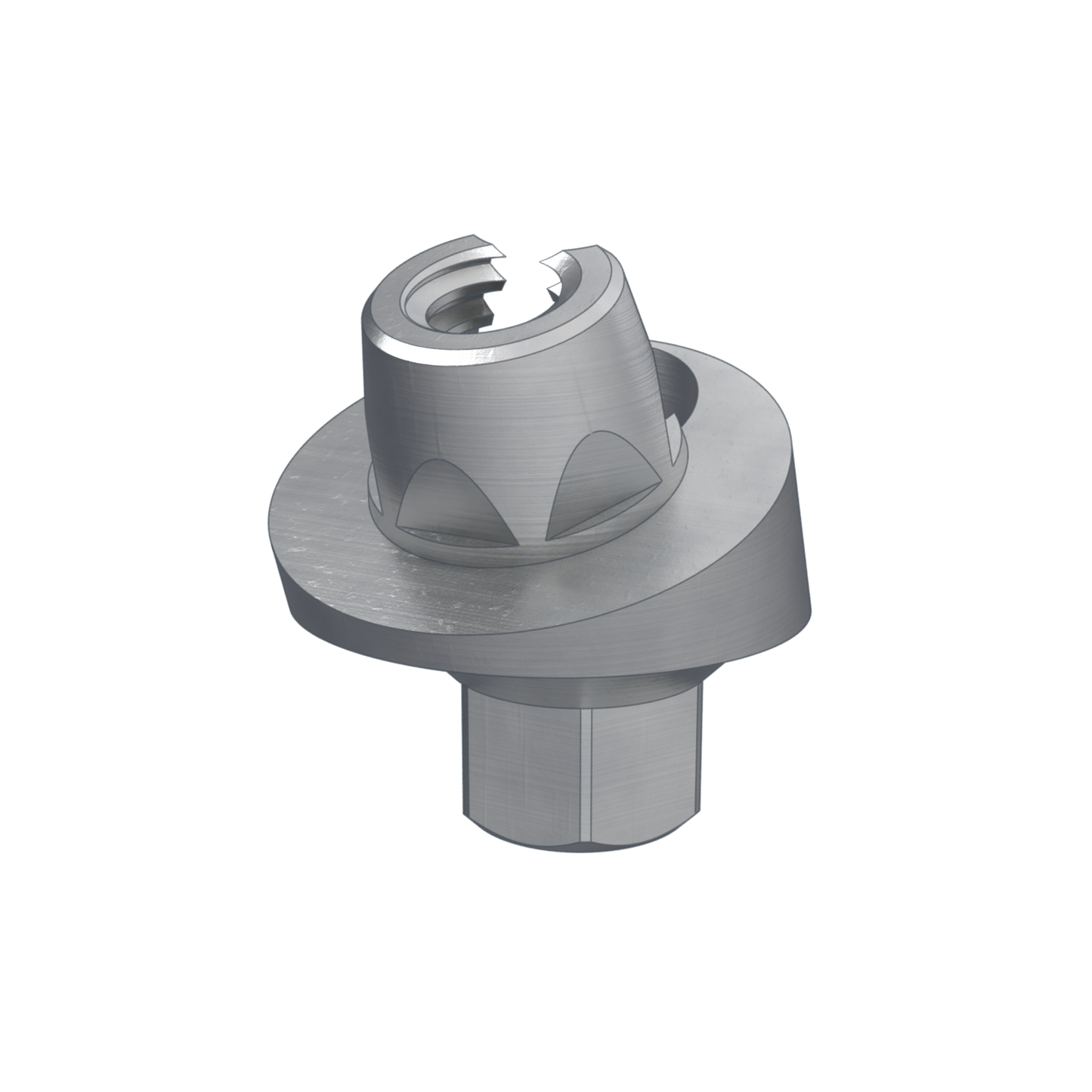

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
