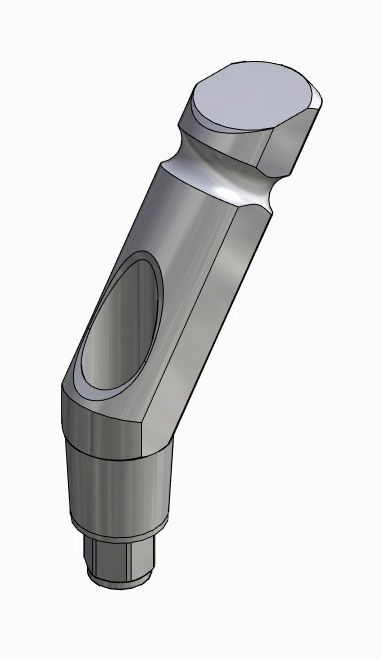

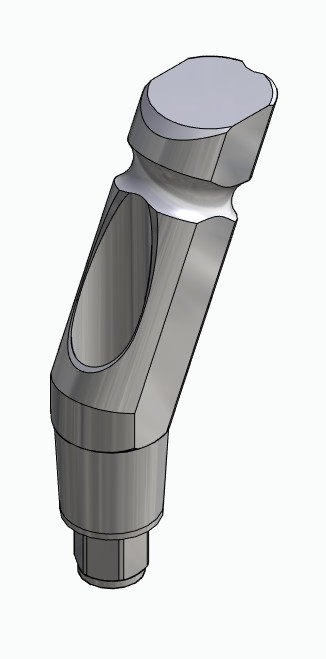

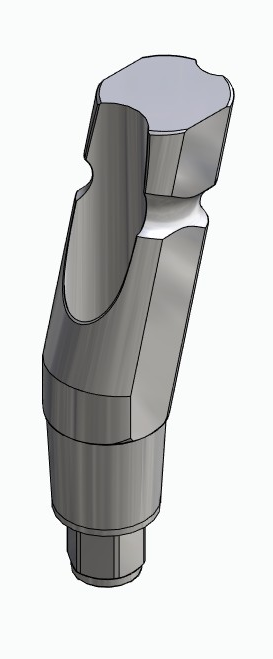

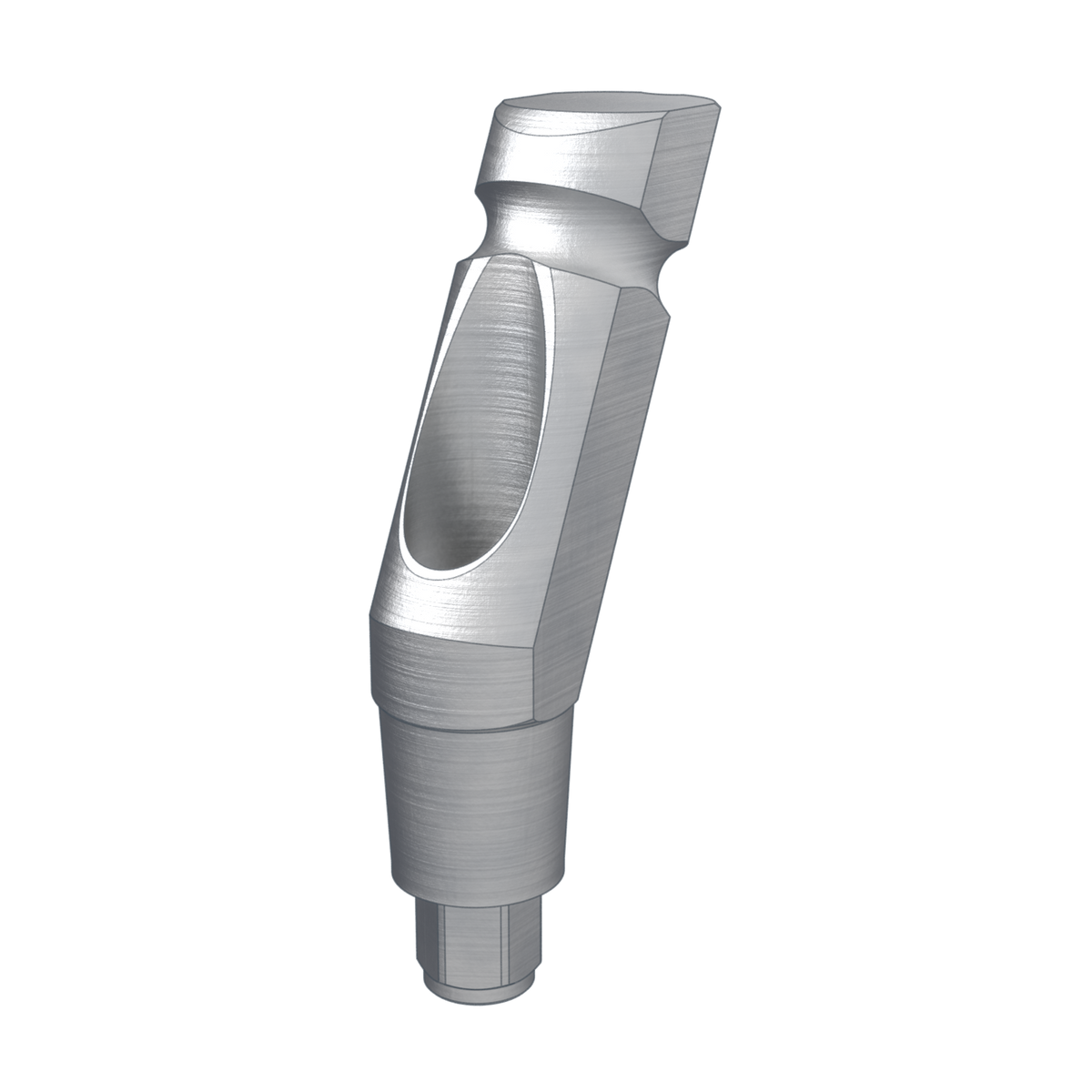

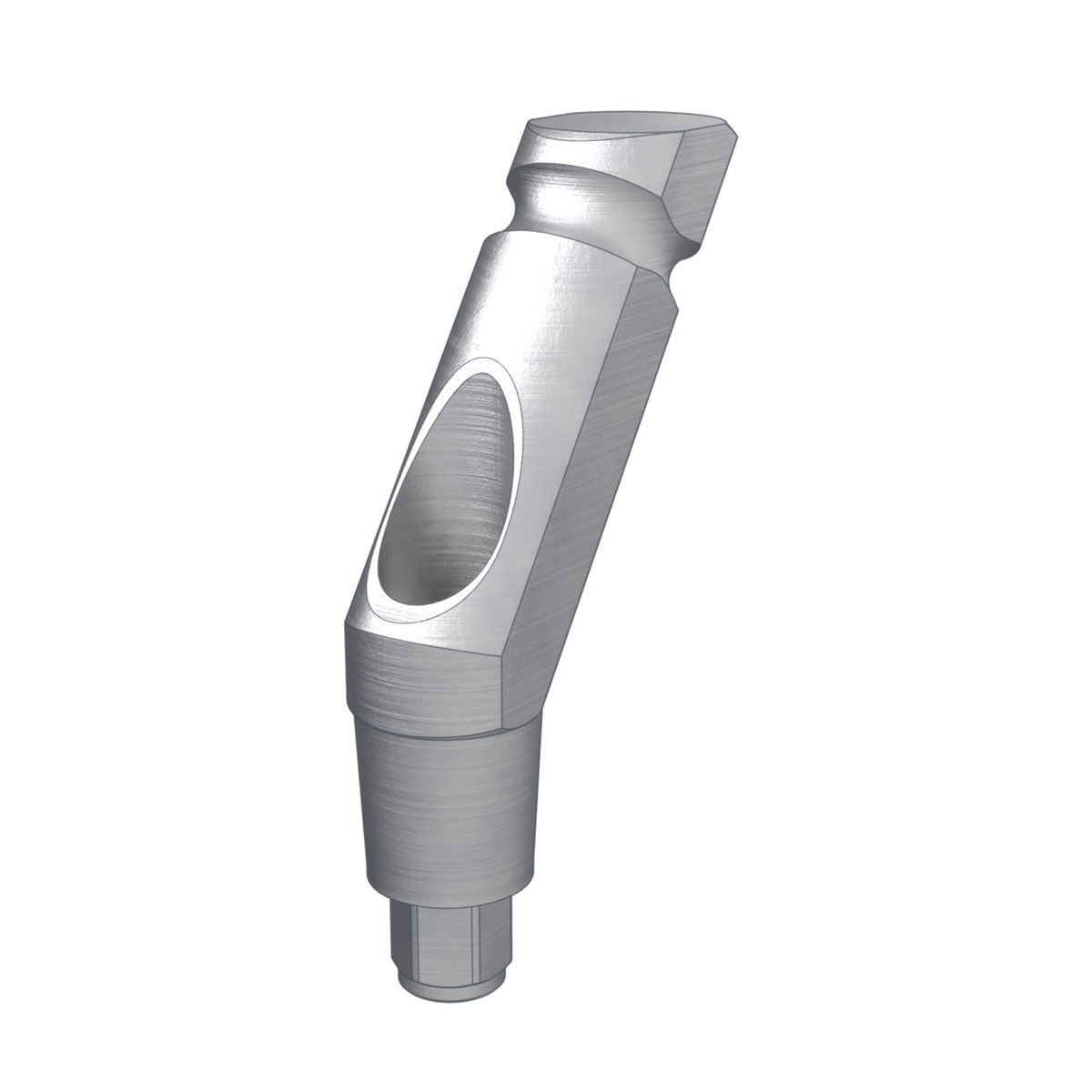

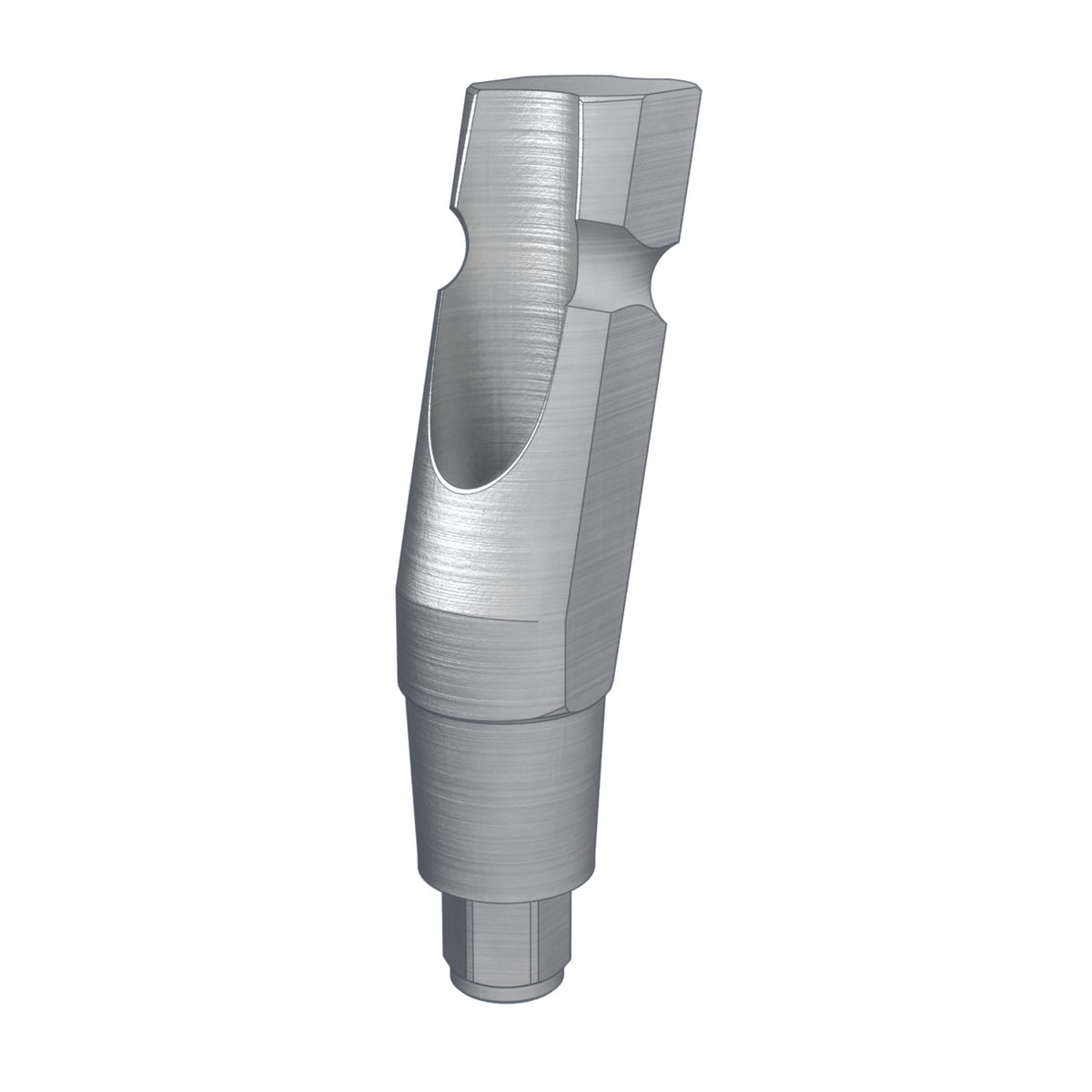

BIONIKA SD, Impression coping for closed tray, angled, type-A

Brand characteristics

The BIONIKA SD implant system is compatible with the BEGO Semados® platform and features a precise conical and hexagonal (Cone & Hex) connection that ensures micromovement-free load transfer and exceptional primary stability.

The 30° conical interface directs forces deep into the implant body, reducing the risk of bone resorption and enhancing long-term stability.

The spirally micro-grooved, self-locking thread structure and cycloidal thread profile facilitate dynamic load distribution and promote rapid osseointegration.

The platform switching design creates a biological seal at the implant shoulder, supporting the natural adaptation of bone and soft tissue.

With its anatomical root-shaped design, self-cutting and self-compressing thread geometry, the SD implant provides excellent primary stability, aesthetic gingival adaptation, and reliable long-term performance.

Geometry characteristics

Impression Coping with Angle Correction and Fixed Orientation for Precise Transfer

The Impression coping for closed tray, angled, type-A is an implant-level component designed for closed tray impression techniques. Its angled geometry allows for angle correction, making it possible to accurately capture the position of implants placed at non-ideal angles. The Type A orientation ensures that the coping consistently locks into the same predefined rotational position on the implant, supporting precise prosthetic alignment.

The Type A system refers to a design where one flat surface of the connecting interface always aligns identically relative to the top part of the coping. This facilitates predictable and reproducible adjustments, particularly important in multiple-implant restorations.

Main Advantages:

• Angled design: Enables angle correction for non-ideal implant positions.
• For closed tray technique: Impression taking without removing the coping from the patient’s mouth.
• Type A positioning: Flat surface of the connector consistently aligned with the top part.
• Implant-level connection: Direct fit to the implant interface.
• Biocompatible metal: Precisely machined, durable, and sterilisable material.

Indications:

The Impression coping for closed tray, angled, type-A is the ideal solution in clinical cases requiring both angle correction and fixed positioning during impression taking, especially in multi-implant configurations.

The product image is for illustration purposes only; colour and geometry may vary depending on selected parameters.
