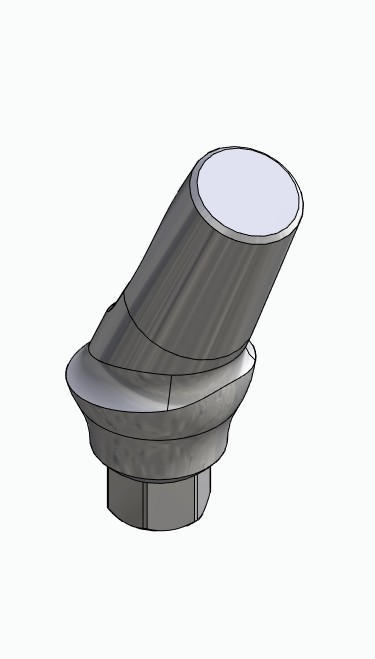

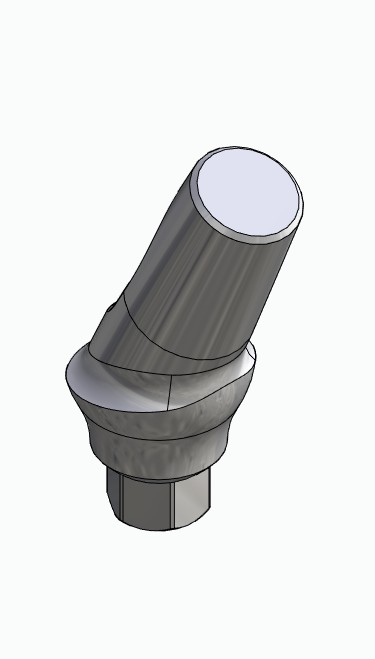

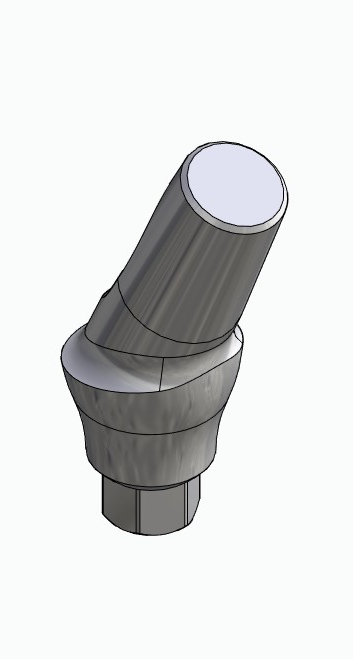

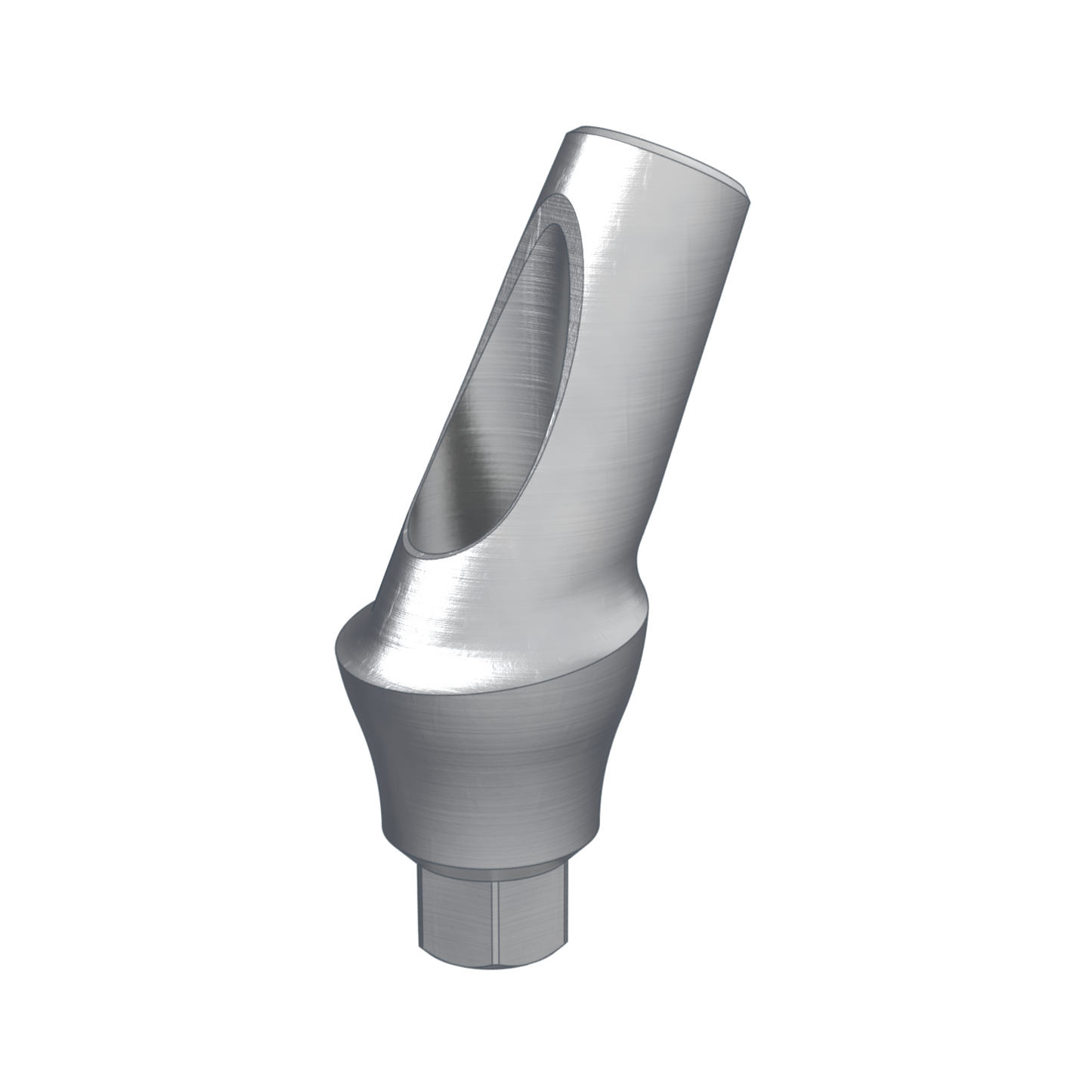

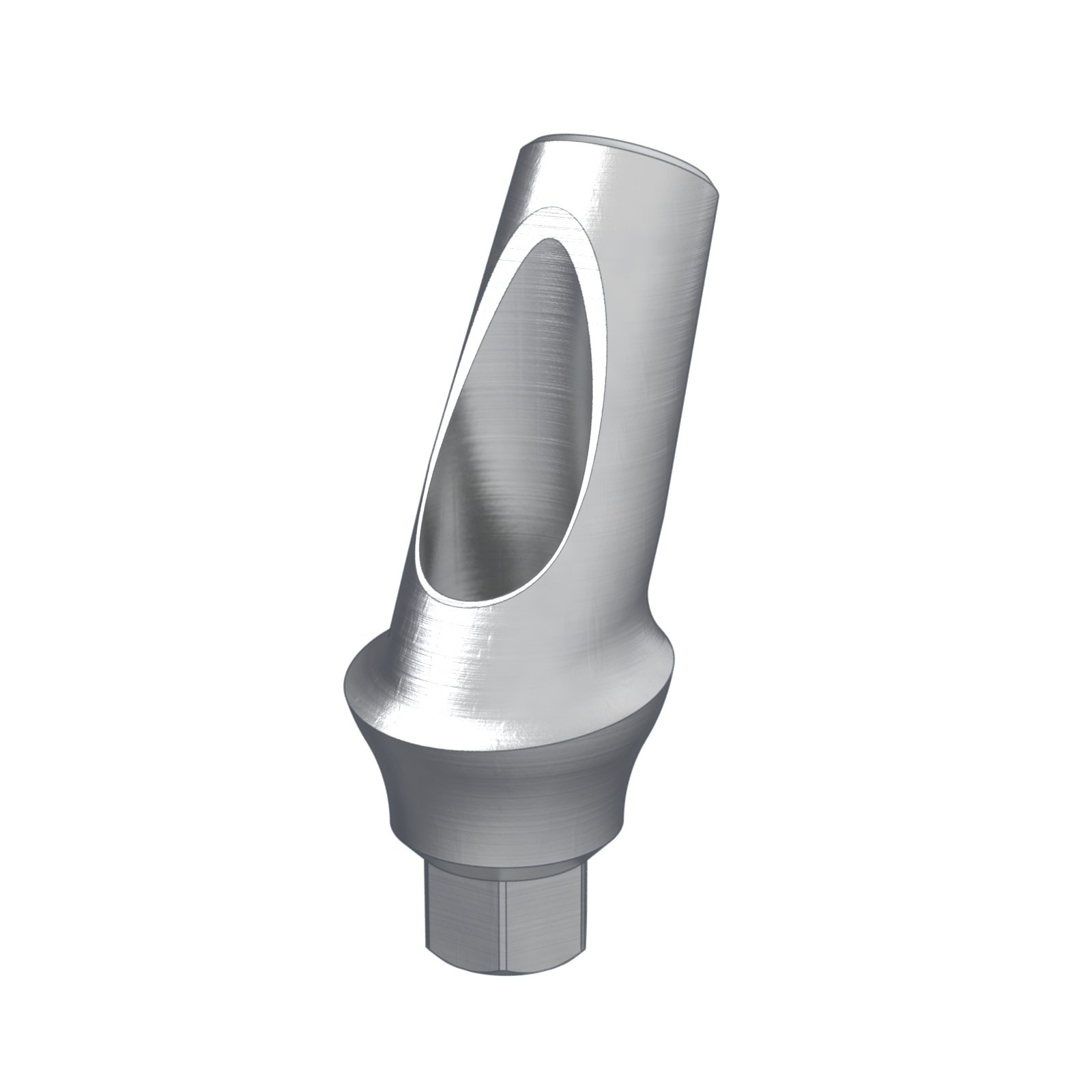

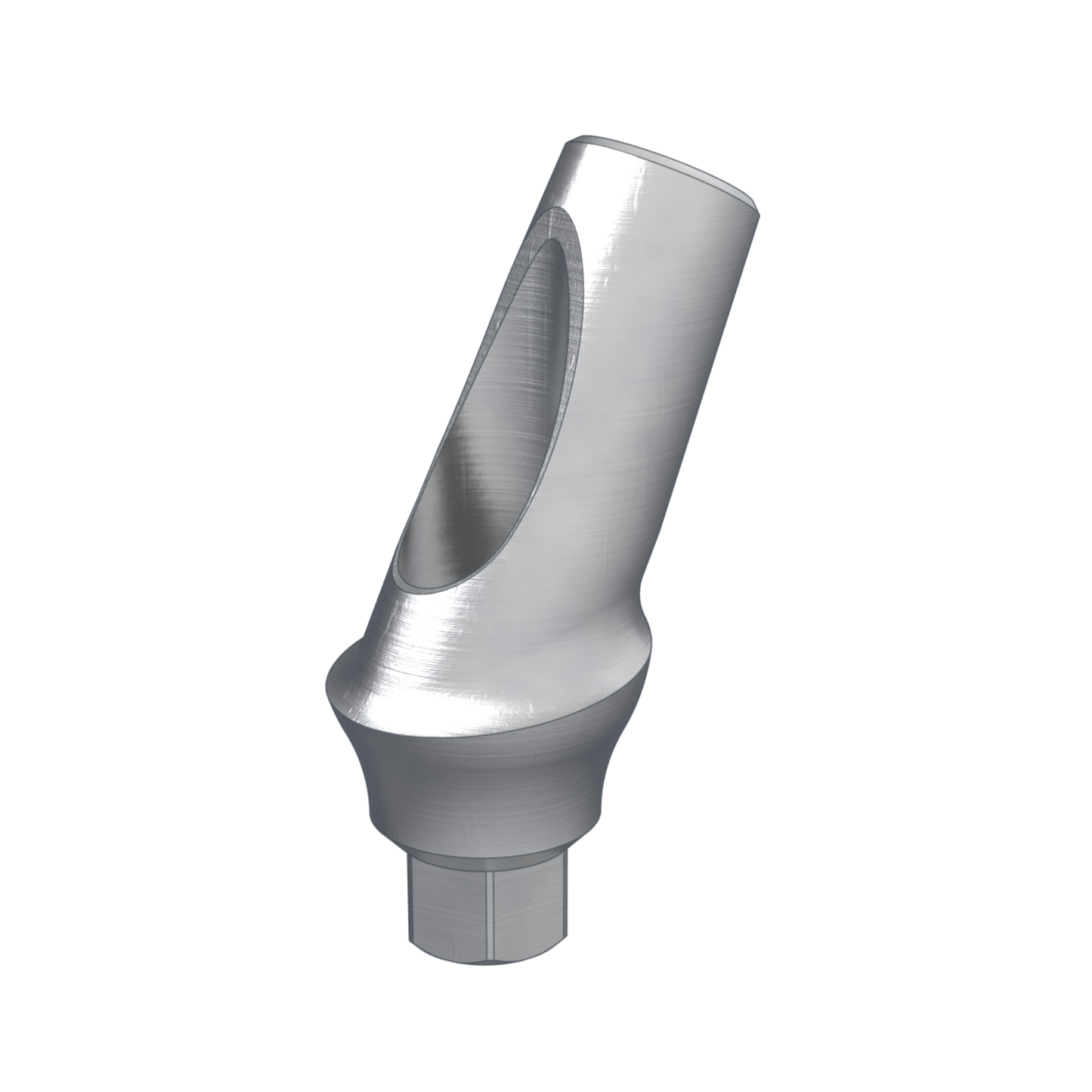

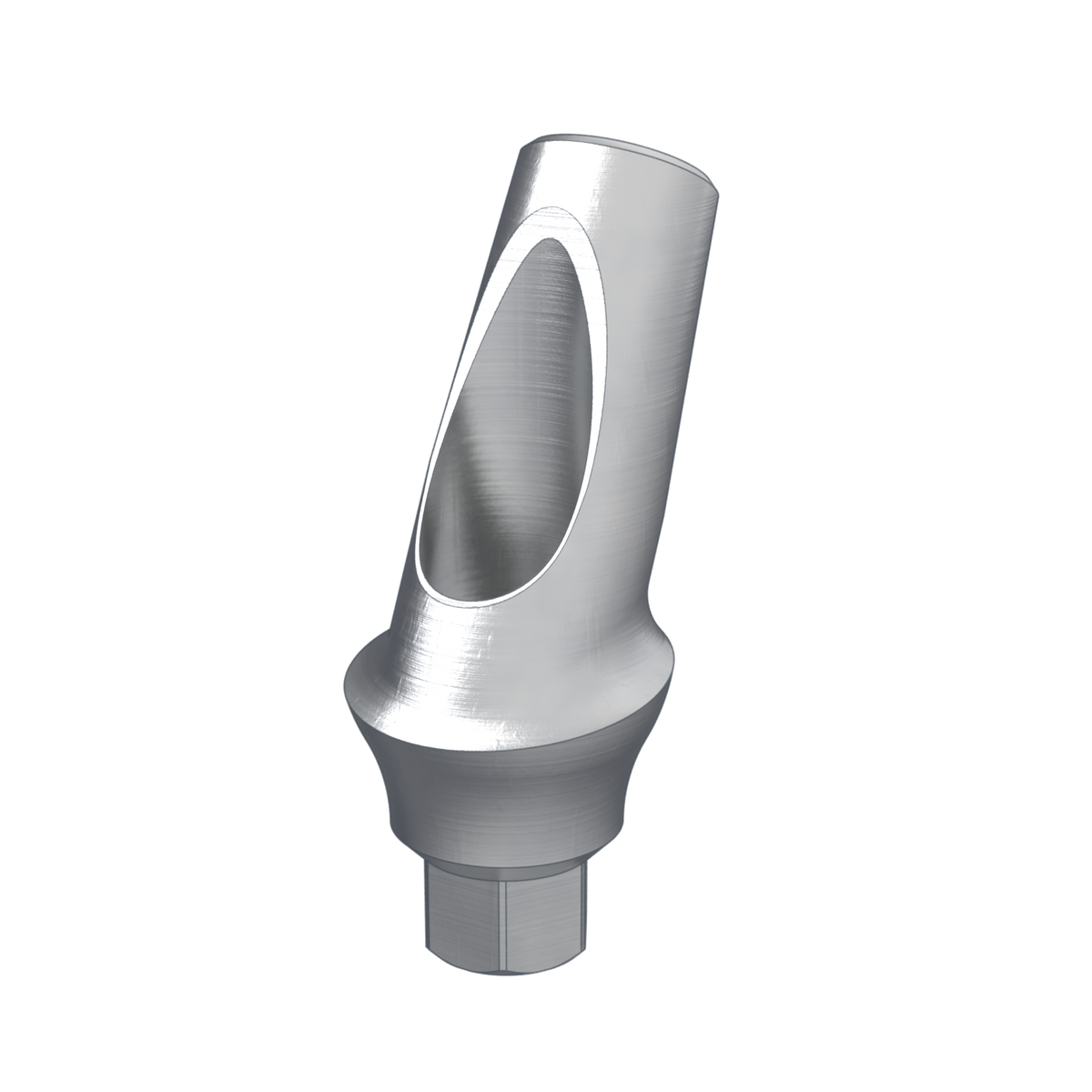

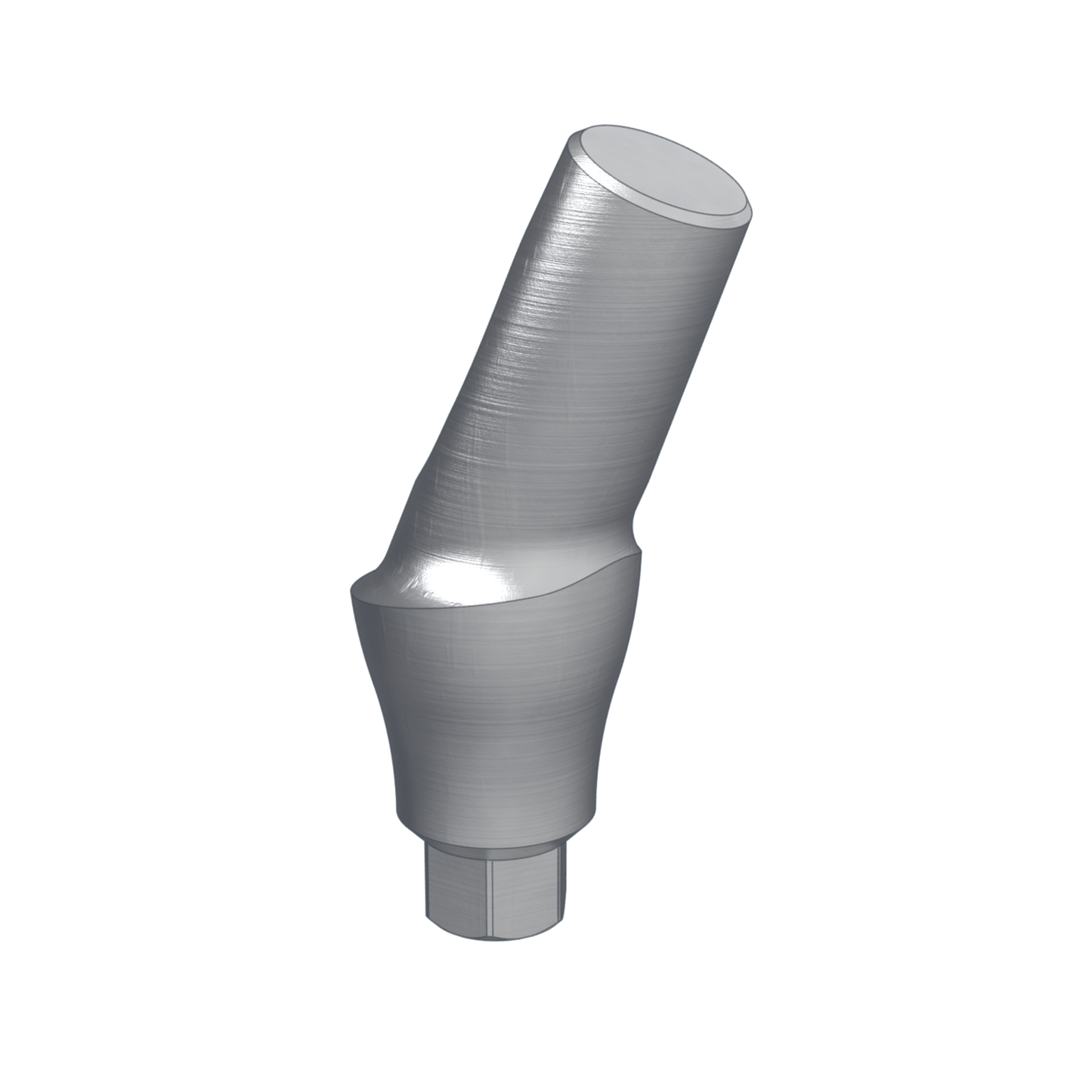

BIONIKA SD, Anatomic abutment, angled, 25°, positioned, type-B

Brand characteristics

The BIONIKA SD implant system is compatible with the BEGO Semados® platform and features a precise conical and hexagonal (Cone & Hex) connection that ensures micromovement-free load transfer and exceptional primary stability.

The 30° conical interface directs forces deep into the implant body, reducing the risk of bone resorption and enhancing long-term stability.

The spirally micro-grooved, self-locking thread structure and cycloidal thread profile facilitate dynamic load distribution and promote rapid osseointegration.

The platform switching design creates a biological seal at the implant shoulder, supporting the natural adaptation of bone and soft tissue.

With its anatomical root-shaped design, self-cutting and self-compressing thread geometry, the SD implant provides excellent primary stability, aesthetic gingival adaptation, and reliable long-term performance.

Geometry characteristics

Customisable Abutment for Significant Angle Correction with Natural Contours and Precise Orientation

The Anatomic abutment, angled, 25°, positioned, type-B is an implant-level, customisable (grindable) abutment designed for use in cases involving greater implant angulation. The 25° inclination enables the correction of substantial deviations between the implant and prosthetic axes, while the anatomical form supports the creation of a natural gingival profile and aesthetic appearance.

The Type B indexing means that a defined point on the connection surface is always oriented in the same direction relative to the top of the abutment. This precise orientation allows the abutment to be repositioned accurately every time, which is crucial for the coordinated and functionally reliable construction of multi-implant restorations.

Main Advantages:

• 25° angle correction: Compensates for significant implant axis deviations.
• Anatomical design: Preformed geometry supports natural soft tissue contouring and appearance.
• Indexed orientation (Type B): Defined apex ensures accurate repositioning every time.
• Customisable form: Suitable for individual adjustment in clinical and laboratory settings.
• Implant-level connection: Stable and direct fit to the implant.
• Biocompatible titanium: Sterilisable, durable, and suitable for long-term clinical application.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-B is the ideal choice in situations where the implant axis significantly deviates from the prosthetic axis, and precise orientation is required for both functional reliability and aesthetic results.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
