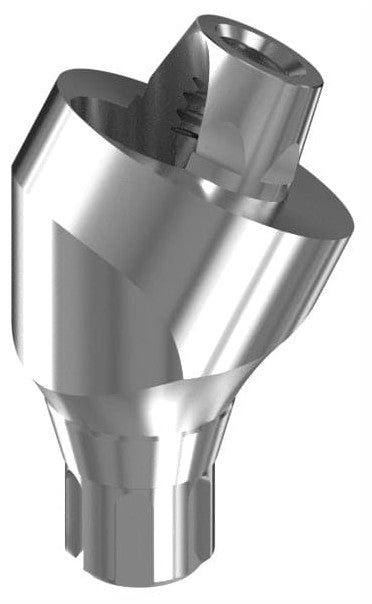

BIONIKA SCANDREA, Multi-unit abutment, angled, positioned, wide, LT2.7, type-A

Brand characteristics

The BIONIKA Scandrea implant system utilises advanced Conical-Connection technology, providing precise fitting and micromovement-free force transmission.

The load distribution is directed deep into the implant body, reducing stress on the cortical bone and enhancing long-term stability.

Thanks to its platform-switching design, the bone can naturally grow over the implant shoulder, while the soft tissue forms a biological seal over the interface.

The spirally micro-grooved, self-locking thread structure combined with a cycloidal thread profile ensures efficient dissipation of dynamic forces and promotes rapid osseointegration.

Its anatomical root-shaped form, high-pitch self-cutting thread, and rounded apex enable excellent primary stability, precise placement, and suitability for immediate loading.

The Scandrea system embodies the perfect balance of precision, biocompatibility, and aesthetic functionality in modern implantology.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Wide Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2.7, type-A is a prosthetic abutment designed for connection to an implant or intermediate multi-unit base. Developed specifically for screw-retained restorations, the angled design allows correction of the divergence between the implant axis and the final restoration axis, while the wide profile offers enhanced support for soft tissues and prosthetics, especially in posterior regions.

The Type A position-oriented interface ensures that a defined flat surface of the connection consistently aligns with the same position relative to the top of the abutment during each reinsertion. This precise orientation supports optimal alignment of prosthetic components, which is especially important in multi-implant bridges and full-arch restorations.

The M1.6 internal thread at the top allows secure attachment of final prosthetic components such as bridge frameworks or screw-retained restorations. The lower part connects to the LT2.7 platform with a non-screw-based friction-fit geometry.

Main Advantages:

• Angular correction: Allows compensation for implant axis misalignment.
• Type A orientation: The flat surface of the connection always aligns to the same position.
• Wide design: Provides additional support for restorations in posterior zones.
• LT2.7 compatibility: Fully integrated with the appropriate system platform.
• M1.6 internal thread: Enables secure fixation of prosthetic components.
• Biocompatible titanium: Safe, sterilizable, and tissue-friendly material for long-term use.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2.7, type-A is an ideal solution for screw-retained restorations supported by multiple implants, particularly when angular correction, increased stability, and precise orientation are required in full compatibility with the LT2.7 system.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
