BIONIKA RP, Multi-unit abutment, angled, positioned, wide, LT2, type-B

Brand characteristics

The BIONIKA RP implant system is compatible with the Nobel® Replace Select® platform and features an internal conical connection (Conical-Connection) with precise hexagonal positioning, ensuring a stable, micromovement-free fit.

The implant’s anatomical, root-shaped, tapered body design facilitates insertion and enhances bone compression, achieving high primary stability even in softer bone conditions. The spirally micro-grooved, self-locking thread structure supports the dissipation of dynamic forces and promotes rapid osseointegration.

The platform switching concept preserves bone levels and supports long-term soft tissue stability, providing an aesthetically pleasing outcome. The BIONIKA RP system offers a modern and reliable solution for professionals working with the Nobel Replace Select system who seek precise fitting and excellent biomechanical performance.

Geometry characteristics

Angled Multi-Unit Abutment with Type B Orientation for LT2 System, Wide Design, M1.4 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is a prosthetic abutment designed for connection to implants or intermediate multi-unit bases, offering angular correction in cases where implant axes are not ideally aligned. Its wide profile enhances support for soft tissues and final restorations, particularly in the posterior region.

The Type B position-oriented design ensures that a specific apex of the connection interface always aligns in the same orientation relative to the top of the abutment. This precise orientation is essential for screw-retained restorations involving multiple implants, where alignment of contours, axes, and margins is critical to both aesthetic and functional outcomes.

The abutment features an M1.4 internal thread at the top, used to secure final prosthetic components such as suprastructures or bridge frameworks. The lower portion connects to the LT2 multi-unit platform without the need for a screw, ensuring a stable, geometry-based fit.

Main Advantages:

• Angular correction: Compensates for suboptimal implant angulations.
• Position-oriented design (Type B): A specific apex consistently aligns upon reinsertion.
• Wide profile: Provides greater support and stability for restorations in posterior zones.
• LT2 compatibility: Fully integrates with the corresponding multi-unit platform.
• M1.4 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Long-term durability, tissue-friendly, and sterilizable material.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is an excellent solution for screw-retained restorations on multiple implants, where angular correction, stable support, precise orientation, and full compatibility with the LT2 system are required.

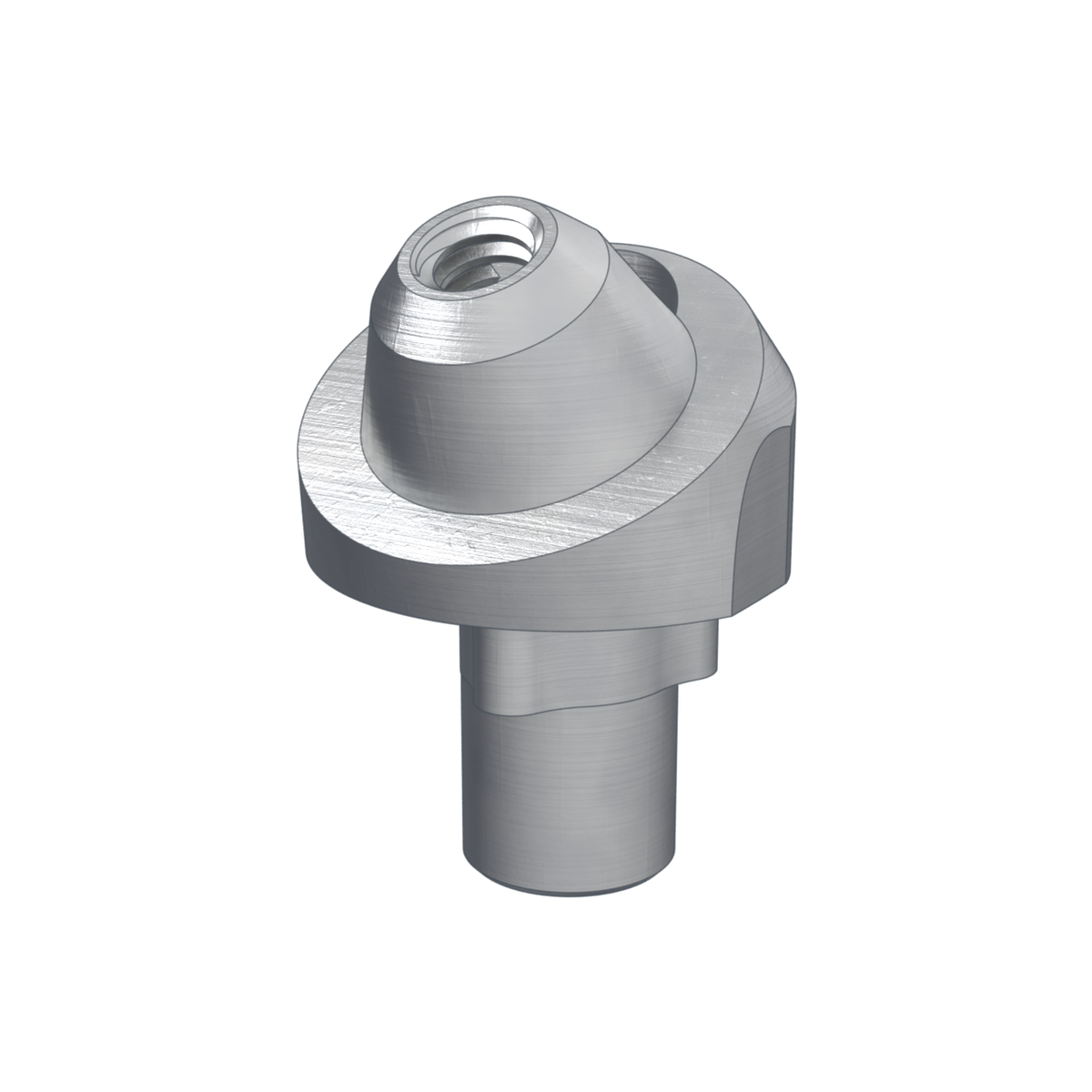

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
