BIONIKA ND, Anatomic abutment, angled, 35°, positioned, type-B

Brand characteristics

The BIONIKA ND implant system is compatible with the NEODENT® GM® platform and features a modern internal conical connection (Conical-Connection) that ensures a stable, micromovement-free, and bacteria-tight fit. The internal taper optimises load transfer, while the deep-seated connection enhances bone-level preservation and supports soft tissue stabilisation.

The spirally micro-grooved, self-compressing thread design provides excellent primary stability even in low bone density conditions. Its anatomical root-shaped body and self-cutting thread geometry enable gentle insertion and promote rapid osseointegration.

The BIONIKA ND system is an ideal choice for immediate implantation and loading, particularly in clinical cases where precise fitting and long-term tissue preservation are essential.

Geometry characteristics

Customisable Abutment for Advanced Angle Correction with Precise Orientation and Natural Contours

The Anatomic abutment, angled, 35°, positioned, type-B is an implant-level, customisable (grindable) abutment offering an excellent solution for cases where the implant inclination significantly deviates from the desired prosthetic axis. The 35° angulation allows for the correction of non-ideal implant positioning, while the anatomical shape helps to create a natural gingival contour and aesthetic outcome.

The Type B indexing ensures that a specific apex of the connection surface is always aligned in the same direction relative to the top of the abutment. This fixed orientation allows the abutment to return to the exact same position every time, which is critical in multi-implant restorations for achieving a precise fit and consistent aesthetic appearance.

Main Advantages:

• 35° angle correction: Ideal for compensating significant axial deviations.
• Anatomical design: Preformed shape for natural appearance and soft tissue support.
• Indexed orientation (Type B): Fixed apex ensures consistent and accurate repositioning.
• Customisable form: Can be individually shaped in both clinical and laboratory settings.
• Implant-level fit: Stable and reliable connection to the implant.
• Biocompatible titanium: Sterilisable and safe for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-B is the ideal choice for cases with pronounced angulation where precise repositioning and natural contouring are essential—such as multi-implant restorations in the aesthetic zone.

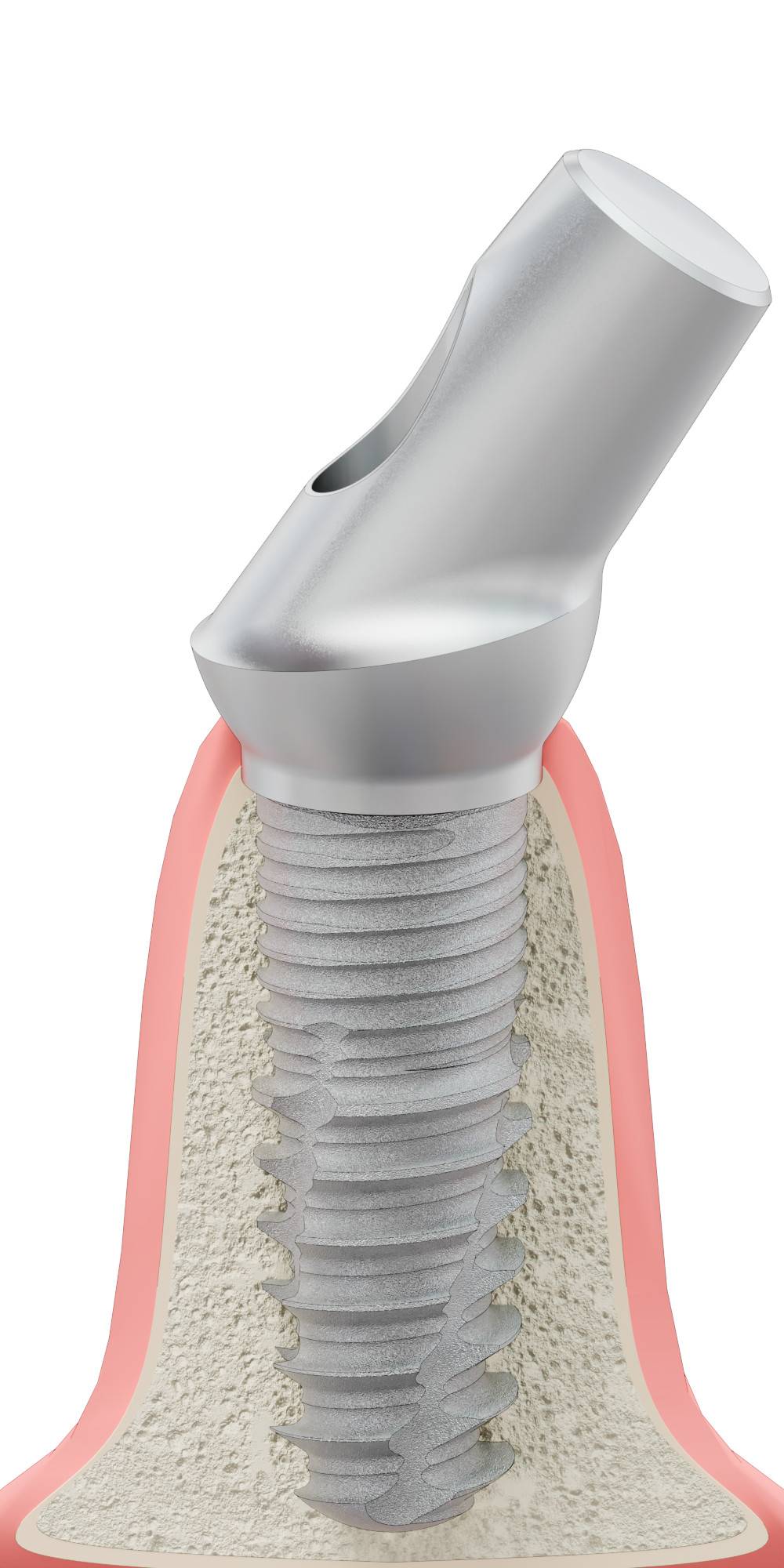

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
