BIONIKA MO, Narrow abutment, angled, positioned, type-A

Brand characteristics

The BIONIKA MO implant system is compatible with the MEGAGEN® AnyOne® platform and features an internal conical connection (Conical-Connection) that ensures micromovement-free load transfer and excellent primary stability.

The precise fit of the 11° Morse taper minimises microgaps, thereby enhancing bone and soft tissue integration and reducing the risk of bacterial leakage.

Its spirally micro-grooved, self-compressing thread design optimises load distribution and provides high stability even in softer bone conditions.

The anatomical root-shaped body, combined with self-cutting and bone-condensing threads, allows for fast and secure insertion.

The BIONIKA MO system is an ideal choice for immediate implantation and loading cases, where functionality, bone preservation, and aesthetic outcomes are equally essential.

Geometry characteristics

Narrow Angled Abutment for Constrained Spaces with Indexed Orientation

The Narrow abutment, angled, positioned, type-A is an implant-level restoration component specifically designed for cases requiring angulation correction in narrow interproximal spaces. Its slim profile is ideal for limited space within the dental arch, while the angled configuration allows for the compensation of suboptimally placed implants.

The Type A indexed connection ensures that one specific flat surface of the abutment interface always aligns with the same orientation relative to the top of the abutment. This guarantees fixed rotational positioning, which is essential in multi-implant cases—especially when combined with angled abutments. Accurate repositioning enhances the alignment of prosthetic components and contributes to a harmonious soft tissue profile.

Main Advantages:

• Slender design: Ideal for narrow interdental spaces and limited gingival height.
• Angled correction: Optimises prosthetic axis by compensating for implant misalignment.
• Indexed connection (Type A): Ensures consistent orientation—flat face always in the same position.
• Implant-level fit: Direct, stable connection to the implant body.
• Biocompatible titanium: Safe, sterilizable, and durable for long-term clinical use.
• The product includes the screw.

Application Area:

The Narrow abutment, angled, positioned, type-A is an excellent solution for anterior regions or tightly spaced implant sites, especially where angular correction and precise prosthetic alignment are required during treatment planning.

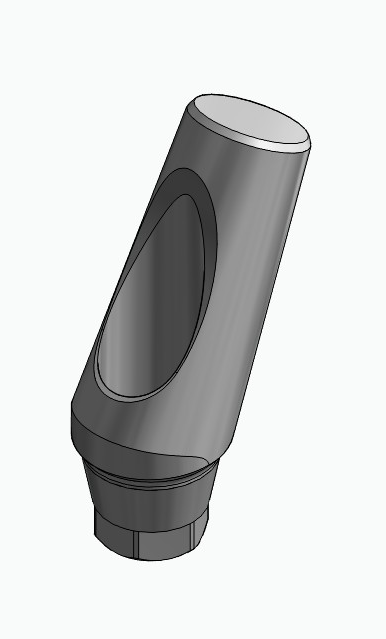

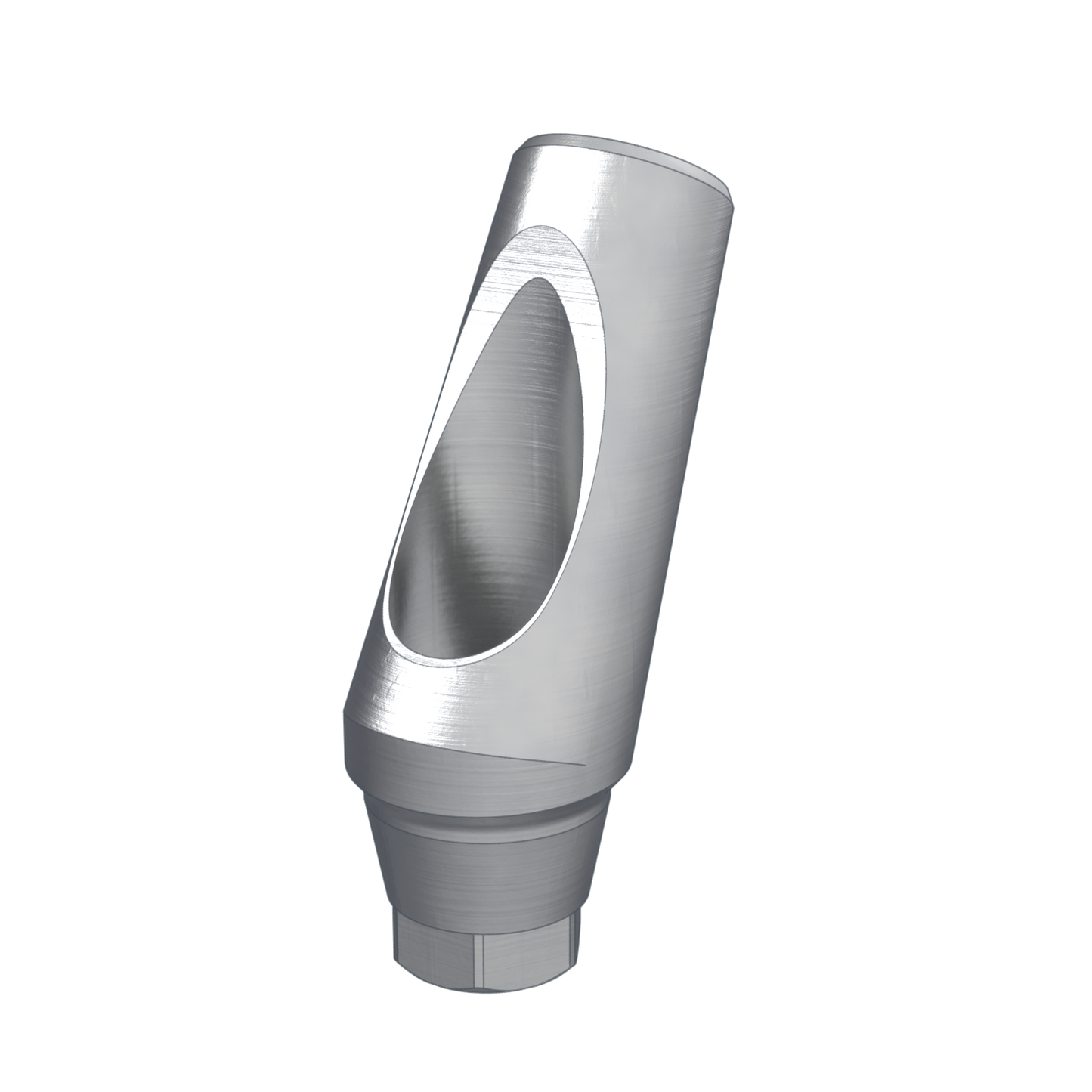

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
