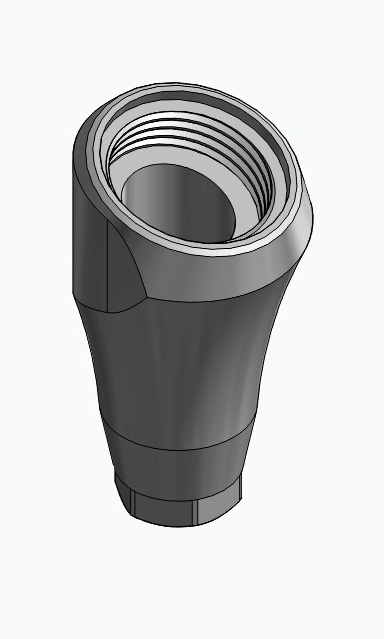

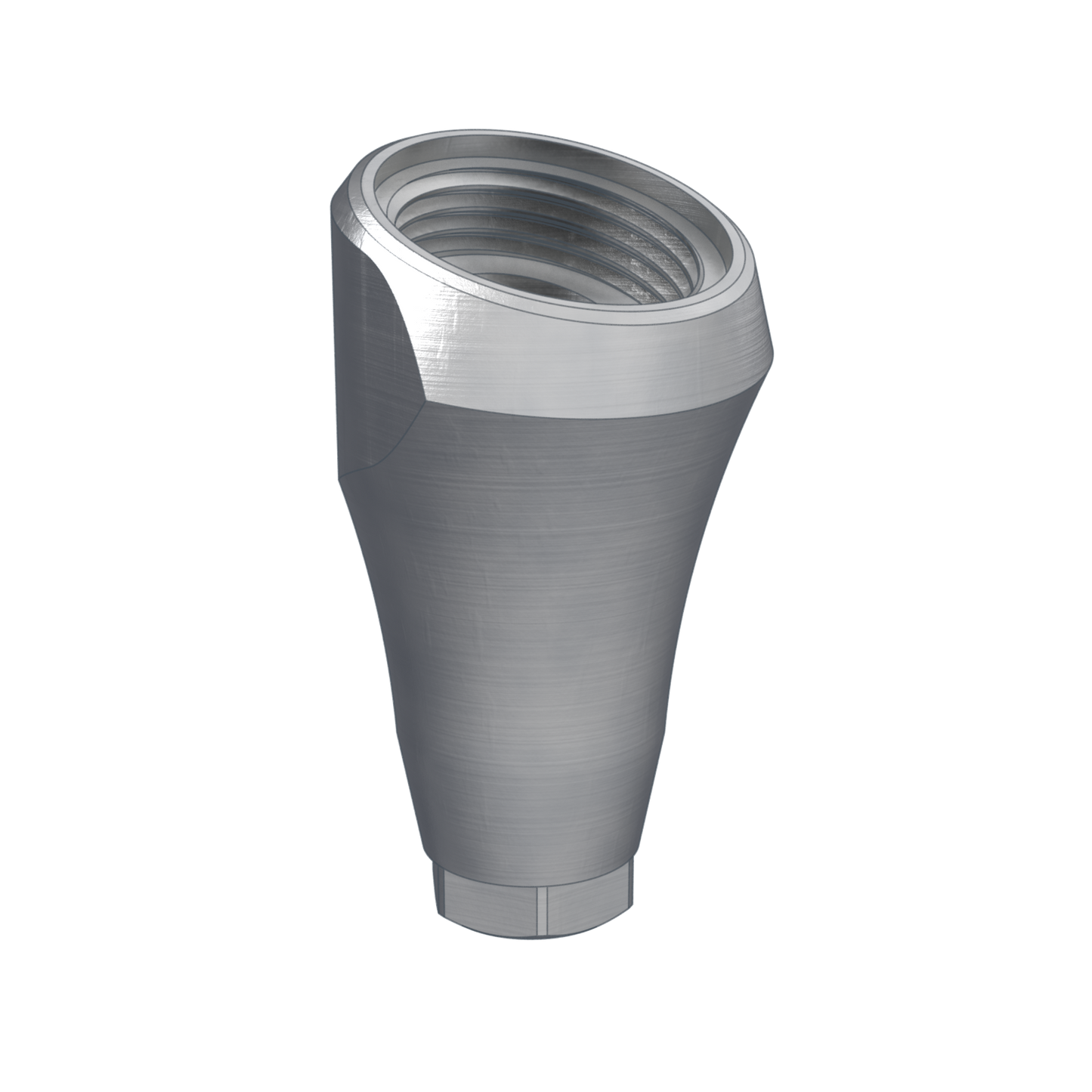

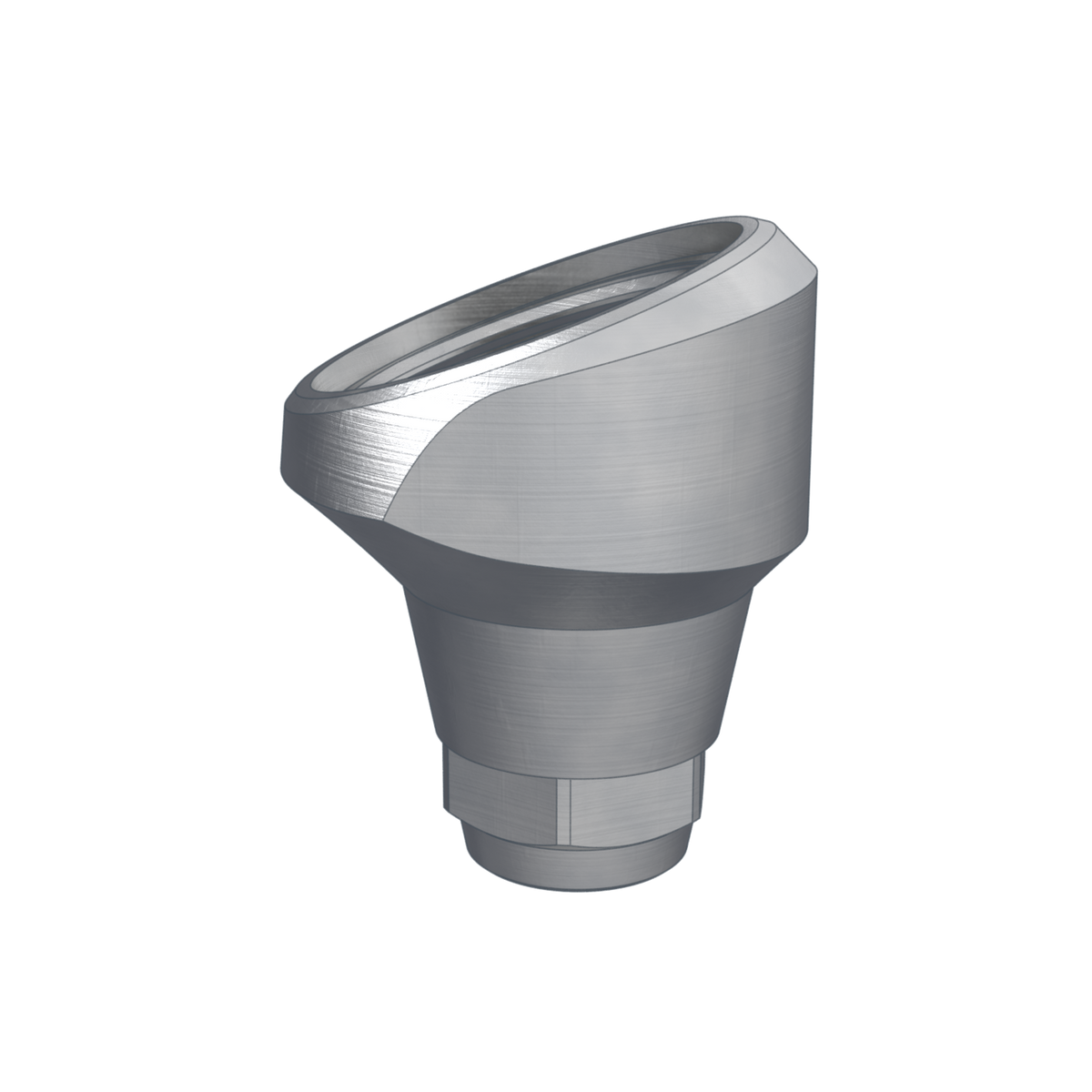

BIONIKA MO, Multi-Compact abutment, positioned, type-A

Brand characteristics

The BIONIKA MO implant system is compatible with the MEGAGEN® AnyOne® platform and features an internal conical connection (Conical-Connection) that ensures micromovement-free load transfer and excellent primary stability.

The precise fit of the 11° Morse taper minimises microgaps, thereby enhancing bone and soft tissue integration and reducing the risk of bacterial leakage.

Its spirally micro-grooved, self-compressing thread design optimises load distribution and provides high stability even in softer bone conditions.

The anatomical root-shaped body, combined with self-cutting and bone-condensing threads, allows for fast and secure insertion.

The BIONIKA MO system is an ideal choice for immediate implantation and loading cases, where functionality, bone preservation, and aesthetic outcomes are equally essential.

Geometry characteristics

Positioned Type A Multi-Compact Base with Replaceable Prosthetic Components

The Multi-Compact abutment, positioned, type-A is a specially engineered multi-component prosthetic abutment designed to function similarly to angled multi-unit abutments, but with enhanced versatility. The base features an internally threaded design that allows the connection of various prosthetic tops with different shapes and functions, enabling multiple restorative solutions to be used with a single base type.

The positioned Type A variant ensures that a designated flat surface on the connection interface always aligns in the same orientation upon reinsertion. This precise rotational positioning is particularly important in restorations involving multiple implants, where accurate fit and aesthetic symmetry are critical.

One of the key advantages of the Multi-Compact system is that the base can remain fixed while the top components can be freely selected or replaced according to specific clinical or prosthetic needs. This significantly simplifies inventory management and increases the flexibility of the system.

Main Advantages:

• Internally threaded base: Allows secure connection with a range of prosthetic tops.
• Positioned Type A interface: Consistent orientation of the flat surface upon reinsertion.
• System flexibility: One base accommodates multiple clinical configurations.
• Stable, low-profile design: Reliable foundation for screw-retained restorations.
• Biocompatible titanium: Durable, tissue-friendly, and sterilizable medical-grade material.
• Includes fixation screw.

Indications:

The Multi-Compact abutment, positioned, type-A is an ideal choice for screw-retained restorations supported by multiple implants, where precise orientation, low profile, and prosthetic versatility are essential. The interchangeable top components make the system easily adaptable to changing clinical demands.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
