BIONIKA MO, Anatomic abutment, angled, 35°, positioned, type-B

Brand characteristics

The BIONIKA MO implant system is compatible with the MEGAGEN® AnyOne® platform and features an internal conical connection (Conical-Connection) that ensures micromovement-free load transfer and excellent primary stability.

The precise fit of the 11° Morse taper minimises microgaps, thereby enhancing bone and soft tissue integration and reducing the risk of bacterial leakage.

Its spirally micro-grooved, self-compressing thread design optimises load distribution and provides high stability even in softer bone conditions.

The anatomical root-shaped body, combined with self-cutting and bone-condensing threads, allows for fast and secure insertion.

The BIONIKA MO system is an ideal choice for immediate implantation and loading cases, where functionality, bone preservation, and aesthetic outcomes are equally essential.

Geometry characteristics

Customisable Abutment for Advanced Angle Correction with Precise Orientation and Natural Contours

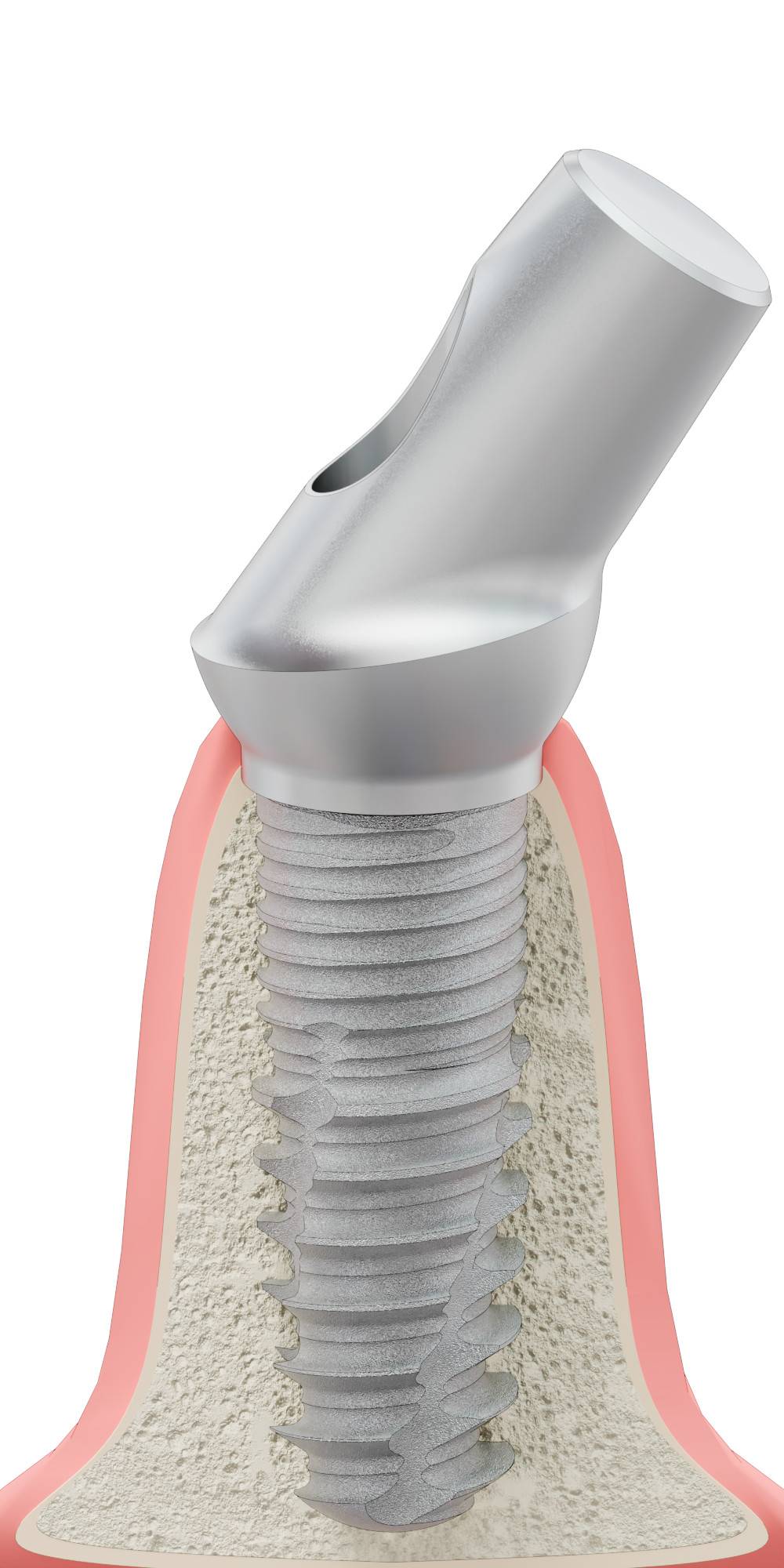

The Anatomic abutment, angled, 35°, positioned, type-B is an implant-level, customisable (grindable) abutment offering an excellent solution for cases where the implant inclination significantly deviates from the desired prosthetic axis. The 35° angulation allows for the correction of non-ideal implant positioning, while the anatomical shape helps to create a natural gingival contour and aesthetic outcome.

The Type B indexing ensures that a specific apex of the connection surface is always aligned in the same direction relative to the top of the abutment. This fixed orientation allows the abutment to return to the exact same position every time, which is critical in multi-implant restorations for achieving a precise fit and consistent aesthetic appearance.

Main Advantages:

• 35° angle correction: Ideal for compensating significant axial deviations.
• Anatomical design: Preformed shape for natural appearance and soft tissue support.
• Indexed orientation (Type B): Fixed apex ensures consistent and accurate repositioning.
• Customisable form: Can be individually shaped in both clinical and laboratory settings.
• Implant-level fit: Stable and reliable connection to the implant.
• Biocompatible titanium: Sterilisable and safe for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-B is the ideal choice for cases with pronounced angulation where precise repositioning and natural contouring are essential—such as multi-implant restorations in the aesthetic zone.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
