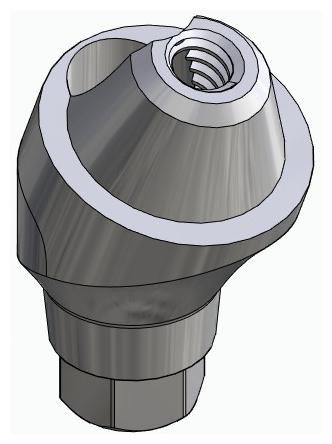

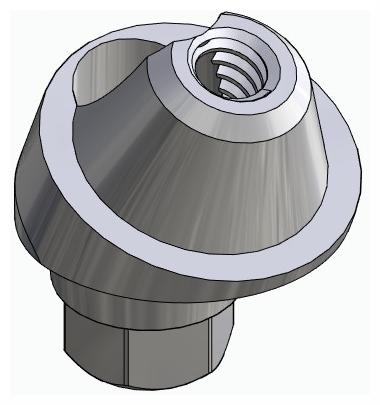

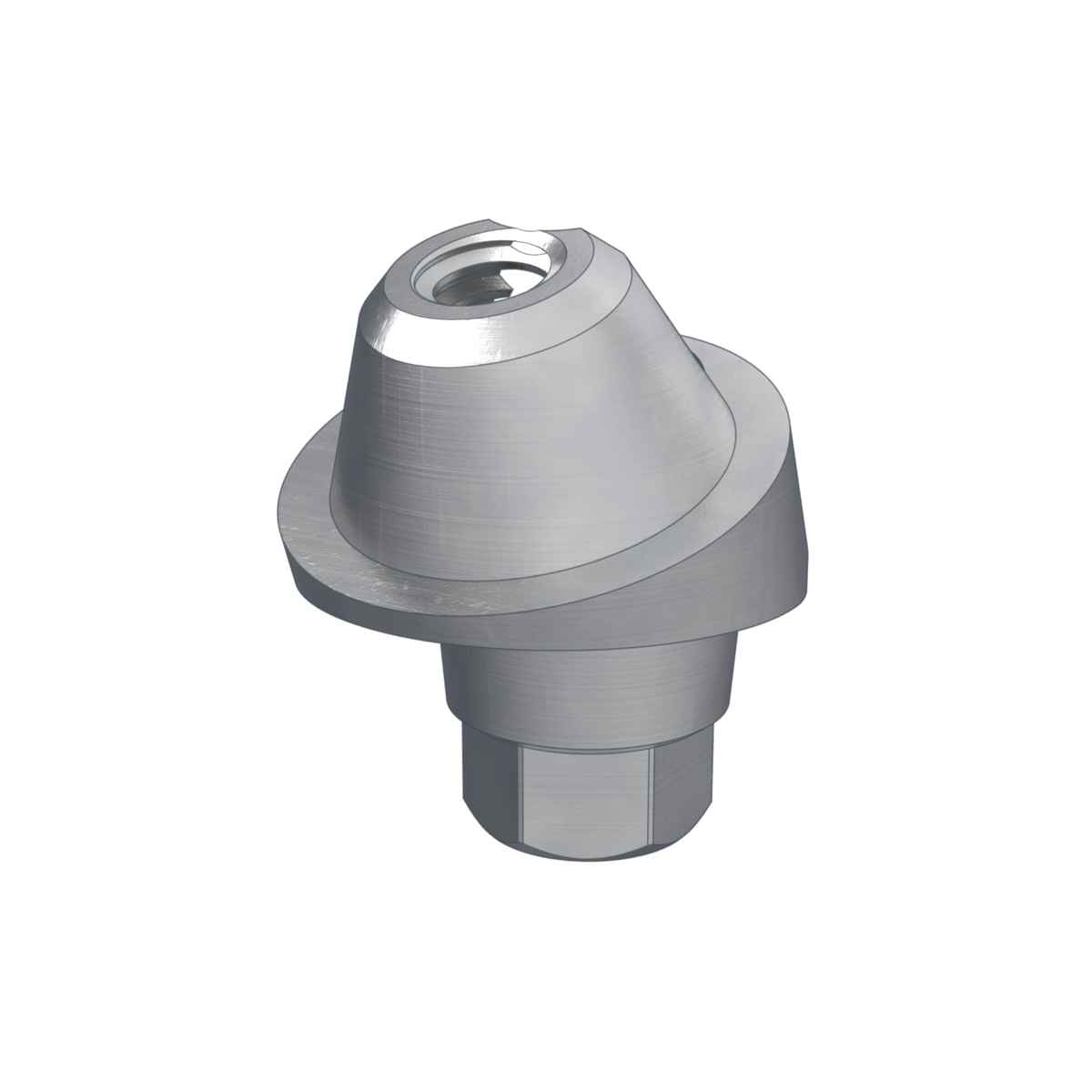

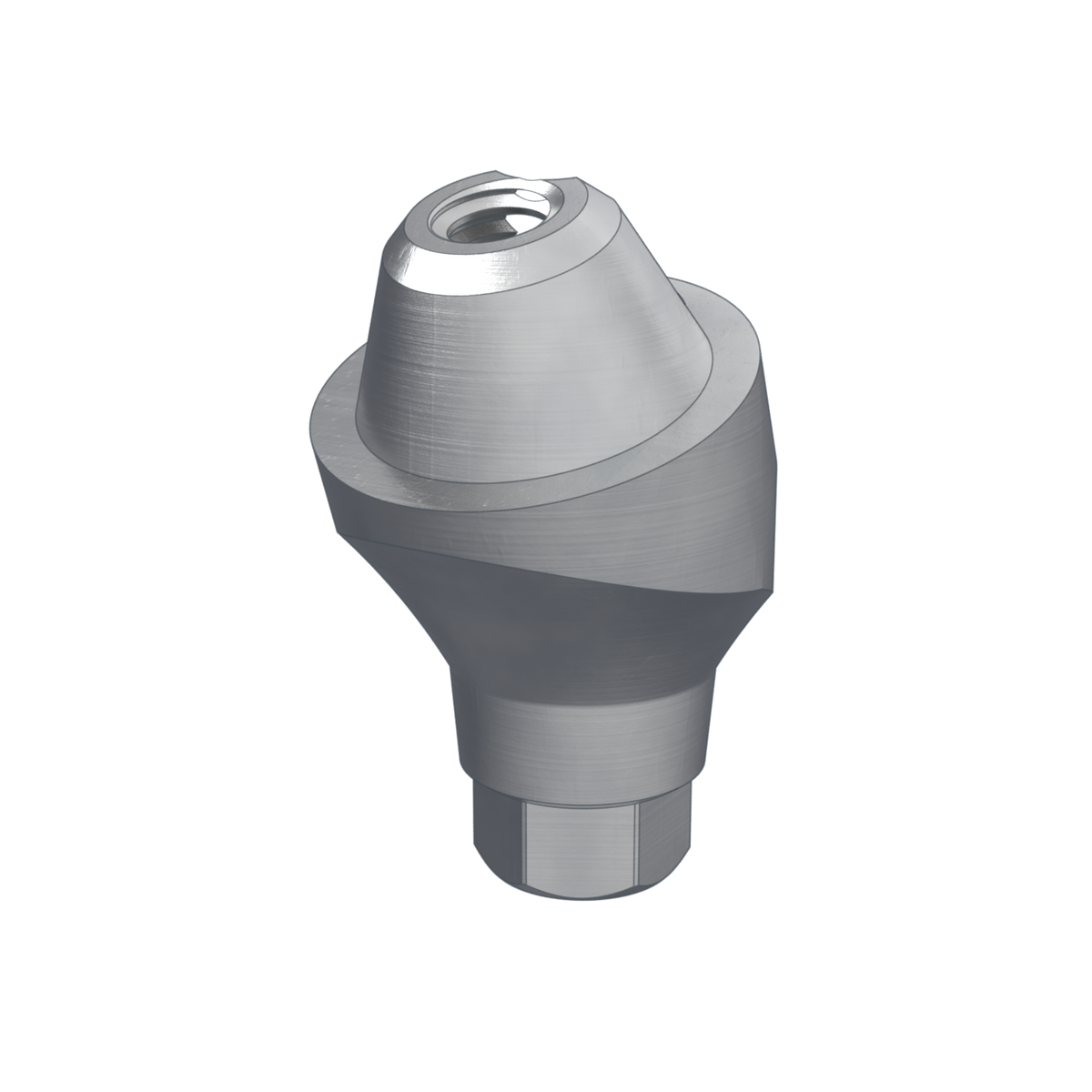

BIONIKA MG, Multi-unit abutment, angled, positioned, wide, LT2, type-B

Brand characteristics

The BIONIKA MG implant system is compatible with the MEGAGEN® AnyRidge® platform and utilises an advanced conical connection (Conical-Connection) that ensures micromovement-free load transfer and long-term stability.

Its unique, deeply grooved, self-compressing thread geometry provides exceptional primary stability even in low bone density conditions.

The platform switching design allows soft tissues to naturally adapt and seal around the implant shoulder, promoting biological closure and bone preservation.

The anatomical root-shaped body, combined with self-cutting and self-locking threads, ensures gentle insertion and rapid osseointegration.

The BIONIKA MG system is an outstanding choice for aesthetic-zone restorations and immediate loading procedures, where precision, stability, and tissue preservation are of utmost importance.

Geometry characteristics

Angled Multi-Unit Abutment with Type B Orientation for LT2 System, Wide Design, M1.4 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is a prosthetic abutment designed for connection to implants or intermediate multi-unit bases, offering angular correction in cases where implant axes are not ideally aligned. Its wide profile enhances support for soft tissues and final restorations, particularly in the posterior region.

The Type B position-oriented design ensures that a specific apex of the connection interface always aligns in the same orientation relative to the top of the abutment. This precise orientation is essential for screw-retained restorations involving multiple implants, where alignment of contours, axes, and margins is critical to both aesthetic and functional outcomes.

The abutment features an M1.4 internal thread at the top, used to secure final prosthetic components such as suprastructures or bridge frameworks. The lower portion connects to the LT2 multi-unit platform without the need for a screw, ensuring a stable, geometry-based fit.

Main Advantages:

• Angular correction: Compensates for suboptimal implant angulations.
• Position-oriented design (Type B): A specific apex consistently aligns upon reinsertion.
• Wide profile: Provides greater support and stability for restorations in posterior zones.
• LT2 compatibility: Fully integrates with the corresponding multi-unit platform.
• M1.4 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Long-term durability, tissue-friendly, and sterilizable material.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is an excellent solution for screw-retained restorations on multiple implants, where angular correction, stable support, precise orientation, and full compatibility with the LT2 system are required.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
