BIONIKA MG, Anatomic abutment, angled, 35°, positioned, type-B

Brand characteristics

The BIONIKA MG implant system is compatible with the MEGAGEN® AnyRidge® platform and utilises an advanced conical connection (Conical-Connection) that ensures micromovement-free load transfer and long-term stability.

Its unique, deeply grooved, self-compressing thread geometry provides exceptional primary stability even in low bone density conditions.

The platform switching design allows soft tissues to naturally adapt and seal around the implant shoulder, promoting biological closure and bone preservation.

The anatomical root-shaped body, combined with self-cutting and self-locking threads, ensures gentle insertion and rapid osseointegration.

The BIONIKA MG system is an outstanding choice for aesthetic-zone restorations and immediate loading procedures, where precision, stability, and tissue preservation are of utmost importance.

Geometry characteristics

Customisable Abutment for Advanced Angle Correction with Precise Orientation and Natural Contours

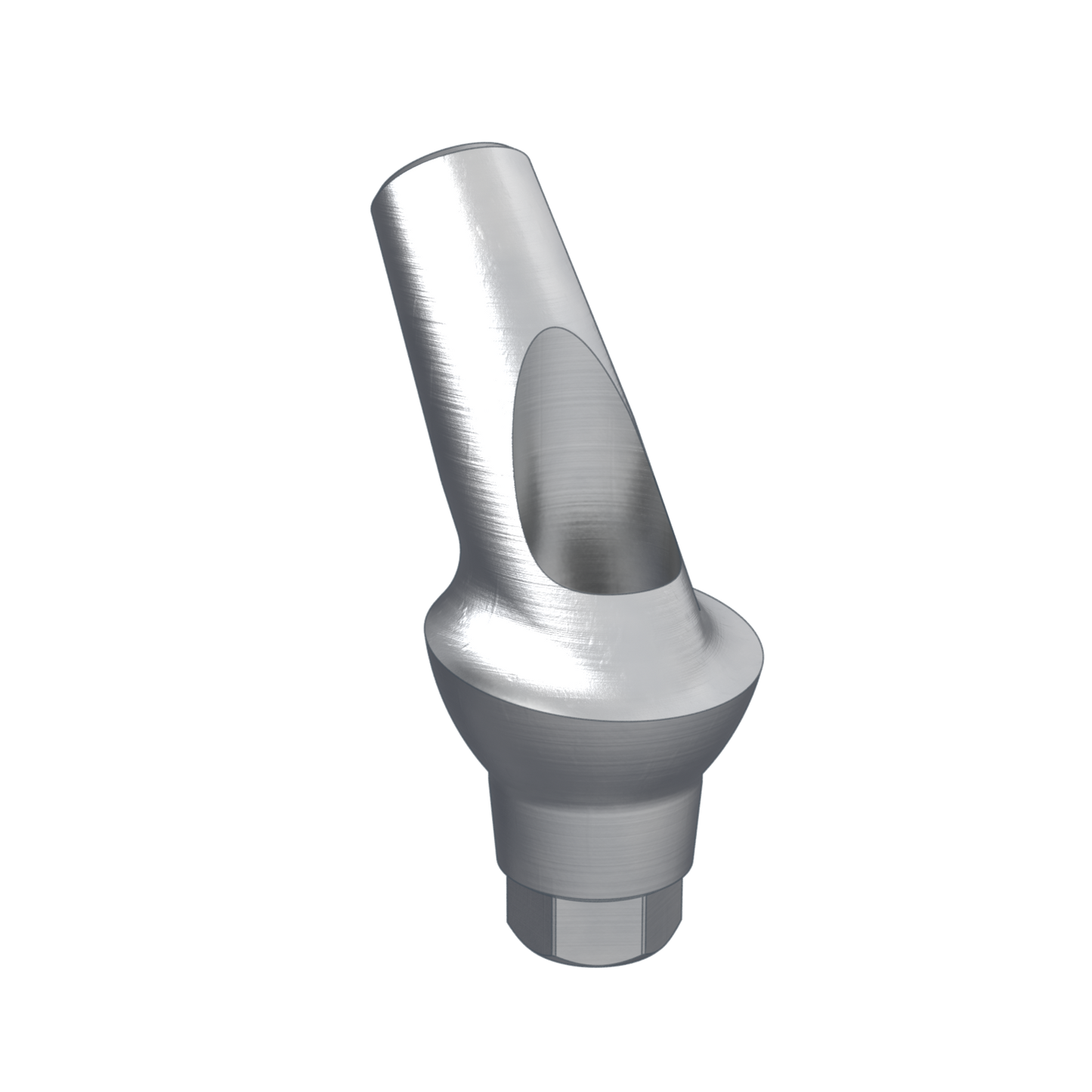

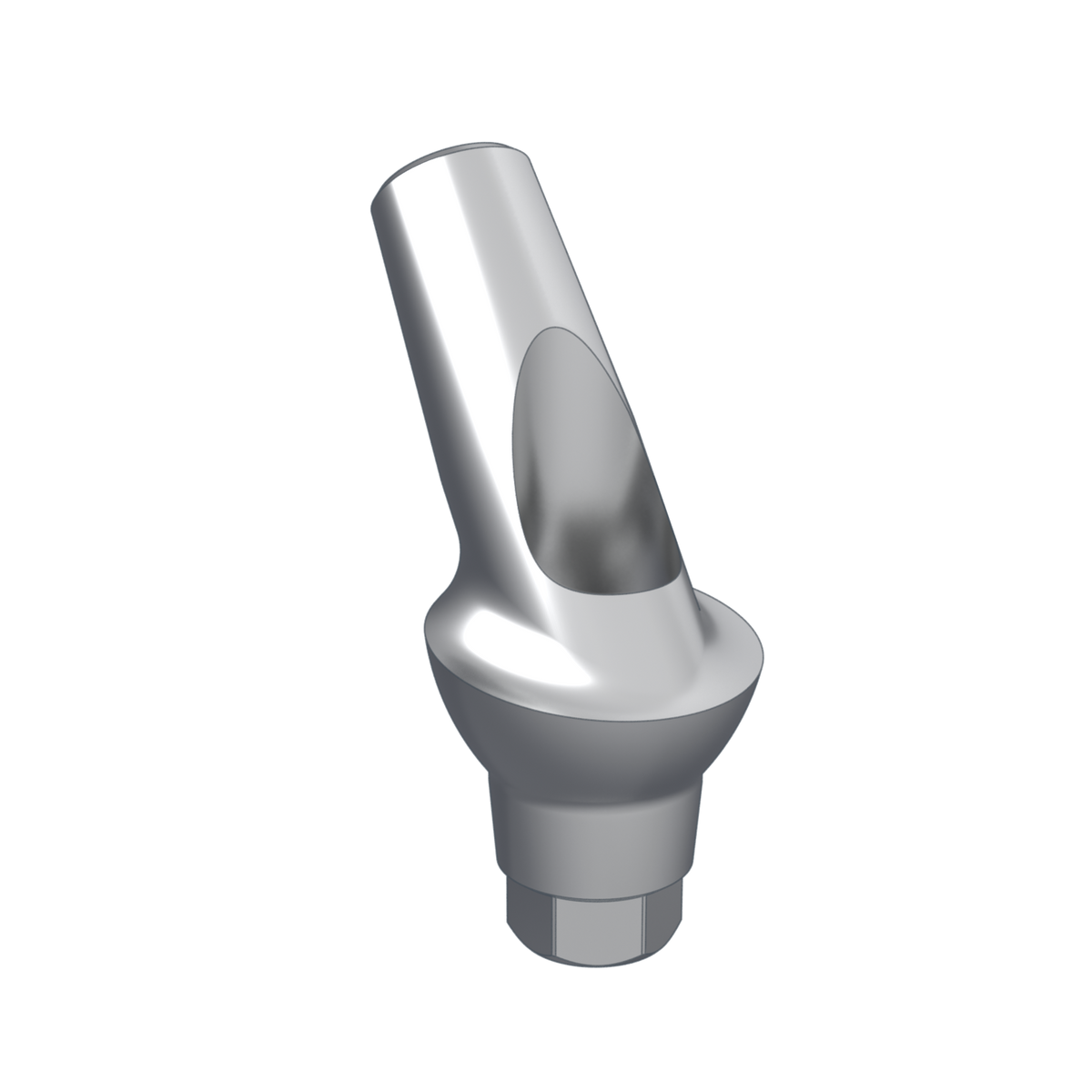

The Anatomic abutment, angled, 35°, positioned, type-B is an implant-level, customisable (grindable) abutment offering an excellent solution for cases where the implant inclination significantly deviates from the desired prosthetic axis. The 35° angulation allows for the correction of non-ideal implant positioning, while the anatomical shape helps to create a natural gingival contour and aesthetic outcome.

The Type B indexing ensures that a specific apex of the connection surface is always aligned in the same direction relative to the top of the abutment. This fixed orientation allows the abutment to return to the exact same position every time, which is critical in multi-implant restorations for achieving a precise fit and consistent aesthetic appearance.

Main Advantages:

• 35° angle correction: Ideal for compensating significant axial deviations.
• Anatomical design: Preformed shape for natural appearance and soft tissue support.
• Indexed orientation (Type B): Fixed apex ensures consistent and accurate repositioning.
• Customisable form: Can be individually shaped in both clinical and laboratory settings.
• Implant-level fit: Stable and reliable connection to the implant.
• Biocompatible titanium: Sterilisable and safe for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-B is the ideal choice for cases with pronounced angulation where precise repositioning and natural contouring are essential—such as multi-implant restorations in the aesthetic zone.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
