BIONIKA MG, Anatomic abutment, angled, 35°, positioned, type-A

Brand characteristics

The BIONIKA MG implant system is compatible with the MEGAGEN® AnyRidge® platform and utilises an advanced conical connection (Conical-Connection) that ensures micromovement-free load transfer and long-term stability.

Its unique, deeply grooved, self-compressing thread geometry provides exceptional primary stability even in low bone density conditions.

The platform switching design allows soft tissues to naturally adapt and seal around the implant shoulder, promoting biological closure and bone preservation.

The anatomical root-shaped body, combined with self-cutting and self-locking threads, ensures gentle insertion and rapid osseointegration.

The BIONIKA MG system is an outstanding choice for aesthetic-zone restorations and immediate loading procedures, where precision, stability, and tissue preservation are of utmost importance.

Geometry characteristics

Customisable Abutment for High-Angle Correction with Natural Contour and Precise Orientation

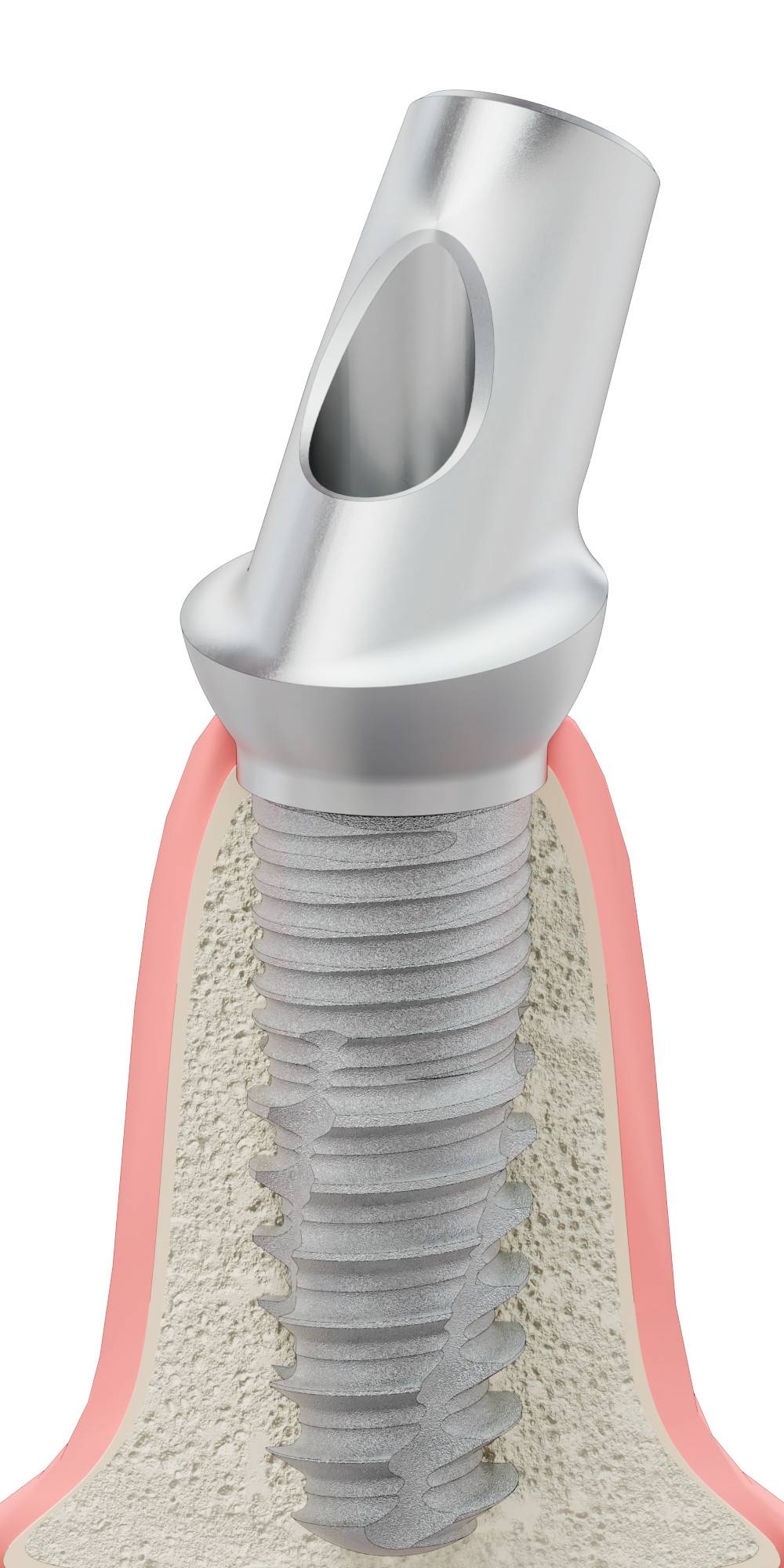

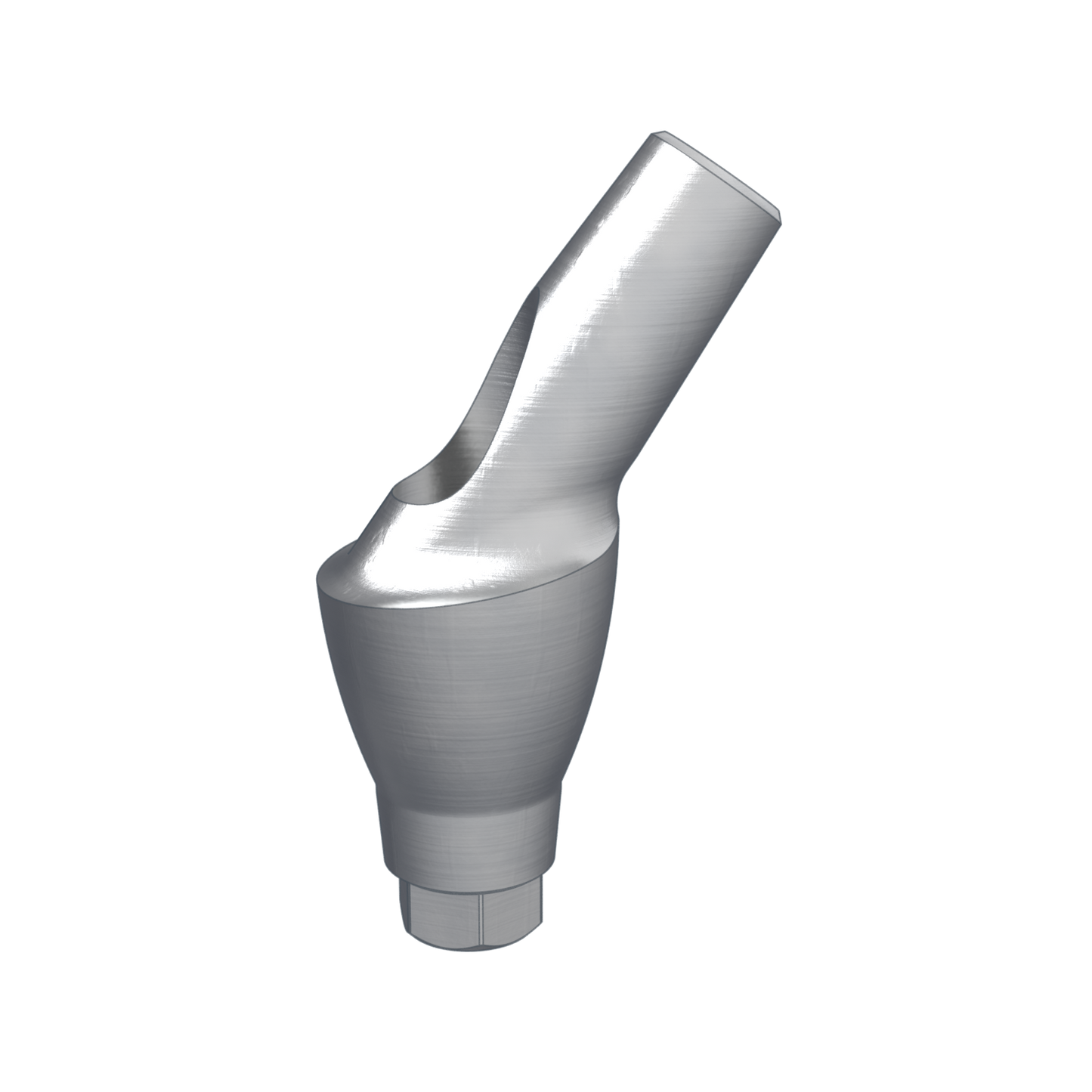

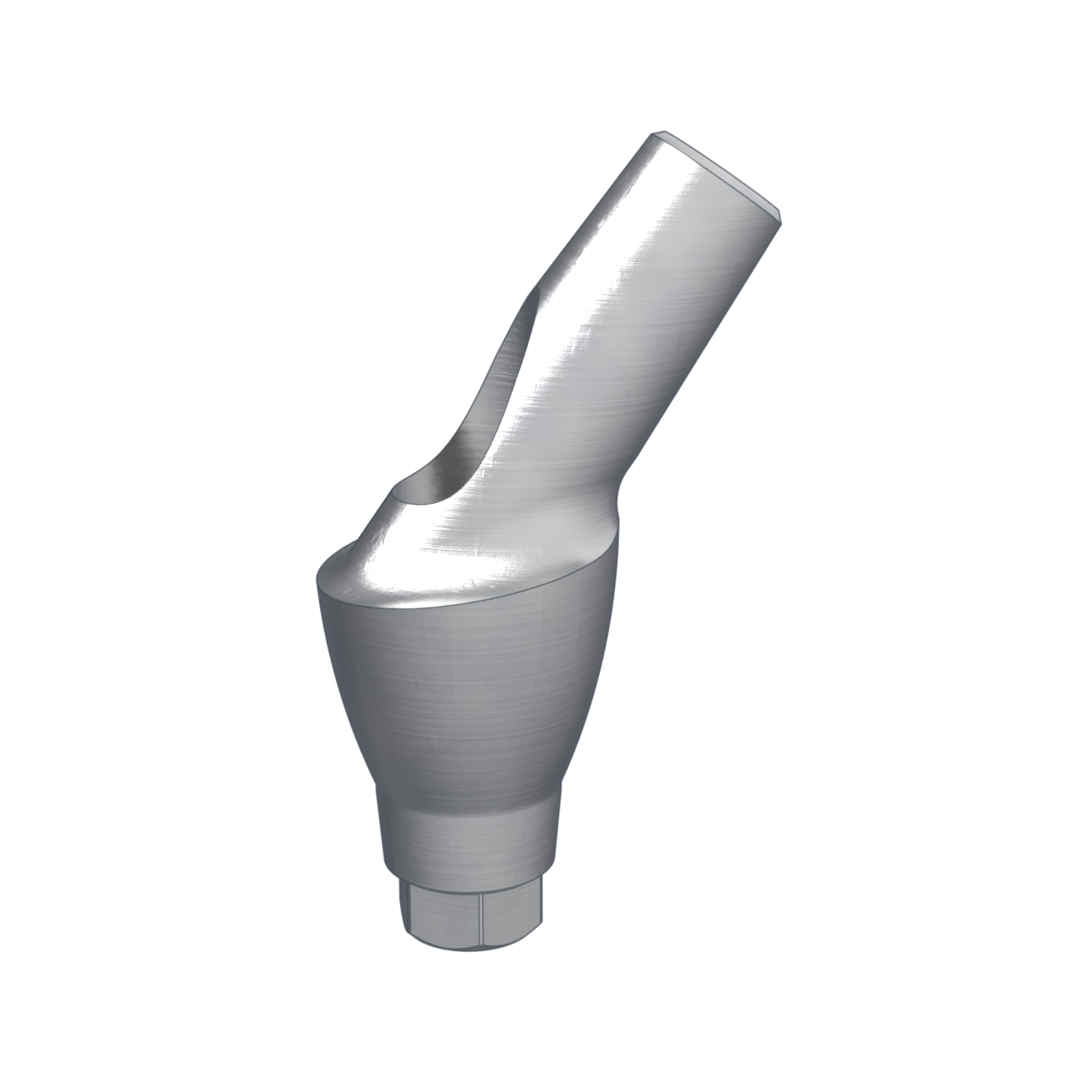

The Anatomic abutment, angled, 35°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for implants exhibiting significant axial deviation. The 35° angulation allows for the correction of major discrepancies between the implant and prosthetic axes without compromising aesthetics or functionality.

The Type A indexed design ensures that the abutment is always repositioned in the same orientation. In this design, a specific flat surface of the connection consistently aligns with the same direction relative to the top of the abutment. This guarantees precise orientation, which is essential in multi-implant restorations.

Main Advantages:

• 35° angle correction: Outstanding capability to correct major axial deviations.
• Anatomical shape: Preformed design promotes natural appearance and gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures precise repositioning.
• Customisable design: Individually shapeable according to clinical or laboratory needs.
• Implant-level connection: Stable and reliable fit to the implant.
• Biocompatible titanium: Durable, tissue-friendly, and sterilisable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-A is the ideal solution when the implant is significantly misaligned with the desired prosthetic axis and precise orientation along with a natural appearance are key—such as in restorations involving multiple implants.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
