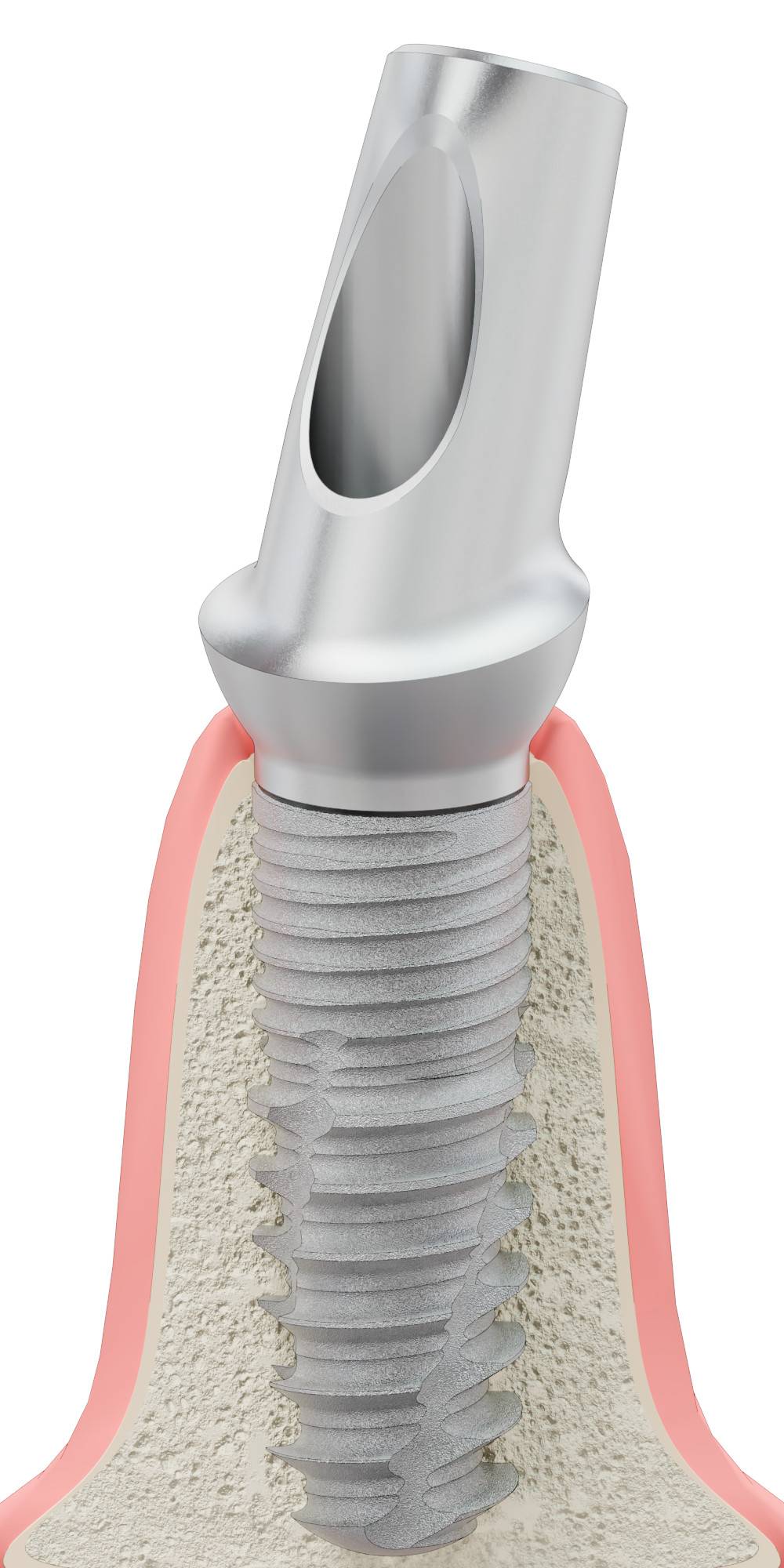

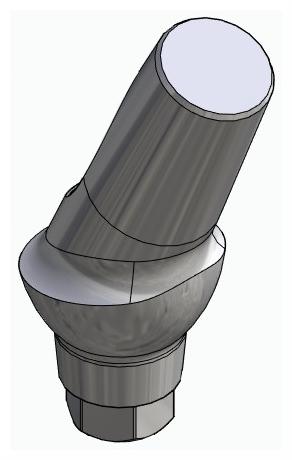

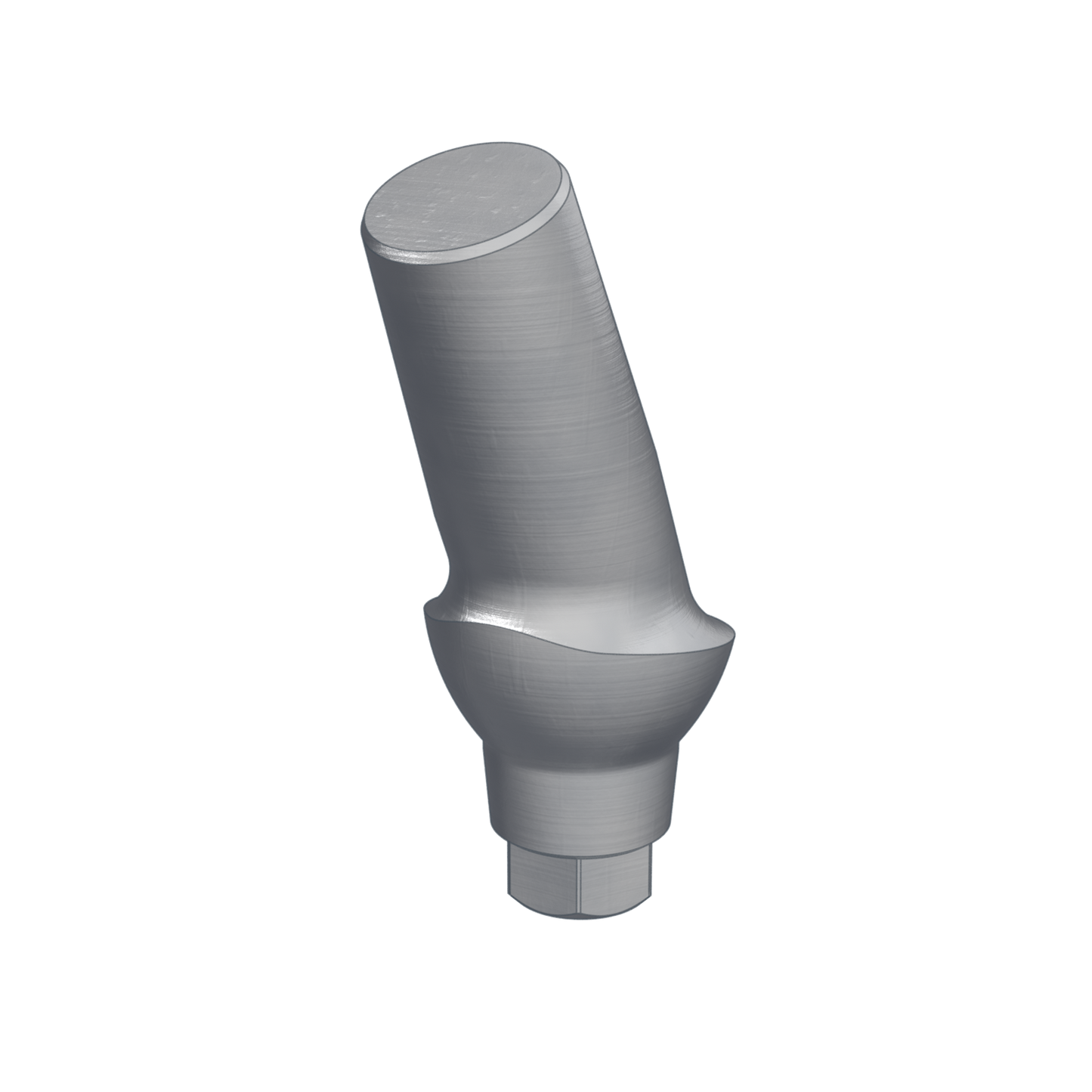

BIONIKA MG, Anatomic abutment, angled, 25°, positioned, type-A

Brand characteristics

The BIONIKA MG implant system is compatible with the MEGAGEN® AnyRidge® platform and utilises an advanced conical connection (Conical-Connection) that ensures micromovement-free load transfer and long-term stability.

Its unique, deeply grooved, self-compressing thread geometry provides exceptional primary stability even in low bone density conditions.

The platform switching design allows soft tissues to naturally adapt and seal around the implant shoulder, promoting biological closure and bone preservation.

The anatomical root-shaped body, combined with self-cutting and self-locking threads, ensures gentle insertion and rapid osseointegration.

The BIONIKA MG system is an outstanding choice for aesthetic-zone restorations and immediate loading procedures, where precision, stability, and tissue preservation are of utmost importance.

Geometry characteristics

Customisable Abutment with Natural Contour and Precise Orientation for Extended Angle Correction

The Anatomic abutment, angled, 25°, positioned, type-A is an implant-level, customisable (grindable) abutment designed for cases requiring significant angle correction without compromising on aesthetic or functional outcomes. The 25° angulation allows for the compensation of major axis deviations, while the anatomical shape supports the creation and maintenance of a natural soft tissue profile.

The Type A indexed design ensures that a defined flat surface of the connection always aligns in the same direction relative to the top part of the abutment. This fixed orientation is particularly advantageous in multi-implant restorations, as it ensures precision in fit, aesthetics, and technical execution.

Main Advantages:

• 25° angle correction: Ideal for compensating substantial axial deviations.
• Anatomical shape: Preformed geometry supports the formation and preservation of natural gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures accurate repositioning every time.
• Customisable design: Allows individual shaping during laboratory or clinical procedures.
• Implant-level fit: Stable and reliable connection with the implant.
• Biocompatible titanium: Sterilisable, durable, and safe for long-term clinical use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-A is an ideal solution in cases where the implant axis significantly diverges from the intended prosthetic axis, and precise orientation and aesthetic integration are essential.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
