BIONIKA MG, Anatomic abutment, angled, 15°, positioned, type-A

Professional use only This is a medical device intended for use by qualified dental and medical professionals. Orders can only be placed by dental or medical professionals, healthcare institutions and authorised distributors — you will be asked to confirm this in your cart before checkout. Proof of professional status is required before shipping. After you place your order, our team will contact you by e-mail to request documentation of your professional status (e.g. professional licence, chamber membership or company registration), unless your status has already been verified with us. You can also send your credentials in advance to info@bionika.hu. Orders are fulfilled and shipped only after successful verification.

Brand characteristics

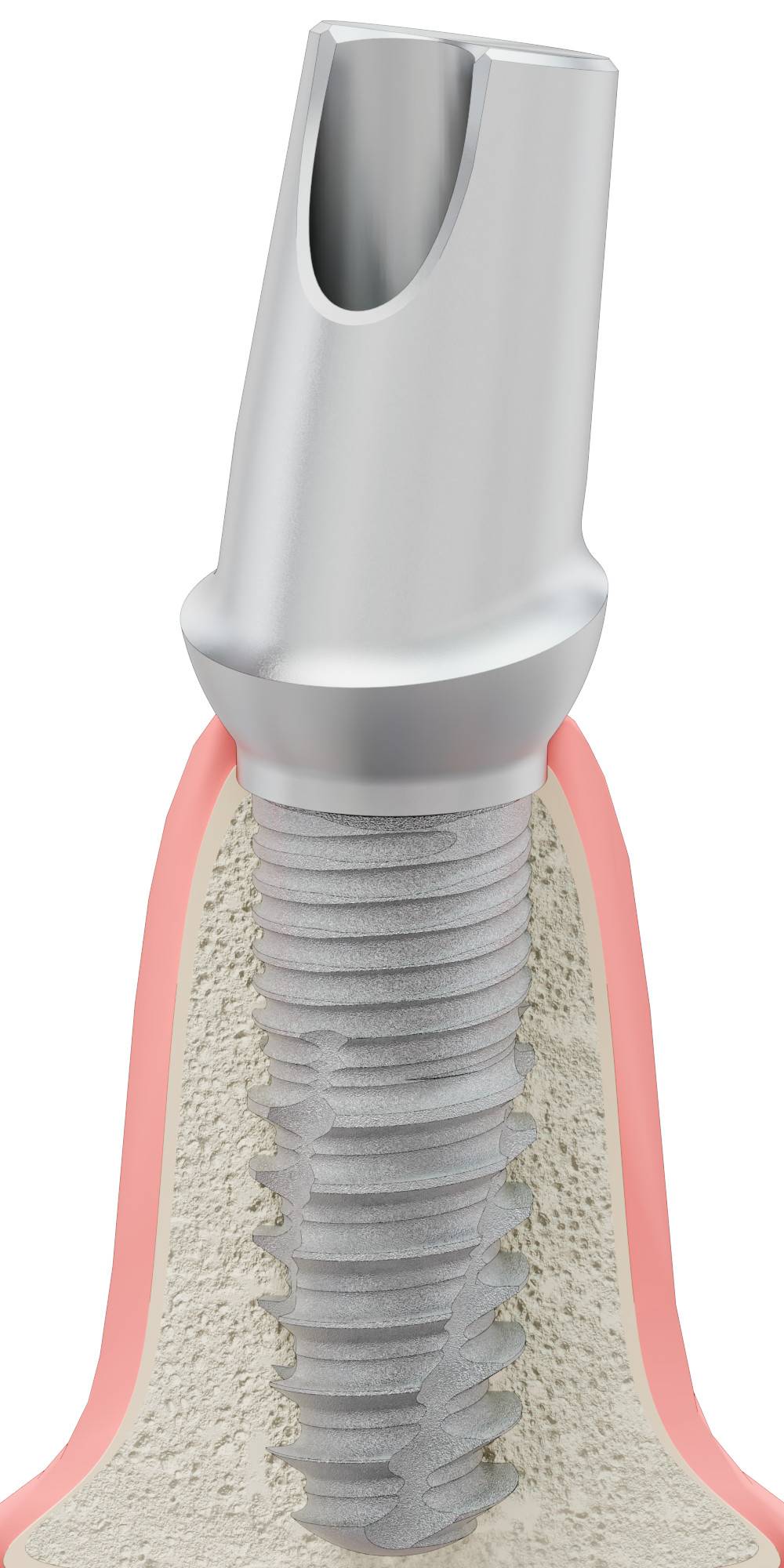

The BIONIKA MG implant system is compatible with the MEGAGEN® AnyRidge® platform and utilises an advanced conical connection (Conical-Connection) that ensures micromovement-free load transfer and long-term stability.

Its unique, deeply grooved, self-compressing thread geometry provides exceptional primary stability even in low bone density conditions.

The platform switching design allows soft tissues to naturally adapt and seal around the implant shoulder, promoting biological closure and bone preservation.

The anatomical root-shaped body, combined with self-cutting and self-locking threads, ensures gentle insertion and rapid osseointegration.

The BIONIKA MG system is an outstanding choice for aesthetic-zone restorations and immediate loading procedures, where precision, stability, and tissue preservation are of utmost importance.

Geometry characteristics

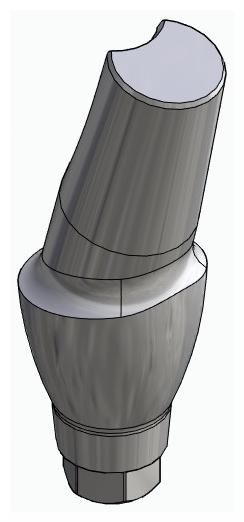

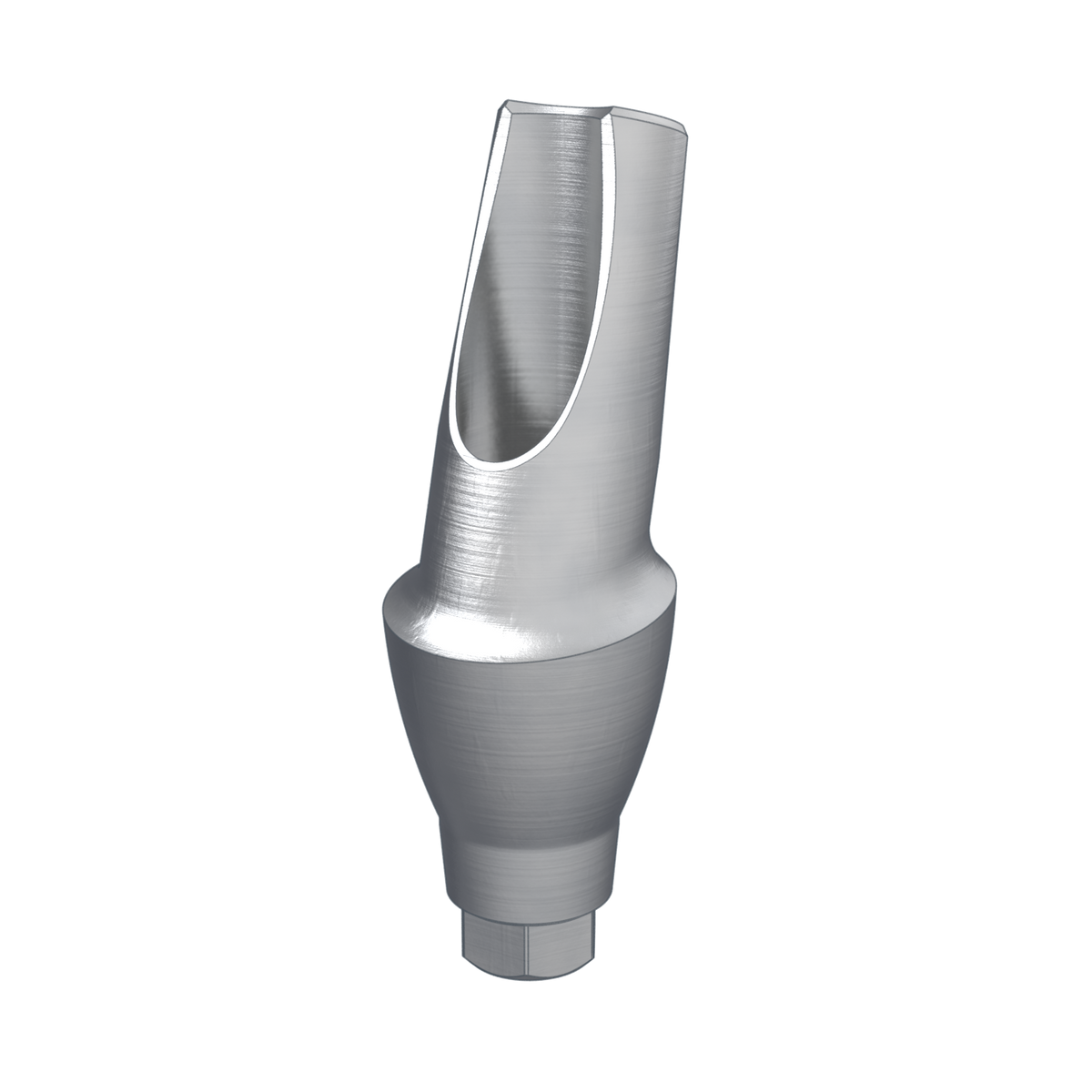

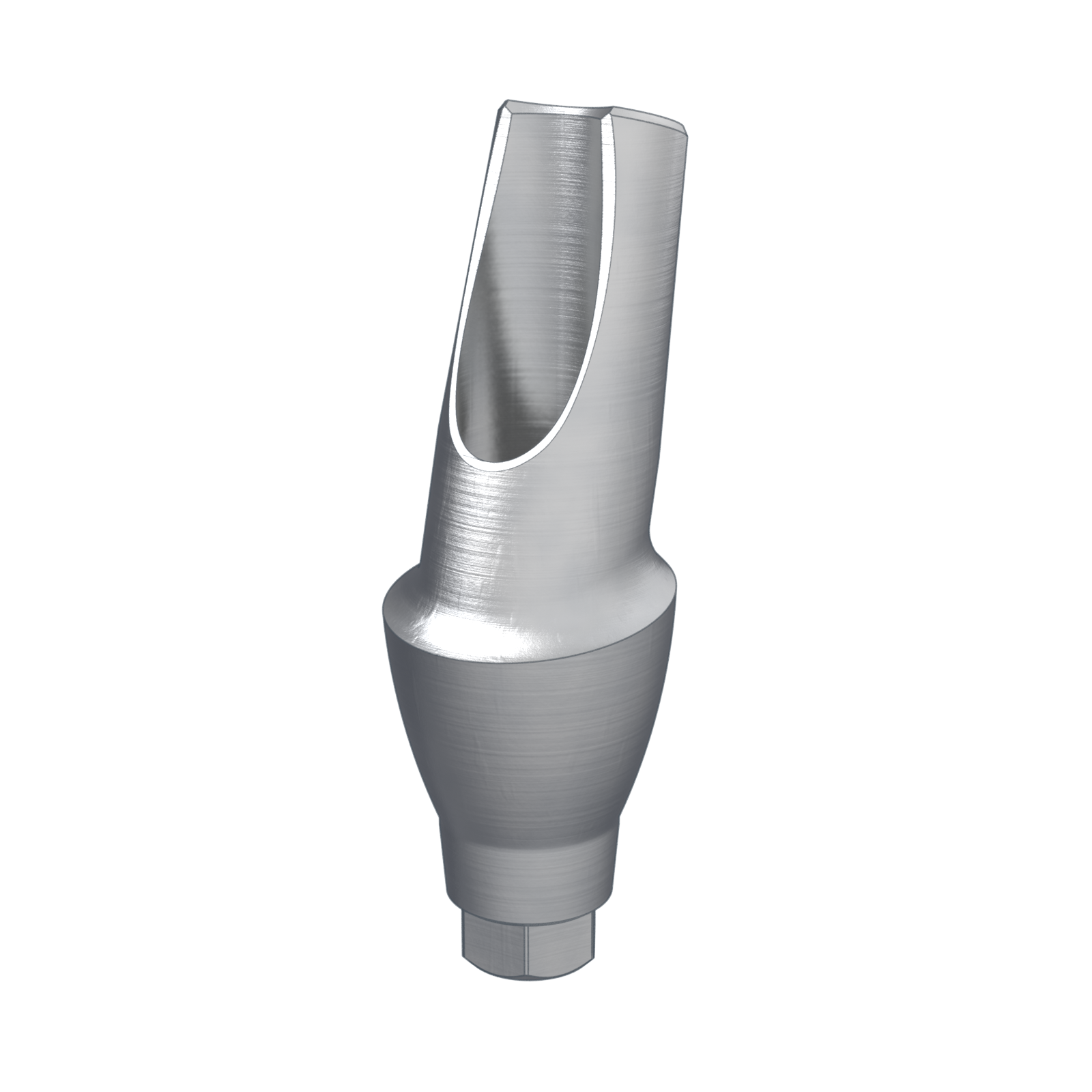

Angulated, Anatomically Shaped Customisable Abutment with Indexed Orientation

The Anatomic abutment, angled, 15°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for angle correction and prosthetic restorations that follow natural contours. The 15° angulated design enables the correction of non-ideal implant positioning, while the anatomical shape supports the formation of aesthetic and functional soft tissue profiles.

The Type A indexed connection ensures that a defined flat surface of the abutment's connection interface always remains aligned with the same direction relative to the top part of the abutment. This fixed orientation allows for accurate repositioning and coordination of prosthetic components, especially in multi-implant restorations.

Main Advantages:

15° angle correction: Enables alignment of the implant and prosthetic axes.
Anatomical shape: Preformed geometry supports natural gingival contouring.
Indexed connection (Type A): Defined flat surface ensures precise orientation.
Customisable design: Suitable for individual adjustment in clinical or laboratory settings.
Implant-level fit: Stable and precise connection with the implant.
Biocompatible titanium: Durable, sterilisable, and suitable for long-term use.
The screw is included.

Indications:

The Anatomic abutment, angled, 15°, positioned, type-A is an excellent choice in cases where a discrepancy exists between the implant axis and the desired prosthetic axis. It is particularly suitable where natural appearance and precise orientation are critical for the success of multi-implant restorations.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.

BIONIKA MG, Anatomic abutment, angled, 15°, positioned, type-A
