BIONIKA LG, Ball abutment, OC, normal

Brand characteristics

The BIONIKA LG implant system is compatible with the Implant Direct® Legacy® platform and features a refined conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term stability.

The spirally micro-grooved, self-locking thread profile provides strong primary anchorage, while the self-compressing, self-cutting thread design delivers excellent stability even in spongy bone.

The platform switching design supports the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

The anatomical root-shaped design with a rounded apex facilitates insertion and the effective dissipation of dynamic loads, making the LG system a reliable, aesthetic, and long-term stable solution in clinical practice.

Geometry characteristics

Implant-level ball abutment designed for securing removable dentures with OT-CAP retention

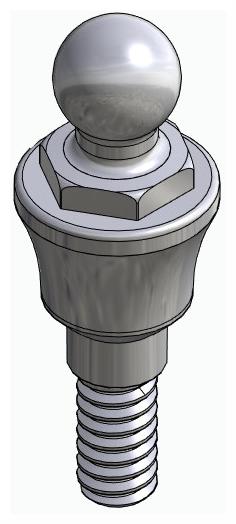

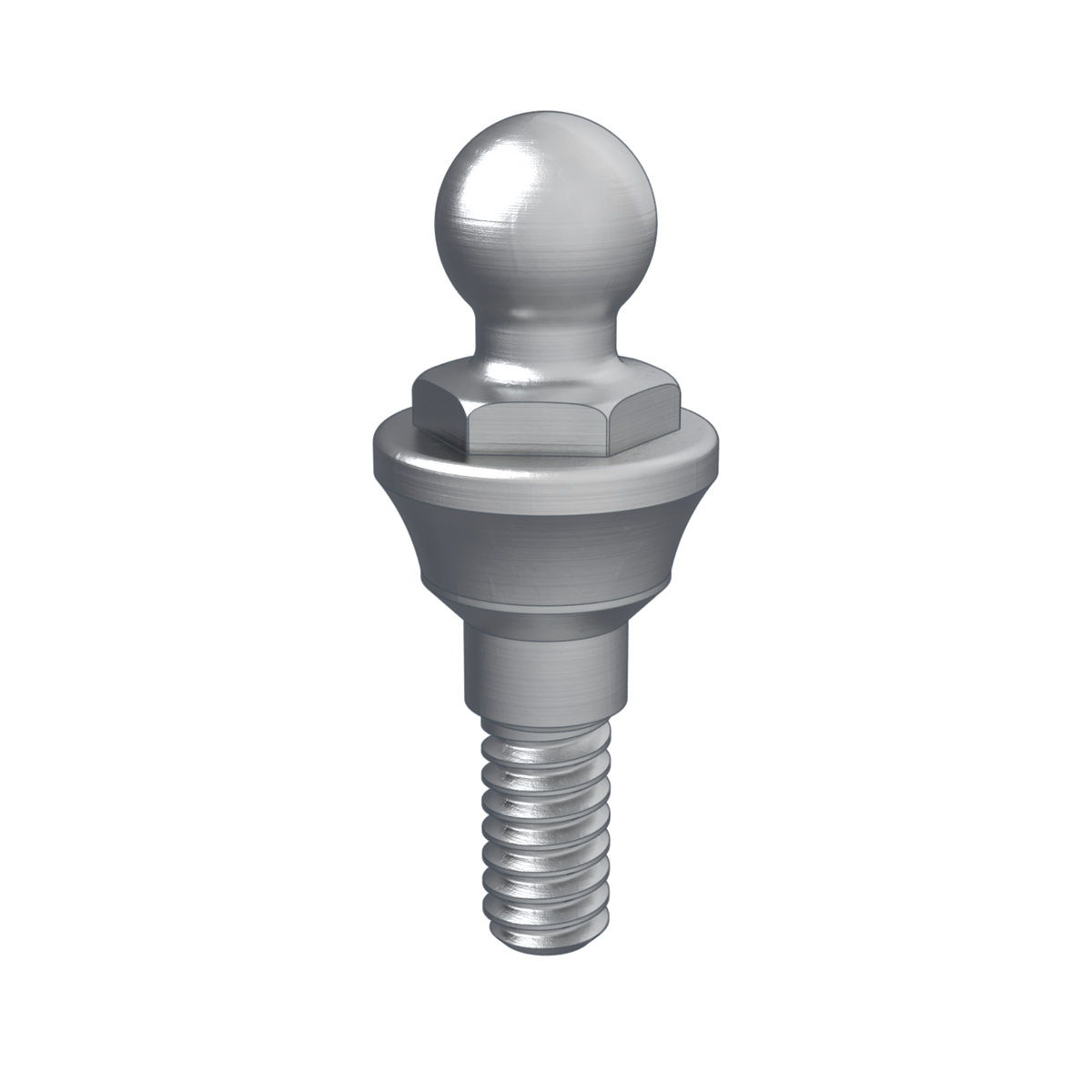

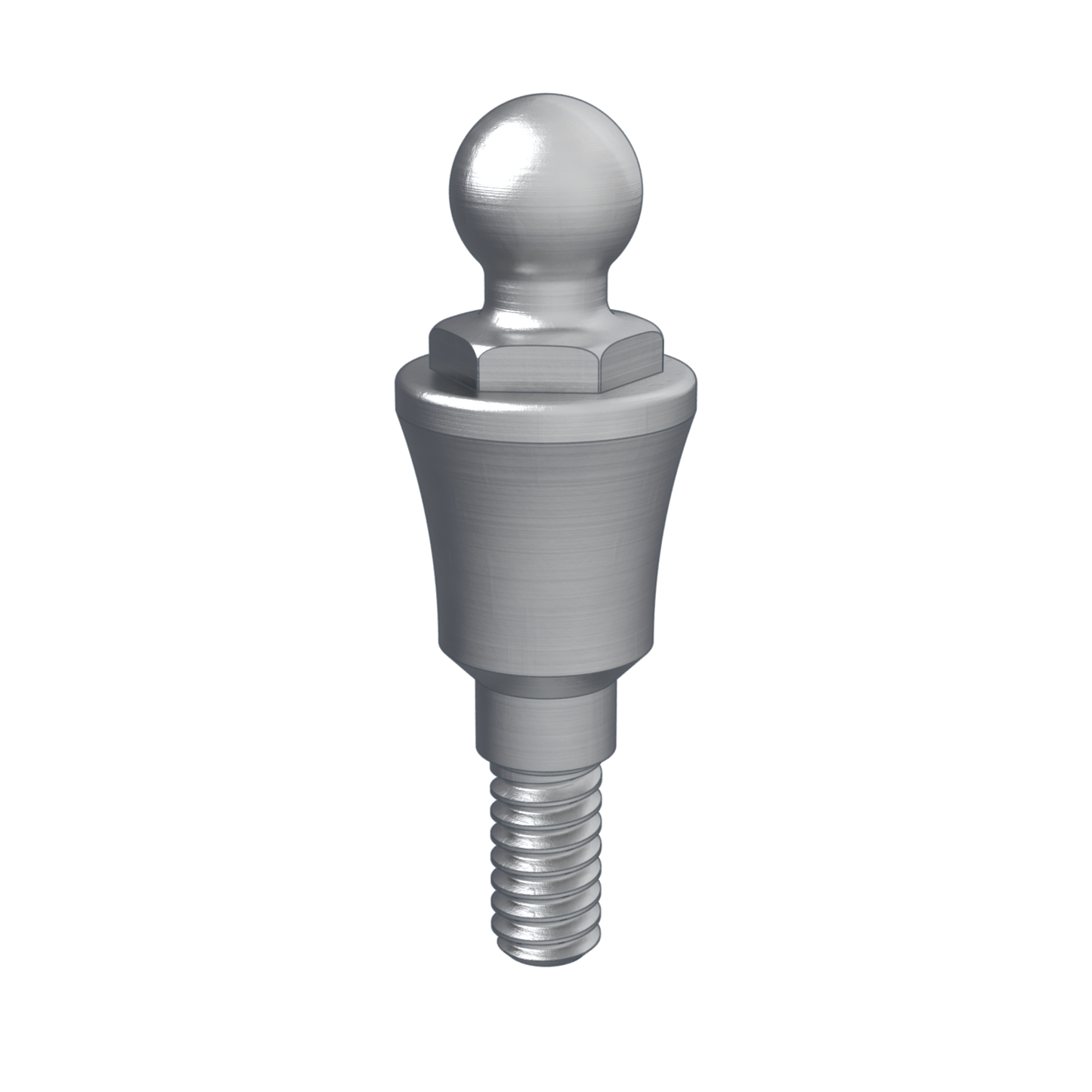

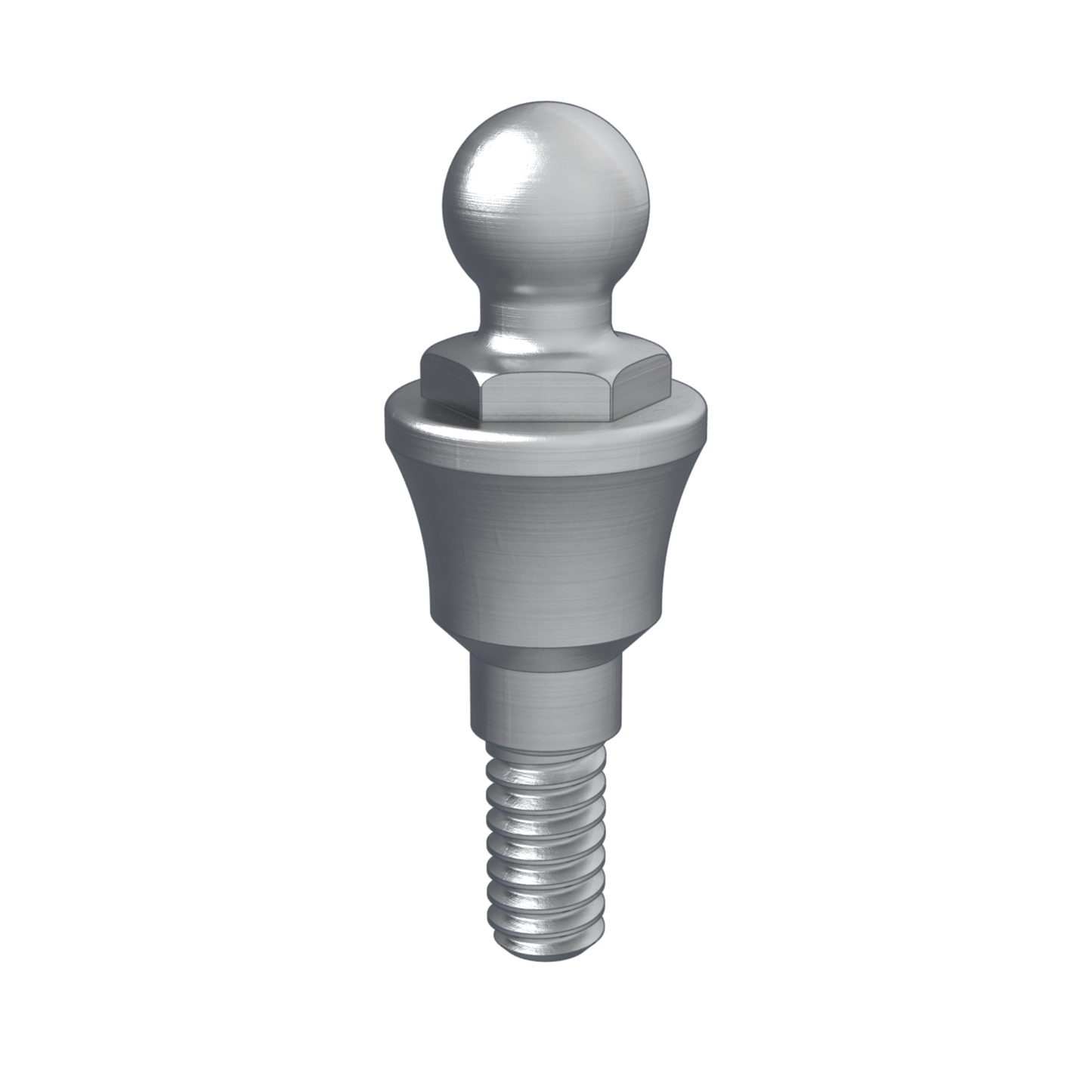

The Ball abutment, OC, normal is an implant-level attachment for removable prostheses, fully compatible with the OT-CAP retention system. The standard version features a 2.5 mm diameter ball head, offering reliable retention for most clinical scenarios and ensuring long-term stability for the denture during daily use.

OC-type ball abutments are used in combination with the OT-CAP system’s specialized plastic matrices, which are designed to fit the ball head precisely. This configuration allows the patient to easily remove and reinsert the prosthesis, while maintaining secure retention throughout daily wear.

Main Benefits:

• Standard ball size (Ø2.5 mm): Excellent retention force and broad clinical applicability.
• OT-CAP compatibility: Proven and user-friendly retention system.
• Implant-level connection: Secure and precise fit with the implant.
• Ideal for removable prostheses: Easy for the patient to manage, yet stable and reliable.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Application:

The Ball abutment, OC, normal is an excellent solution for retaining full or partial removable dentures when strong and reliable retention is required, and the implant angulation is suitable for ball attachment use.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
