BIONIKA LG, Anatomic abutment, angled, 25°, positioned, type-A

Brand characteristics

The BIONIKA LG implant system is compatible with the Implant Direct® Legacy® platform and features a refined conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term stability.

The spirally micro-grooved, self-locking thread profile provides strong primary anchorage, while the self-compressing, self-cutting thread design delivers excellent stability even in spongy bone.

The platform switching design supports the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

The anatomical root-shaped design with a rounded apex facilitates insertion and the effective dissipation of dynamic loads, making the LG system a reliable, aesthetic, and long-term stable solution in clinical practice.

Geometry characteristics

Customisable Abutment with Natural Contour and Precise Orientation for Extended Angle Correction

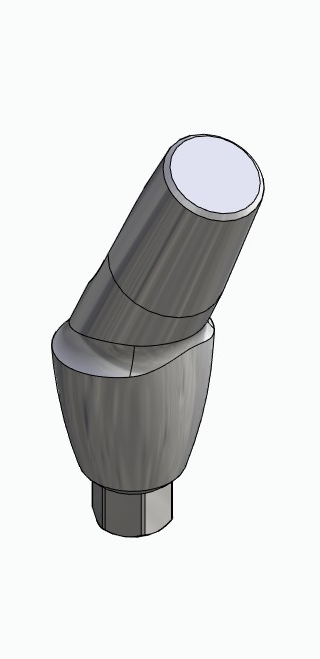

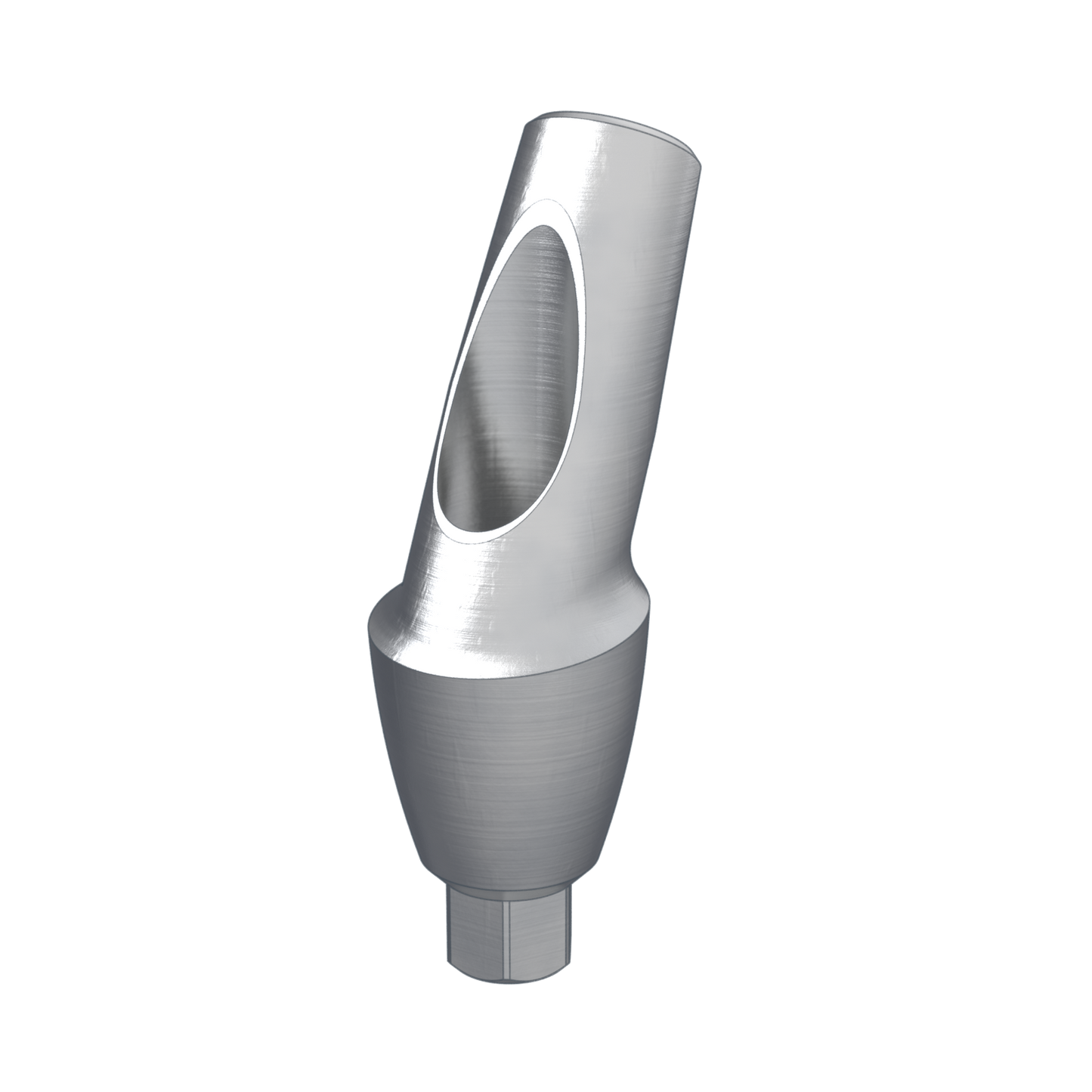

The Anatomic abutment, angled, 25°, positioned, type-A is an implant-level, customisable (grindable) abutment designed for cases requiring significant angle correction without compromising on aesthetic or functional outcomes. The 25° angulation allows for the compensation of major axis deviations, while the anatomical shape supports the creation and maintenance of a natural soft tissue profile.

The Type A indexed design ensures that a defined flat surface of the connection always aligns in the same direction relative to the top part of the abutment. This fixed orientation is particularly advantageous in multi-implant restorations, as it ensures precision in fit, aesthetics, and technical execution.

Main Advantages:

• 25° angle correction: Ideal for compensating substantial axial deviations.
• Anatomical shape: Preformed geometry supports the formation and preservation of natural gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures accurate repositioning every time.
• Customisable design: Allows individual shaping during laboratory or clinical procedures.
• Implant-level fit: Stable and reliable connection with the implant.
• Biocompatible titanium: Sterilisable, durable, and safe for long-term clinical use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-A is an ideal solution in cases where the implant axis significantly diverges from the intended prosthetic axis, and precise orientation and aesthetic integration are essential.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
