BIONIKA KT, Anatomic abutment, angled, 15°, positioned, type-A

Brand characteristics

The BIONIKA KT implant system is compatible with the Kontact® platform and features an advanced conical and hexagonal (Cone & Hex) connection that ensures precise, micromovement-free fitting and uniform load distribution.

The 24° cone angle directs forces deep into the implant body, enhancing stability while reducing cortical bone stress.

The spirally micro-grooved, self-locking thread profile provides increased primary stability, while the self-cutting, bone-condensing thread design ensures optimal fixation across various bone qualities.

The platform switching configuration creates a biological seal at the bone–soft tissue interface, supporting the preservation of peri-implant tissues.

Its anatomical root-shaped design and rounded apex enable gentle insertion and balanced load transfer, making the KT system a reliable and aesthetic choice for long-term restorations.

Geometry characteristics

Angulated, Anatomically Shaped Customisable Abutment with Indexed Orientation

The Anatomic abutment, angled, 15°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for angle correction and prosthetic restorations that follow natural contours. The 15° angulated design enables the correction of non-ideal implant positioning, while the anatomical shape supports the formation of aesthetic and functional soft tissue profiles.

The Type A indexed connection ensures that a defined flat surface of the abutment's connection interface always remains aligned with the same direction relative to the top part of the abutment. This fixed orientation allows for accurate repositioning and coordination of prosthetic components, especially in multi-implant restorations.

Main Advantages:

• 15° angle correction: Enables alignment of the implant and prosthetic axes.
• Anatomical shape: Preformed geometry supports natural gingival contouring.
• Indexed connection (Type A): Defined flat surface ensures precise orientation.
• Customisable design: Suitable for individual adjustment in clinical or laboratory settings.
• Implant-level fit: Stable and precise connection with the implant.
• Biocompatible titanium: Durable, sterilisable, and suitable for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 15°, positioned, type-A is an excellent choice in cases where a discrepancy exists between the implant axis and the desired prosthetic axis. It is particularly suitable where natural appearance and precise orientation are critical for the success of multi-implant restorations.

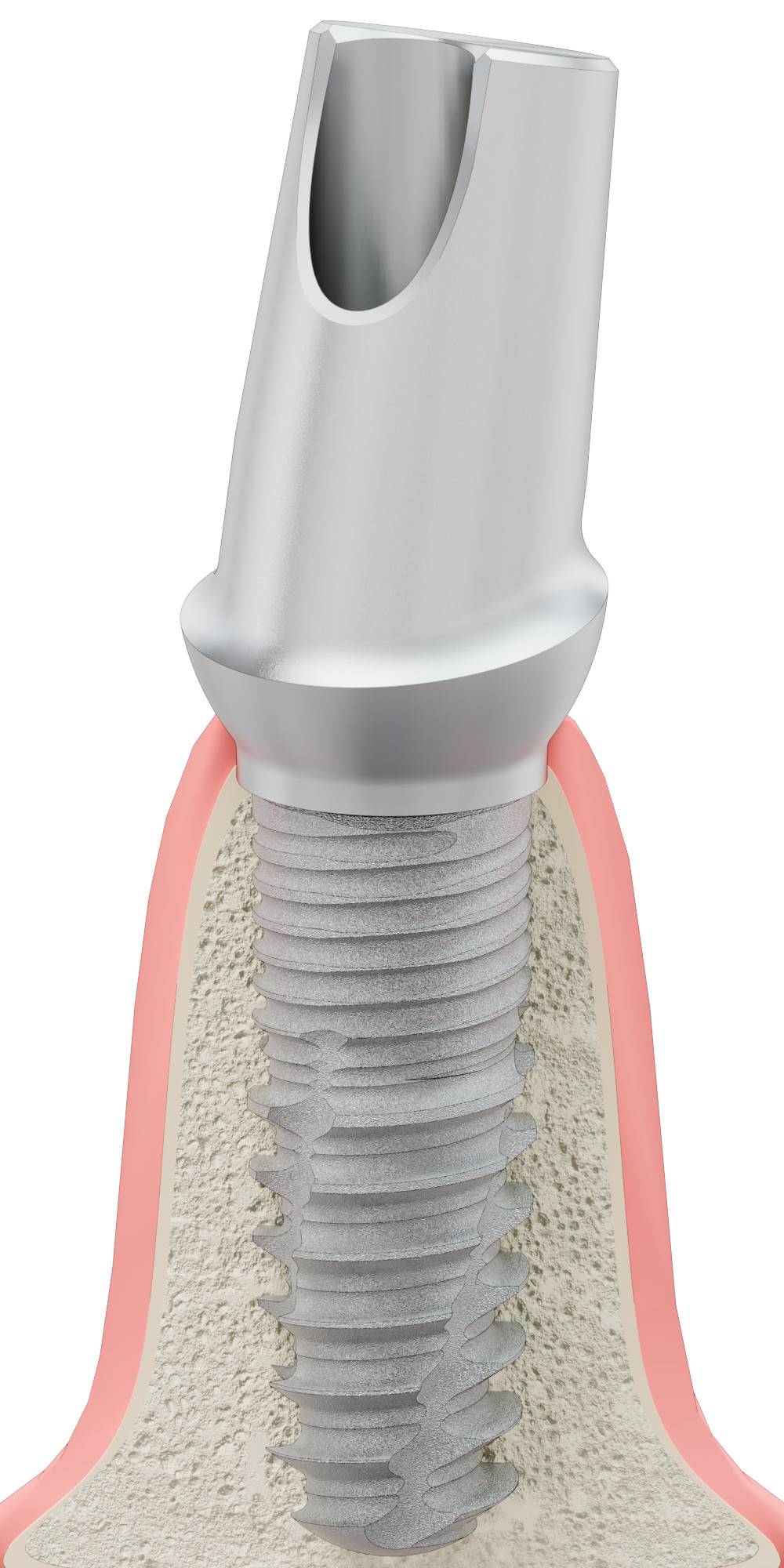

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
