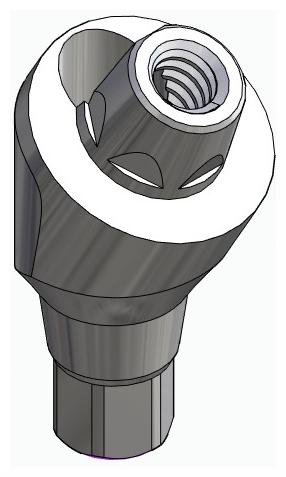

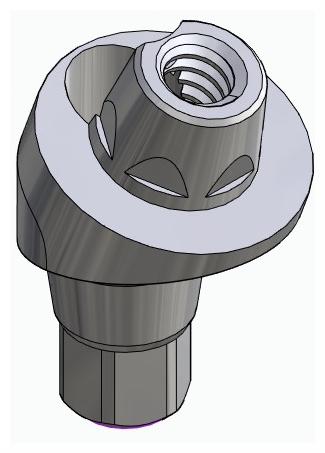

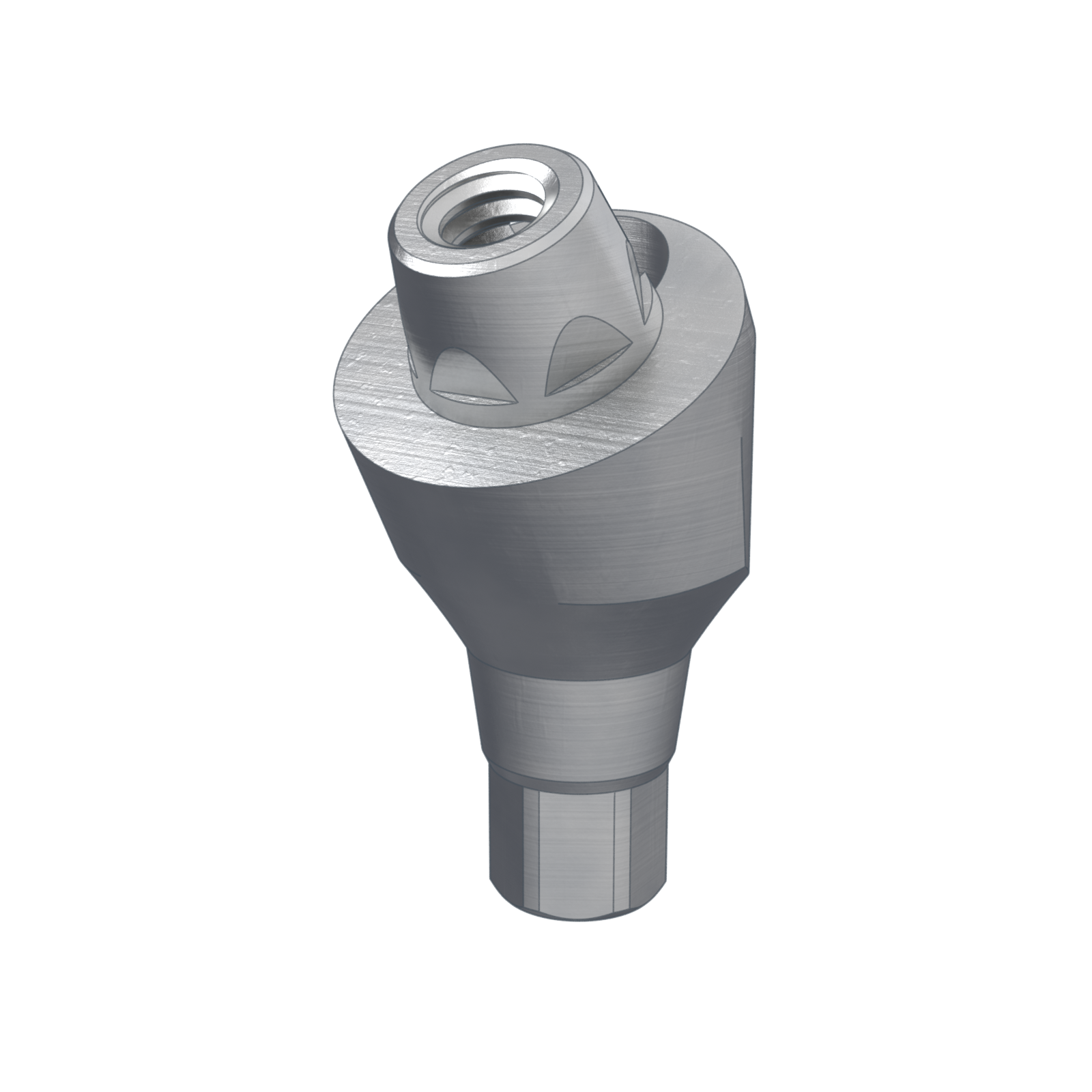

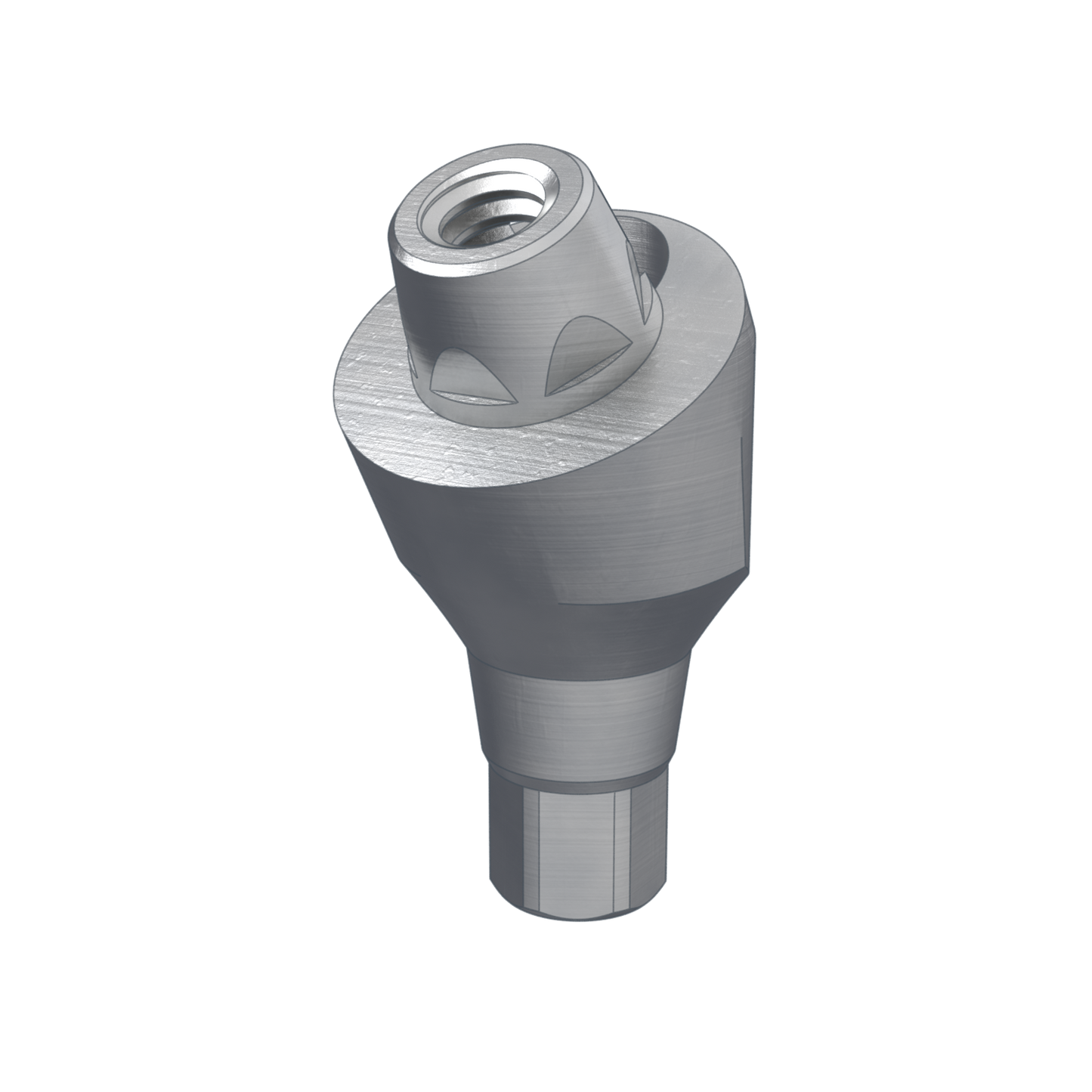

BIONIKA iSy, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B

Brand characteristics

The BIONIKA ISY implant system is compatible with the ISY® platform and features an internal conical connection (Conical-Connection) that ensures high-precision, micromovement-free fitting and optimal load distribution.

The 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term stability.

The spirally micro-grooved, self-locking, and self-compressing thread profile provides strong primary stability, especially in clinical cases designed for immediate loading.

The platform switching design creates a biological seal around the implant shoulder, supporting the natural integration of bone and soft tissues.

With its anatomical root-shaped design, self-cutting and bone-condensing thread structure, the ISY system ensures rapid osseointegration, an aesthetic gingival contour, and reliable long-term stability for all prosthetic applications.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base. It provides angular correction, particularly useful in cases where implants are not inserted parallel to one another. Its narrow design is especially advantageous in anterior regions or tight interproximal spaces, where aesthetics and space efficiency are critical.

The Type B position-orientation ensures that a specific point of the connection surface always aligns in the same direction relative to the top of the abutment upon reinsertion. This allows for accurate orientation and consistent seating, which is essential in screw-retained restorations on multiple implants.

The M1.6 internal thread is located at the top of the abutment, enabling the fixation of various prosthetic components such as bridge frameworks or custom restorations. The lower connection is designed to fit the LT2.7 platform geometry without a retaining screw.

Main Advantages:

• Angular correction: Aligns implant axes with prosthetic orientation.
• Type B orientation: A defined point of the interface aligns consistently upon reinsertion.
• Narrow design: Ideal for use in narrow spaces and the aesthetic zone.
• LT2.7 compatibility: Precisely fits the corresponding multi-unit platform.
• M1.6 internal thread: Suitable for securing screw-retained prosthetic components.
• Biocompatible titanium: Durable, sterilizable, and safe for clinical use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is the ideal solution for screw-retained restorations on multiple implants when angular correction, narrow profile, and reliable orientation are required along with full compatibility with the LT2.7 platform.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
