BIONIKA iSy, Multi-Compact abutment, positioned, type-A

Brand characteristics

The BIONIKA ISY implant system is compatible with the ISY® platform and features an internal conical connection (Conical-Connection) that ensures high-precision, micromovement-free fitting and optimal load distribution.

The 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term stability.

The spirally micro-grooved, self-locking, and self-compressing thread profile provides strong primary stability, especially in clinical cases designed for immediate loading.

The platform switching design creates a biological seal around the implant shoulder, supporting the natural integration of bone and soft tissues.

With its anatomical root-shaped design, self-cutting and bone-condensing thread structure, the ISY system ensures rapid osseointegration, an aesthetic gingival contour, and reliable long-term stability for all prosthetic applications.

Geometry characteristics

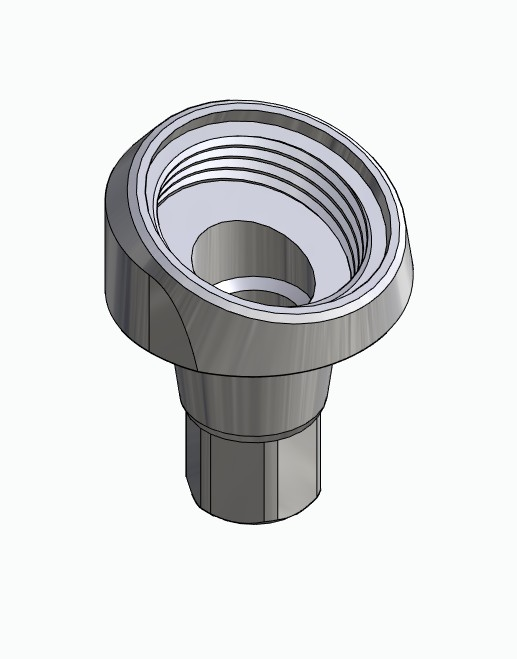

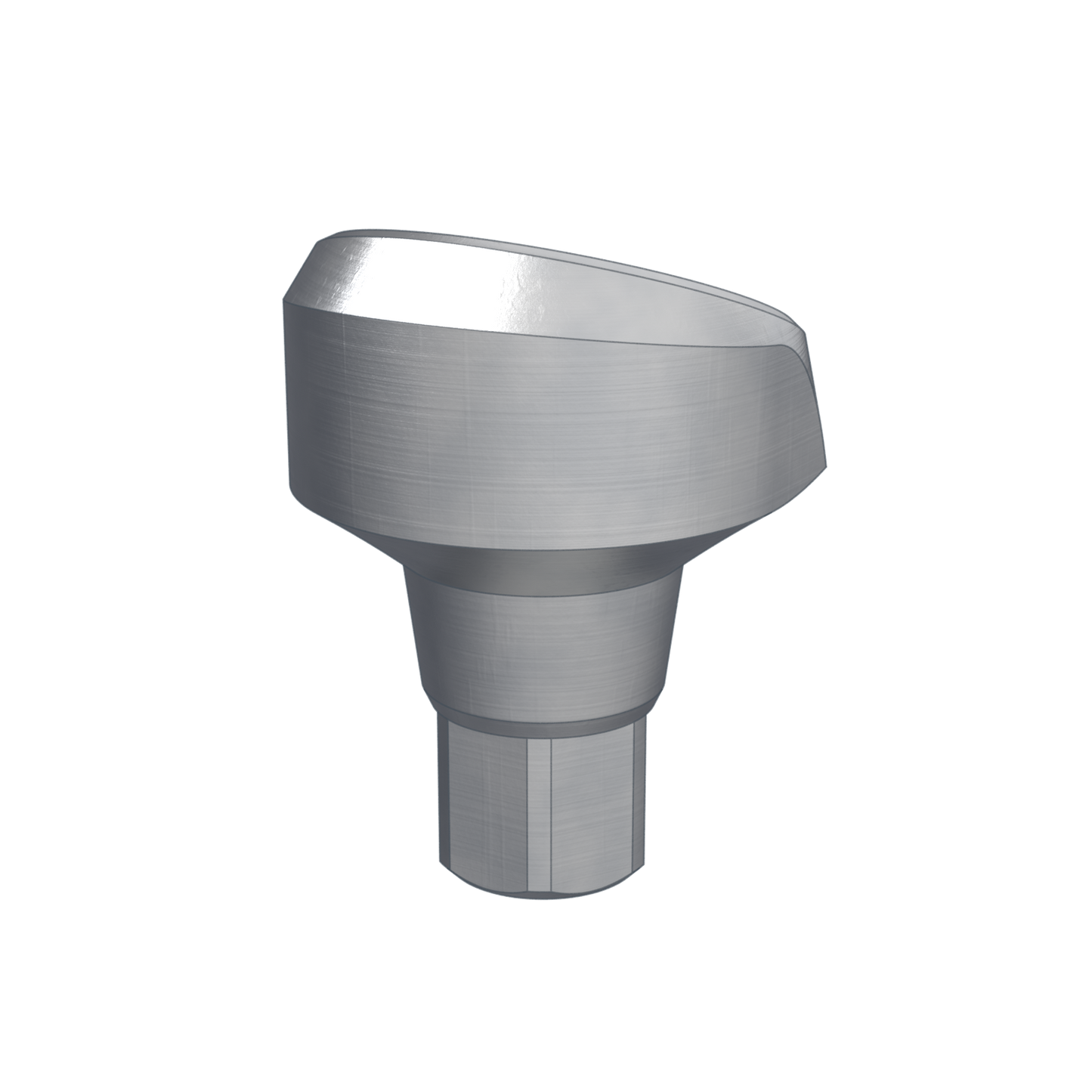

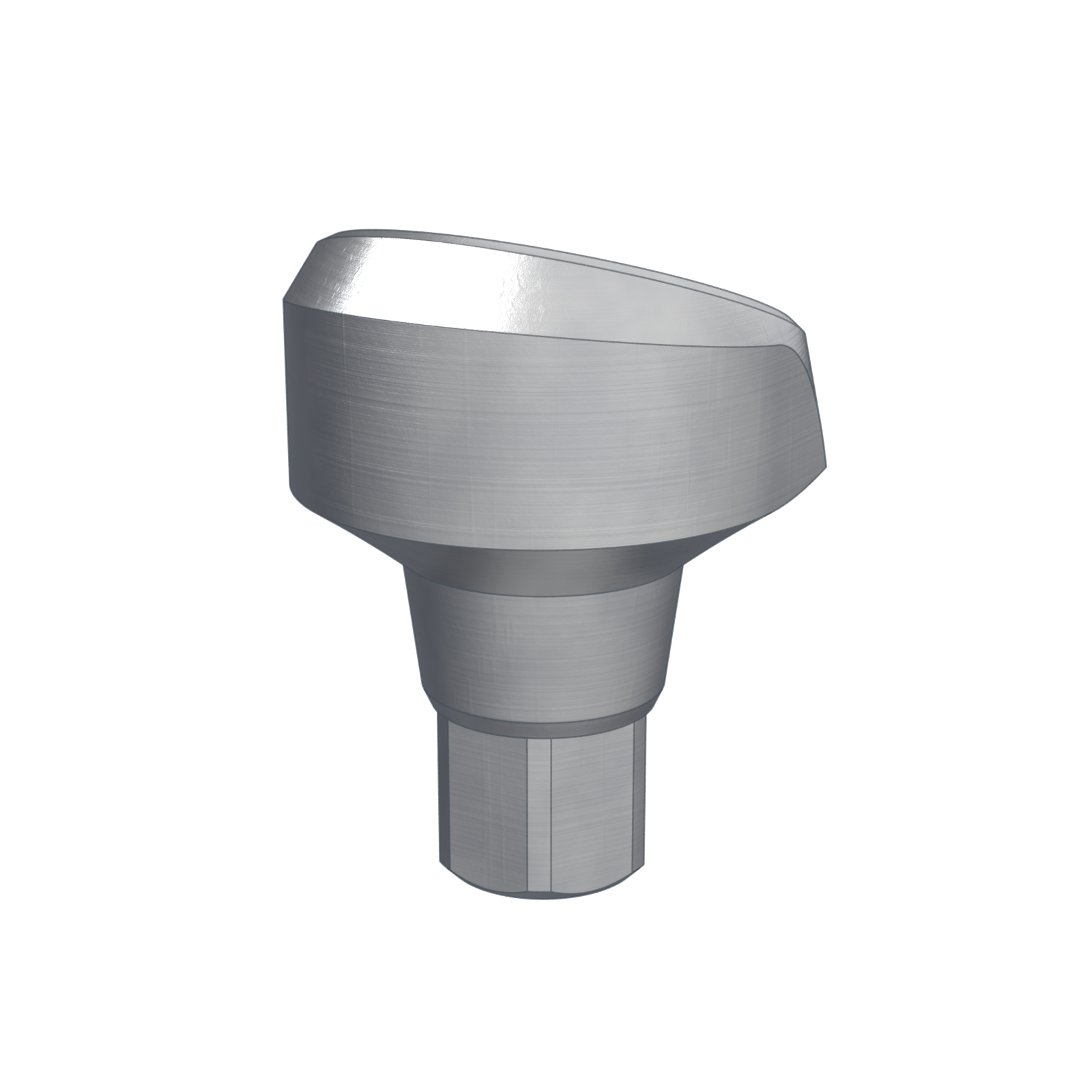

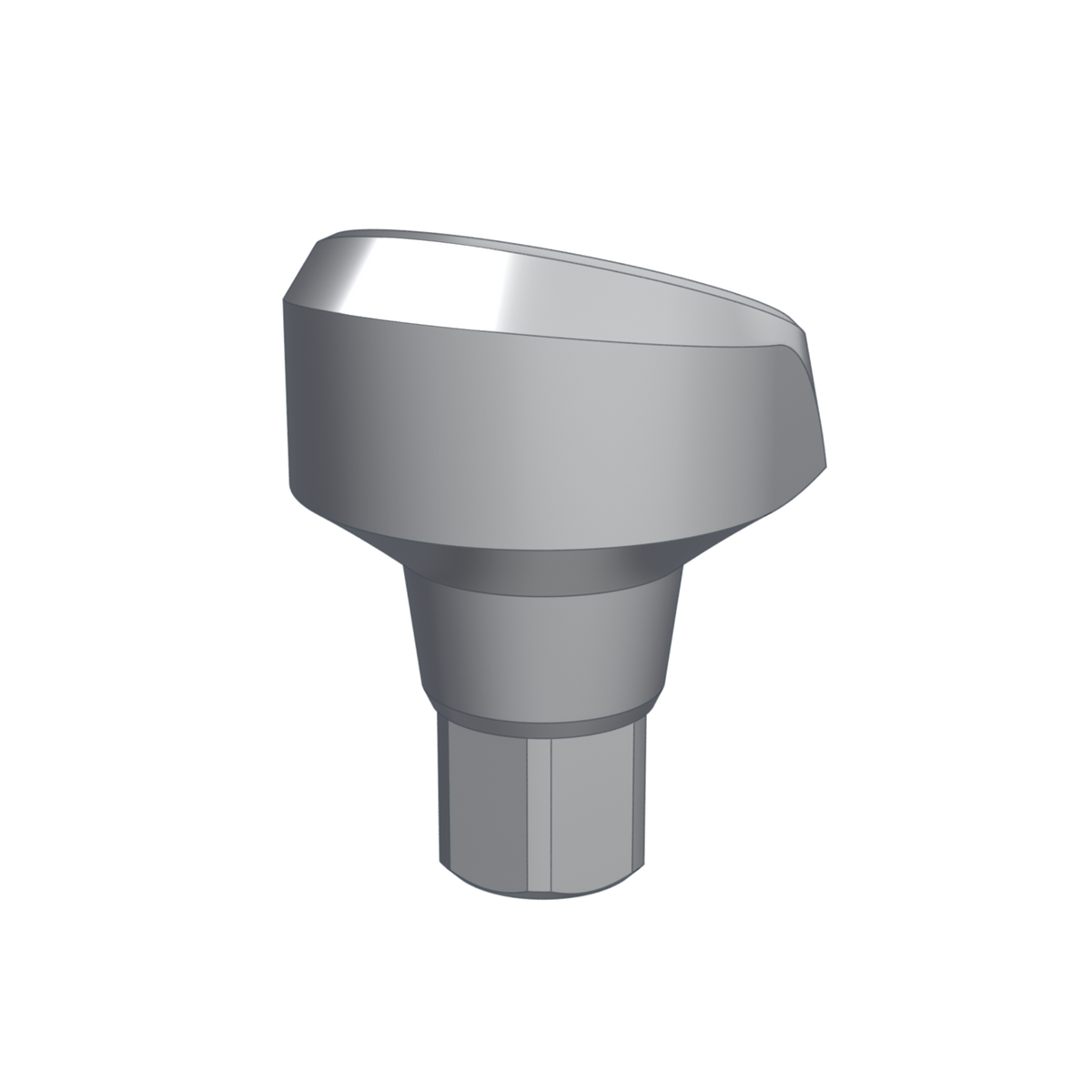

Positioned Type A Multi-Compact Base with Replaceable Prosthetic Components

The Multi-Compact abutment, positioned, type-A is a specially engineered multi-component prosthetic abutment designed to function similarly to angled multi-unit abutments, but with enhanced versatility. The base features an internally threaded design that allows the connection of various prosthetic tops with different shapes and functions, enabling multiple restorative solutions to be used with a single base type.

The positioned Type A variant ensures that a designated flat surface on the connection interface always aligns in the same orientation upon reinsertion. This precise rotational positioning is particularly important in restorations involving multiple implants, where accurate fit and aesthetic symmetry are critical.

One of the key advantages of the Multi-Compact system is that the base can remain fixed while the top components can be freely selected or replaced according to specific clinical or prosthetic needs. This significantly simplifies inventory management and increases the flexibility of the system.

Main Advantages:

• Internally threaded base: Allows secure connection with a range of prosthetic tops.
• Positioned Type A interface: Consistent orientation of the flat surface upon reinsertion.
• System flexibility: One base accommodates multiple clinical configurations.
• Stable, low-profile design: Reliable foundation for screw-retained restorations.
• Biocompatible titanium: Durable, tissue-friendly, and sterilizable medical-grade material.
• Includes fixation screw.

Indications:

The Multi-Compact abutment, positioned, type-A is an ideal choice for screw-retained restorations supported by multiple implants, where precise orientation, low profile, and prosthetic versatility are essential. The interchangeable top components make the system easily adaptable to changing clinical demands.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
