BIONIKA iSy, Anatomic abutment, angled, 15°, positioned, type-B

Brand characteristics

The BIONIKA ISY implant system is compatible with the ISY® platform and features an internal conical connection (Conical-Connection) that ensures high-precision, micromovement-free fitting and optimal load distribution.

The 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term stability.

The spirally micro-grooved, self-locking, and self-compressing thread profile provides strong primary stability, especially in clinical cases designed for immediate loading.

The platform switching design creates a biological seal around the implant shoulder, supporting the natural integration of bone and soft tissues.

With its anatomical root-shaped design, self-cutting and bone-condensing thread structure, the ISY system ensures rapid osseointegration, an aesthetic gingival contour, and reliable long-term stability for all prosthetic applications.

Geometry characteristics

Angulated, Customisable Abutment with Natural Form and Precise Orientation

The Anatomic abutment, angled, 15°, positioned, type-B is an implant-level, customisable (grindable) abutment developed for angle correction in cases where implant placement is not ideal, and for achieving aesthetic and functional restorations. The 15° angulation allows compensation for deviations between the prosthetic and implant axes, while the anatomical form supports the development of a natural gingival contour.

The Type B indexed design means that a defined point of the connection surface always aligns with the same position relative to the top of the abutment. This fixed orientation ensures that the abutment is repositioned in the exact same alignment every time, which is essential in multi-implant cases to maintain coordination between prosthetic components.

Main Advantages:

• 15° angle correction: Helps to compensate for non-optimal implant angulation.
• Anatomical design: Supports a natural appearance with preformed gingival contours.
• Indexed orientation (Type B): Defined point of the connection ensures consistent repositioning.
• Customisable form: Allows individual shaping in clinical or laboratory settings.
• Implant-level fit: Direct and stable connection to the implant.
• Biocompatible titanium: Sterilisable, durable, and clinically reliable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 15°, positioned, type-B is an ideal solution for aesthetic zones or multi-implant restorations where angle correction and precise orientation are essential for achieving a stable and visually pleasing long-term outcome.

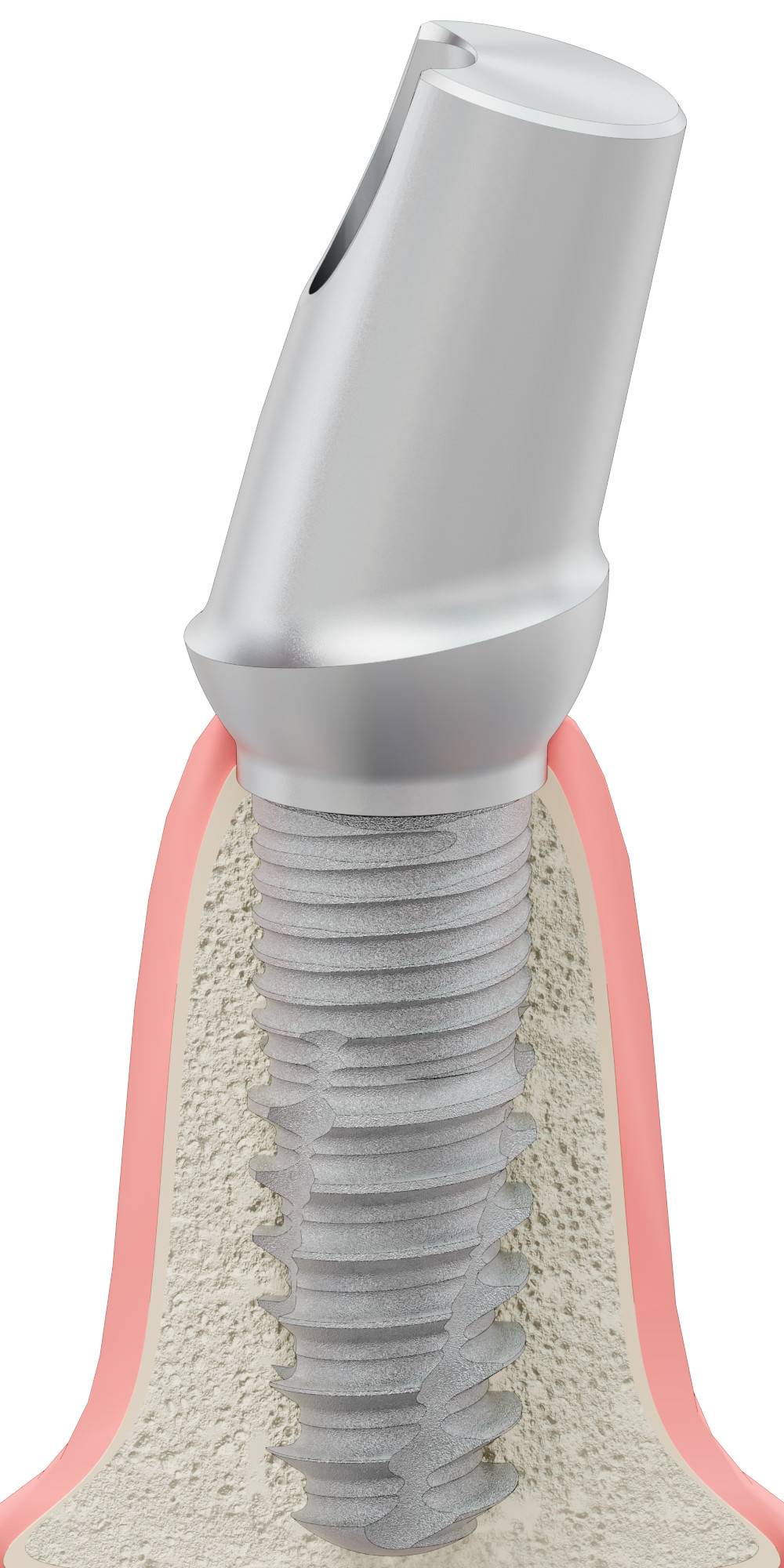

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
