BIONIKA IMPLIE, Multi-unit abutment, angled, positioned, wide, LT2, type-B

Brand characteristics

The BIONIKA IMPLIE implant system utilises a Cone & Hex connection geometry, ensuring precise, micromovement-free fitting and stable force transmission.

Its 22° easily detachable conical angle allows for accurate alignment and optimal load distribution, while the connection directs forces deep within the implant body, reducing stress on the cortical zone.

The conical, spirally micro-grooved thread structure engages firmly with the cortical layer, while the high-pitch, self-compressing spongiosa thread provides rapid bone condensation and excellent primary stability.

With its anatomical root-shaped design and self-cutting, self-locking thread profile, the implant is suitable for immediate loading.

The rounded, self-drilling apex facilitates precise insertion and allows minor directional adjustments during placement.

The BIONIKA IMPLIE system is compatible with the following implant platforms:

• Alpha Bio® CS
• Alpha Bio® NICE® CHC

It offers a precisely fitting and reliable alternative to leading international implant systems, combining Hungarian engineering precision with long-term clinical stability.

Geometry characteristics

Angled Multi-Unit Abutment with Type B Orientation for LT2 System, Wide Design, M1.4 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is a prosthetic abutment designed for connection to implants or intermediate multi-unit bases, offering angular correction in cases where implant axes are not ideally aligned. Its wide profile enhances support for soft tissues and final restorations, particularly in the posterior region.

The Type B position-oriented design ensures that a specific apex of the connection interface always aligns in the same orientation relative to the top of the abutment. This precise orientation is essential for screw-retained restorations involving multiple implants, where alignment of contours, axes, and margins is critical to both aesthetic and functional outcomes.

The abutment features an M1.4 internal thread at the top, used to secure final prosthetic components such as suprastructures or bridge frameworks. The lower portion connects to the LT2 multi-unit platform without the need for a screw, ensuring a stable, geometry-based fit.

Main Advantages:

• Angular correction: Compensates for suboptimal implant angulations.
• Position-oriented design (Type B): A specific apex consistently aligns upon reinsertion.
• Wide profile: Provides greater support and stability for restorations in posterior zones.
• LT2 compatibility: Fully integrates with the corresponding multi-unit platform.
• M1.4 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Long-term durability, tissue-friendly, and sterilizable material.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is an excellent solution for screw-retained restorations on multiple implants, where angular correction, stable support, precise orientation, and full compatibility with the LT2 system are required.

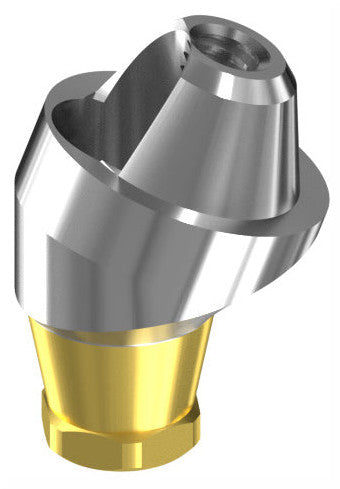

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
