BIONIKA IMPLIE, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A

Brand characteristics

The BIONIKA IMPLIE implant system utilises a Cone & Hex connection geometry, ensuring precise, micromovement-free fitting and stable force transmission.

Its 22° easily detachable conical angle allows for accurate alignment and optimal load distribution, while the connection directs forces deep within the implant body, reducing stress on the cortical zone.

The conical, spirally micro-grooved thread structure engages firmly with the cortical layer, while the high-pitch, self-compressing spongiosa thread provides rapid bone condensation and excellent primary stability.

With its anatomical root-shaped design and self-cutting, self-locking thread profile, the implant is suitable for immediate loading.

The rounded, self-drilling apex facilitates precise insertion and allows minor directional adjustments during placement.

The BIONIKA IMPLIE system is compatible with the following implant platforms:

• Alpha Bio® CS
• Alpha Bio® NICE® CHC

It offers a precisely fitting and reliable alternative to leading international implant systems, combining Hungarian engineering precision with long-term clinical stability.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base, offering angular correction where there is a deviation between the implant axis and the ideal prosthetic axis. Its narrow profile makes it an excellent choice for use in tight interproximal spaces or in the aesthetic zone.

The Type A orientation ensures that a specific flat surface of the connection interface always aligns in the same direction relative to the top of the abutment upon reinsertion. This is particularly advantageous in multi-implant screw-retained restorations where symmetry and axial alignment of prosthetic components are essential.

The M1.6 internal thread located at the top of the abutment enables the secure attachment of various prosthetic components, such as screw-retained bridge frameworks or suprastructures. The bottom of the abutment connects to the multi-unit base via a geometry-based fit, without a retaining screw.

Main Advantages:

• Angular correction: Compensates for deviations in implant angulation.
• Type A orientation: A specific flat surface consistently aligns upon reinsertion.
• Narrow profile: Ideal for limited space and anterior applications.
• LT2.7 compatibility: Ensures precise fit with system-specific multi-unit bases.
• M1.6 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Tissue-friendly, sterilizable, and safe for long-term use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is an ideal solution for screw-retained restorations on multiple implants where angular correction, a narrow profile, precise orientation, and compatibility with the LT2.7 system are required.

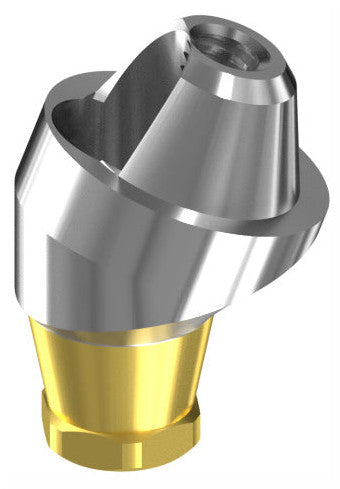

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
