BIONIKA HICON, Universal abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA HiCON implant system combines a Cone, Hex, and Cylinder connection geometry, providing precise, micromovement-free stability through its 25° easily detachable conical angle.

The accurate fit of the cylindrical head extension ensures exceptional tilting resistance, while the deep internal force distribution reduces cortical bone stress and enhances long-term load-bearing performance.

The platform-switching design allows natural bone growth over the implant shoulder, promoting a biological seal and maintaining bone levels.

Its conical, spirally micro-grooved cortical surface and self-locking, radiused thread structure ensure optimal load distribution, rapid osseointegration, and micromovement-free fixation.

The anatomical root-shaped body, high-pitch self-compressing thread, and self-drilling, rounded apex provide precise surgical placement and outstanding primary stability, making it suitable for immediate loading.

The HiCON system is compatible with the ICX® Templant (TP) platform, offering a reliable alternative to premium international implant systems.

Geometry characteristics

Prepable Abutment for Angular Correction with Indexed Orientation and Implant-Level Connection

The Universal abutment, angled, positioned, type-B is a prepable, implant-level abutment developed for cases where precise spatial orientation and angular correction of the prosthetic restoration are required. Its angled design allows for correction of implant axis deviation, while the prepable shape gives full freedom to customize the final contours in clinical or laboratory settings.

The Type B indexing means that a specific point (apex) of the connection always aligns with the same orientation relative to the top of the abutment. This ensures accurate repositioning and consistent orientation of the prosthetic elements, which is particularly important in multiple-implant restorations.

Main Benefits:

• Prepable design: Custom-shapeable to match anatomical and aesthetic requirements.
• Angled geometry: Enables compensation for non-ideal implant angulation.
• Indexed connection (Type B): A defined apex consistently aligns with the top section of the abutment.
• Implant-level fit: Direct and stable connection to the implant for excellent adaptation.
• Biocompatible titanium: Reliable, long-term material suitable for clinical use.
• The product includes the screw.

Application:

The Universal abutment, angled, positioned, type-B is the ideal choice in cases where the prosthetic abutment must be positioned in a defined spatial orientation and both accurate repositioning and custom shaping are essential.

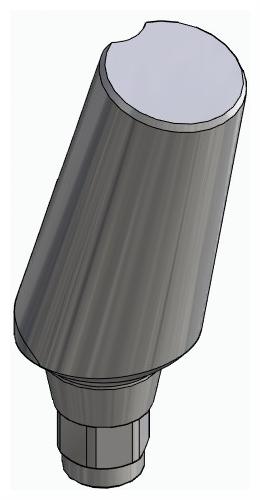

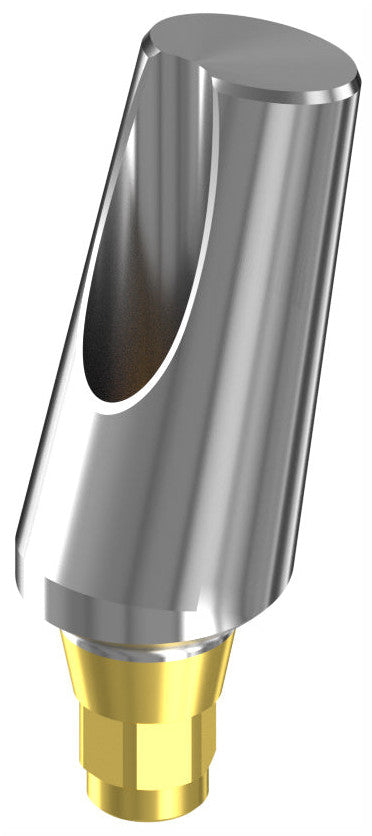

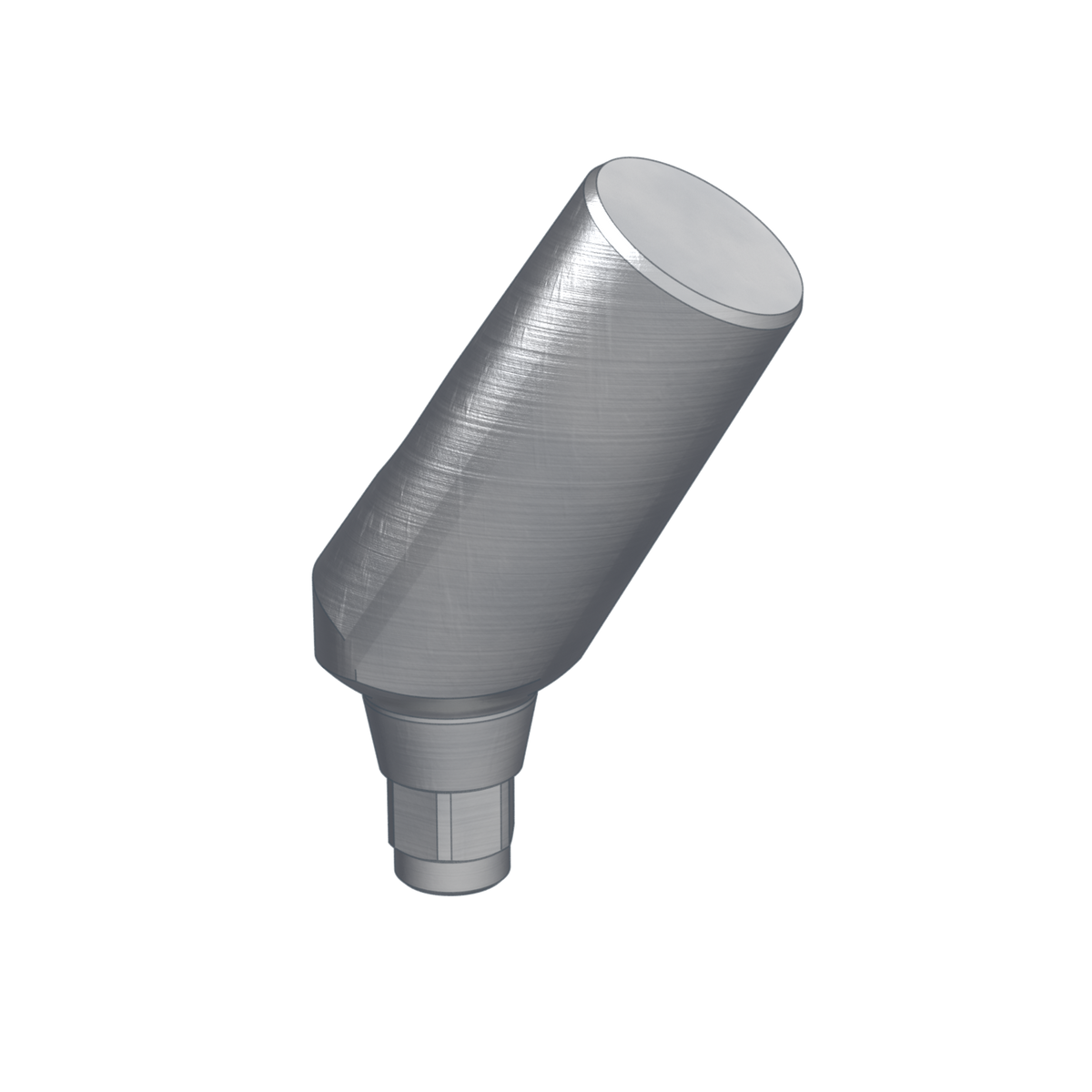

The product image is for illustration purposes only; colour and geometry may vary depending on the selected dimensions.
