BIONIKA HICON, Multi-unit abutment, angled, positioned, wide, LT2, type-A

Brand characteristics

The BIONIKA HiCON implant system combines a Cone, Hex, and Cylinder connection geometry, providing precise, micromovement-free stability through its 25° easily detachable conical angle.

The accurate fit of the cylindrical head extension ensures exceptional tilting resistance, while the deep internal force distribution reduces cortical bone stress and enhances long-term load-bearing performance.

The platform-switching design allows natural bone growth over the implant shoulder, promoting a biological seal and maintaining bone levels.

Its conical, spirally micro-grooved cortical surface and self-locking, radiused thread structure ensure optimal load distribution, rapid osseointegration, and micromovement-free fixation.

The anatomical root-shaped body, high-pitch self-compressing thread, and self-drilling, rounded apex provide precise surgical placement and outstanding primary stability, making it suitable for immediate loading.

The HiCON system is compatible with the ICX® Templant (TP) platform, offering a reliable alternative to premium international implant systems.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2 System, Wide Design with M1.4 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2, type-A is a prosthetic component designed for implant-level or intermediate multi-unit connections. This angled abutment facilitates alignment between the implant axis and the prosthetic direction, while its wide profile provides enhanced stability, especially in posterior regions or high-load restorations.

The Type A position-oriented design ensures that a specific flat surface of the connection interface always aligns in the same orientation relative to the top of the abutment. This allows for consistent and accurate positioning, which is crucial for the functional and aesthetic integration of multi-implant prostheses.

The M1.4 internal thread located on the top of the abutment enables secure fixation of final prosthetic elements, such as bridge frameworks or other screw-retained components. The lower portion is geometrically matched to the LT2 multi-unit platform, ensuring stable, screwless insertion.

Main Advantages:

• Angular correction: Compensates for implant axis deviation.
• Position-oriented (Type A): The same flat face of the connection always aligns during reinsertion.
• Wide design: Provides increased support for soft tissues and prosthetic restorations.
• LT2 compatibility: Fully integrates with LT2 platform systems.
• M1.4 internal thread: Allows fixation of screw-retained prosthetic components.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly medical-grade material.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2, type-A is an ideal solution for screw-retained prosthetic restorations based on multiple implants, where angular correction, enhanced stability, precise orientation, and compatibility with the LT2 system are essential.

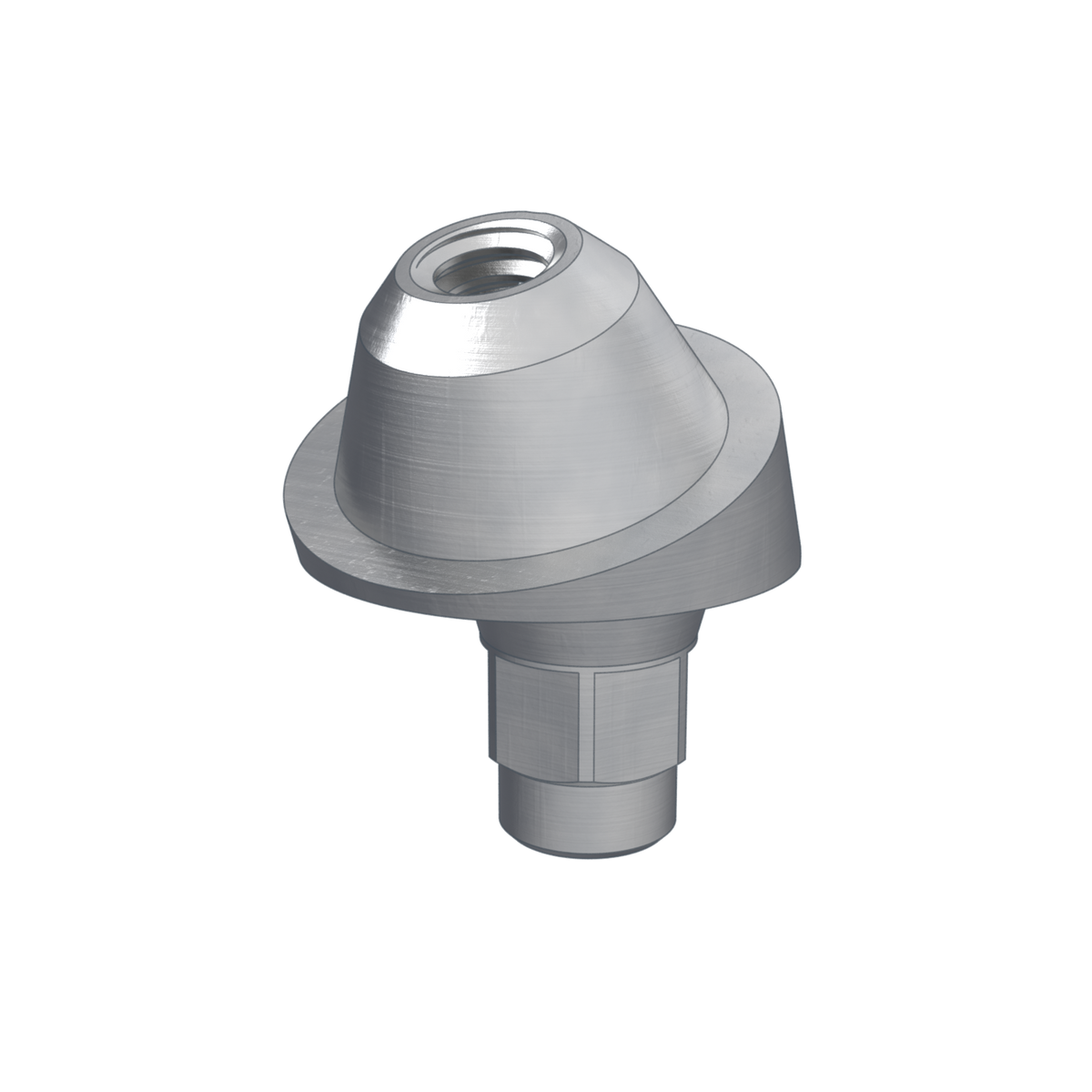

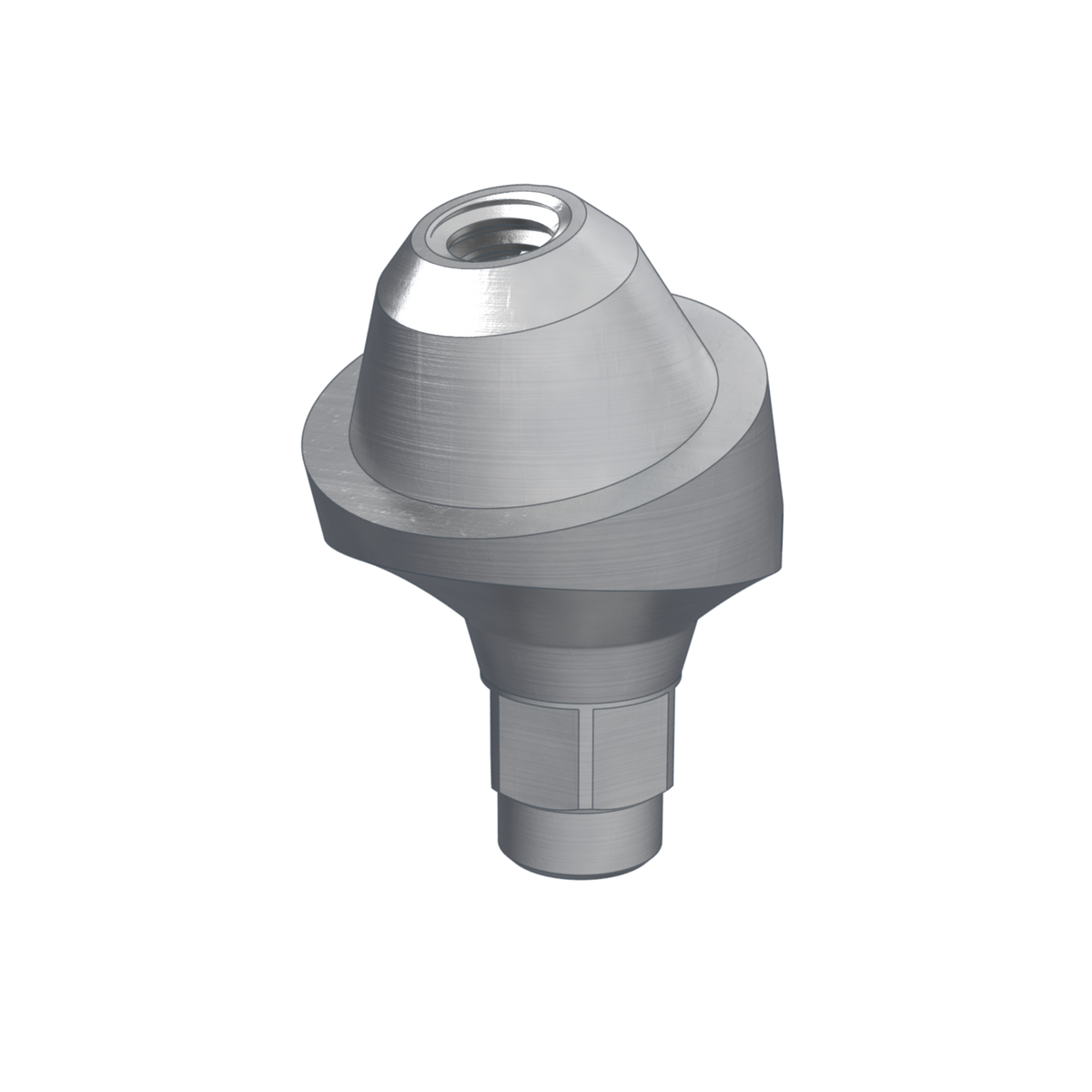

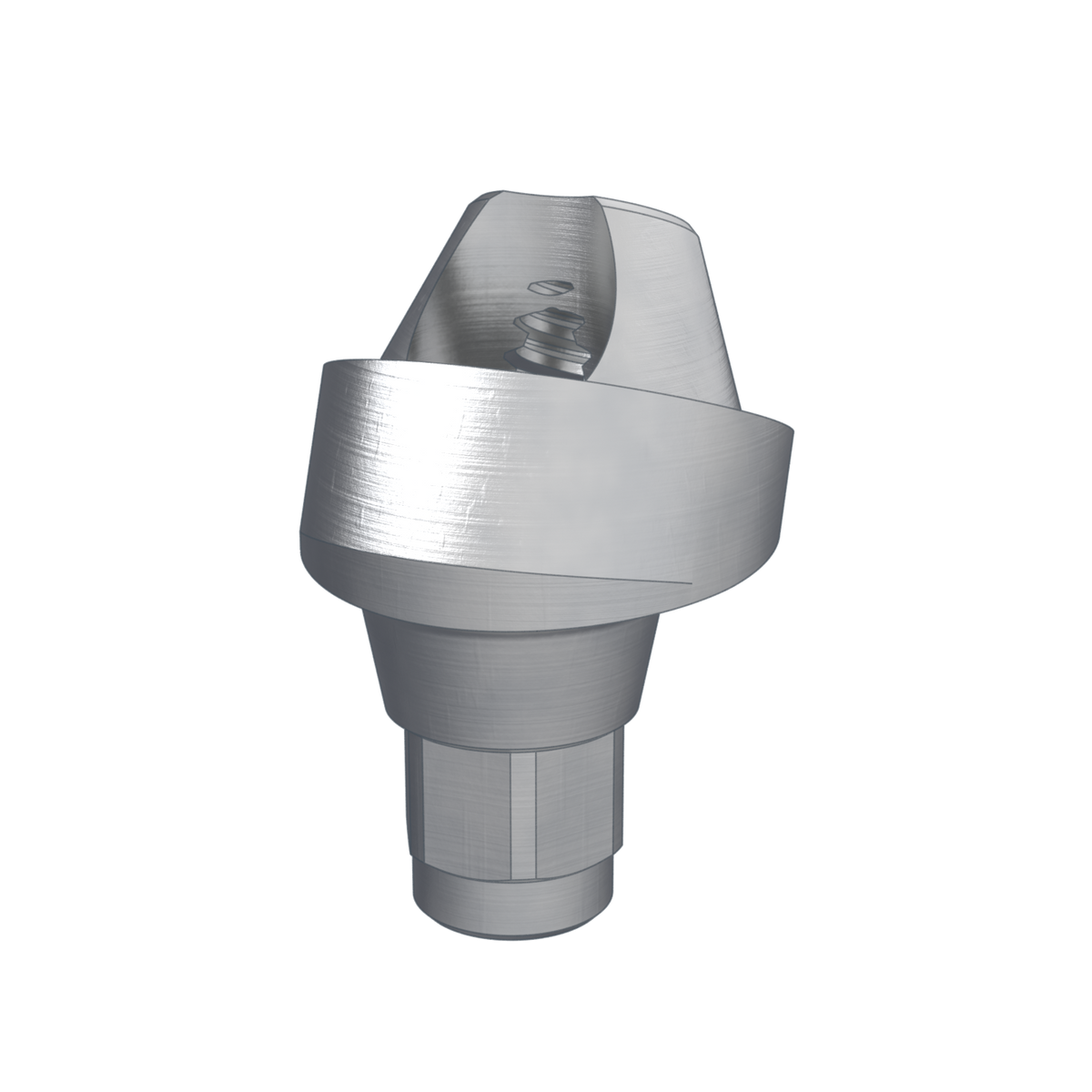

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
