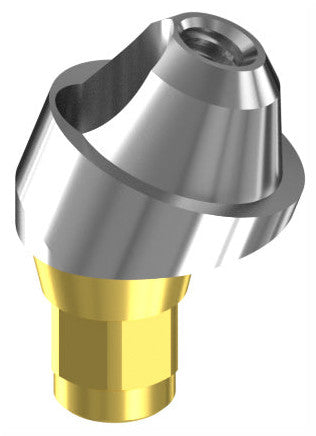

BIONIKA HICON, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A

Brand characteristics

The BIONIKA HiCON implant system combines a Cone, Hex, and Cylinder connection geometry, providing precise, micromovement-free stability through its 25° easily detachable conical angle.

The accurate fit of the cylindrical head extension ensures exceptional tilting resistance, while the deep internal force distribution reduces cortical bone stress and enhances long-term load-bearing performance.

The platform-switching design allows natural bone growth over the implant shoulder, promoting a biological seal and maintaining bone levels.

Its conical, spirally micro-grooved cortical surface and self-locking, radiused thread structure ensure optimal load distribution, rapid osseointegration, and micromovement-free fixation.

The anatomical root-shaped body, high-pitch self-compressing thread, and self-drilling, rounded apex provide precise surgical placement and outstanding primary stability, making it suitable for immediate loading.

The HiCON system is compatible with the ICX® Templant (TP) platform, offering a reliable alternative to premium international implant systems.

Geometry characteristics

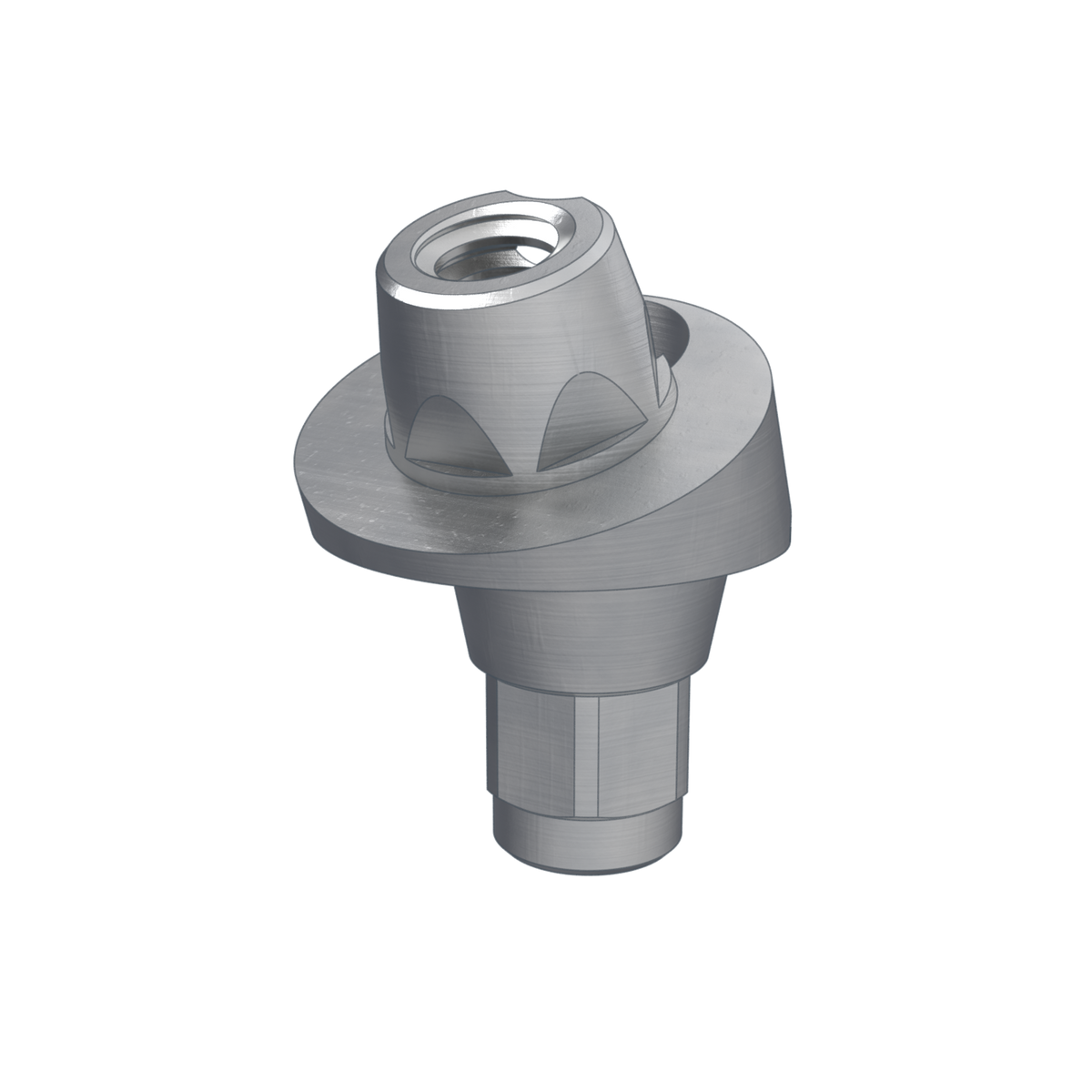

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base, offering angular correction where there is a deviation between the implant axis and the ideal prosthetic axis. Its narrow profile makes it an excellent choice for use in tight interproximal spaces or in the aesthetic zone.

The Type A orientation ensures that a specific flat surface of the connection interface always aligns in the same direction relative to the top of the abutment upon reinsertion. This is particularly advantageous in multi-implant screw-retained restorations where symmetry and axial alignment of prosthetic components are essential.

The M1.6 internal thread located at the top of the abutment enables the secure attachment of various prosthetic components, such as screw-retained bridge frameworks or suprastructures. The bottom of the abutment connects to the multi-unit base via a geometry-based fit, without a retaining screw.

Main Advantages:

• Angular correction: Compensates for deviations in implant angulation.
• Type A orientation: A specific flat surface consistently aligns upon reinsertion.
• Narrow profile: Ideal for limited space and anterior applications.
• LT2.7 compatibility: Ensures precise fit with system-specific multi-unit bases.
• M1.6 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Tissue-friendly, sterilizable, and safe for long-term use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is an ideal solution for screw-retained restorations on multiple implants where angular correction, a narrow profile, precise orientation, and compatibility with the LT2.7 system are required.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
