BIONIKA HICON, Multi-Compact abutment, positioned, type-A

Brand characteristics

The BIONIKA HiCON implant system combines a Cone, Hex, and Cylinder connection geometry, providing precise, micromovement-free stability through its 25° easily detachable conical angle.

The accurate fit of the cylindrical head extension ensures exceptional tilting resistance, while the deep internal force distribution reduces cortical bone stress and enhances long-term load-bearing performance.

The platform-switching design allows natural bone growth over the implant shoulder, promoting a biological seal and maintaining bone levels.

Its conical, spirally micro-grooved cortical surface and self-locking, radiused thread structure ensure optimal load distribution, rapid osseointegration, and micromovement-free fixation.

The anatomical root-shaped body, high-pitch self-compressing thread, and self-drilling, rounded apex provide precise surgical placement and outstanding primary stability, making it suitable for immediate loading.

The HiCON system is compatible with the ICX® Templant (TP) platform, offering a reliable alternative to premium international implant systems.

Geometry characteristics

Positioned Type A Multi-Compact Base with Replaceable Prosthetic Components

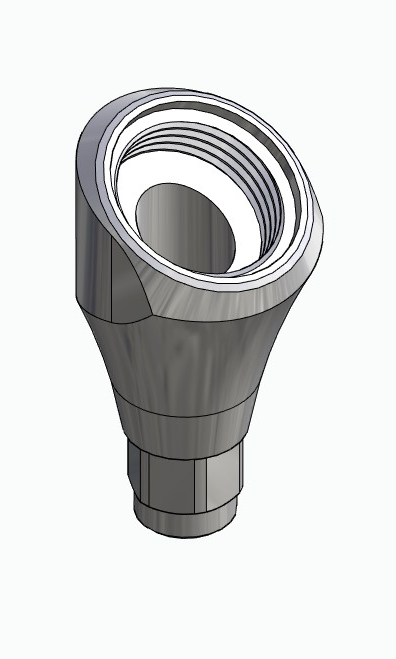

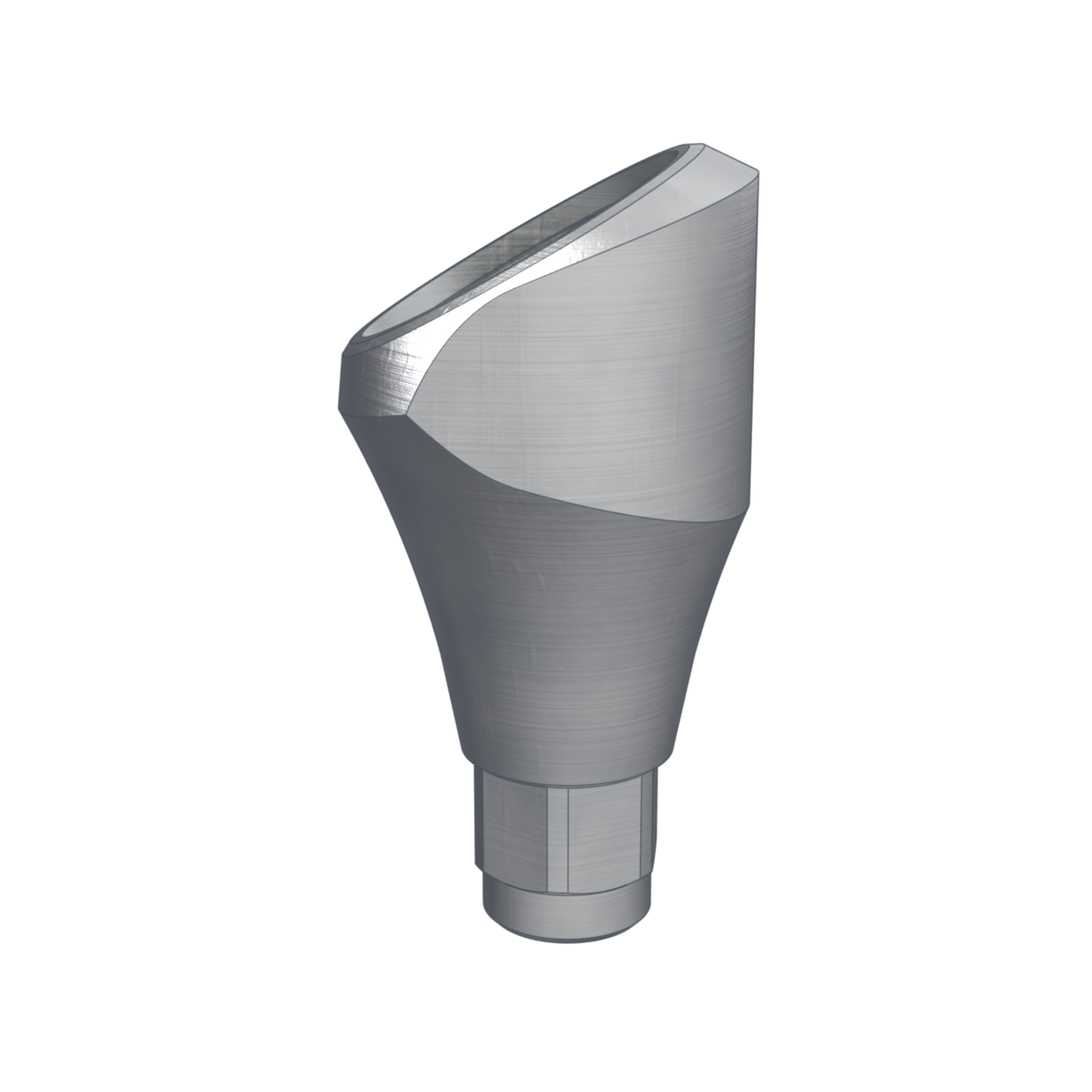

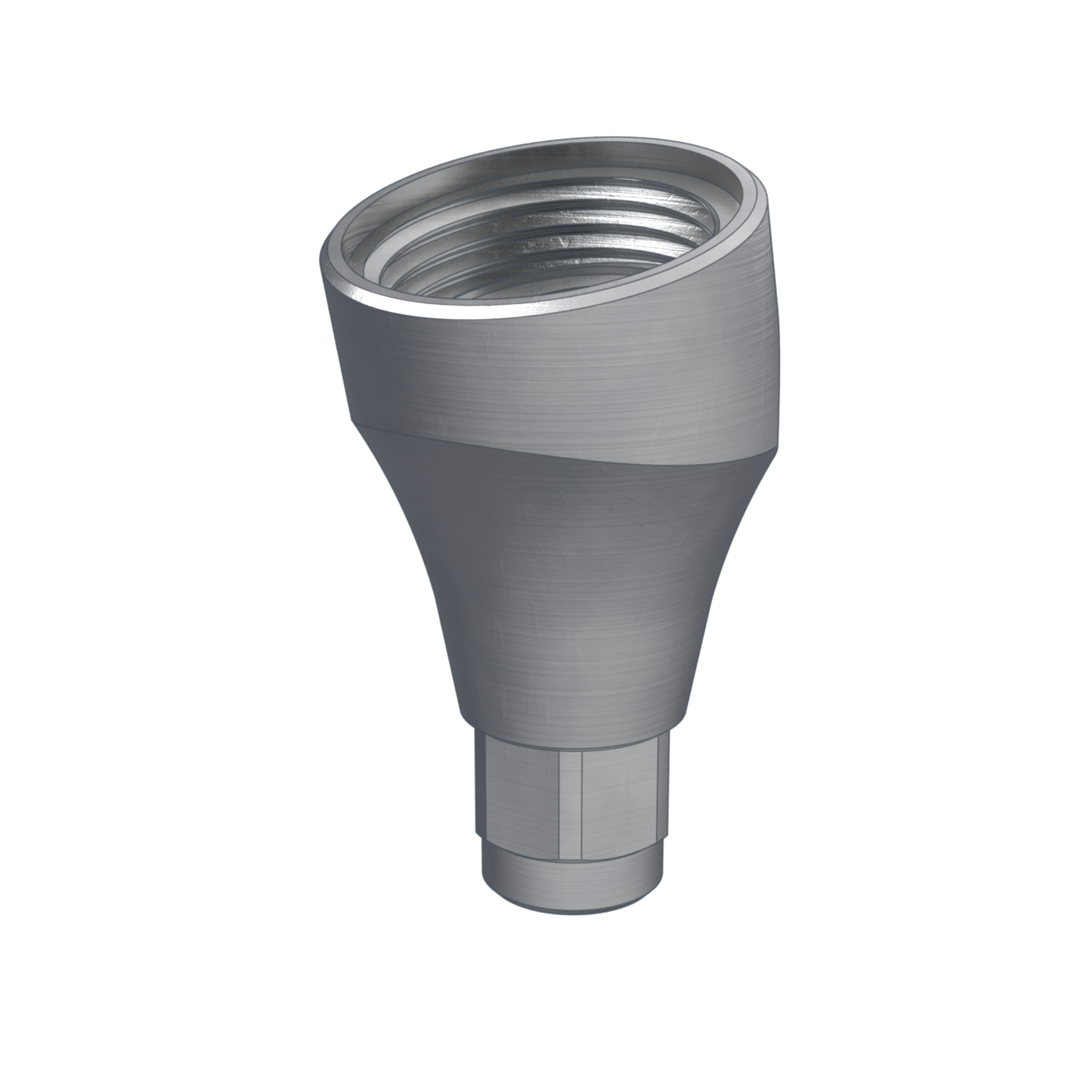

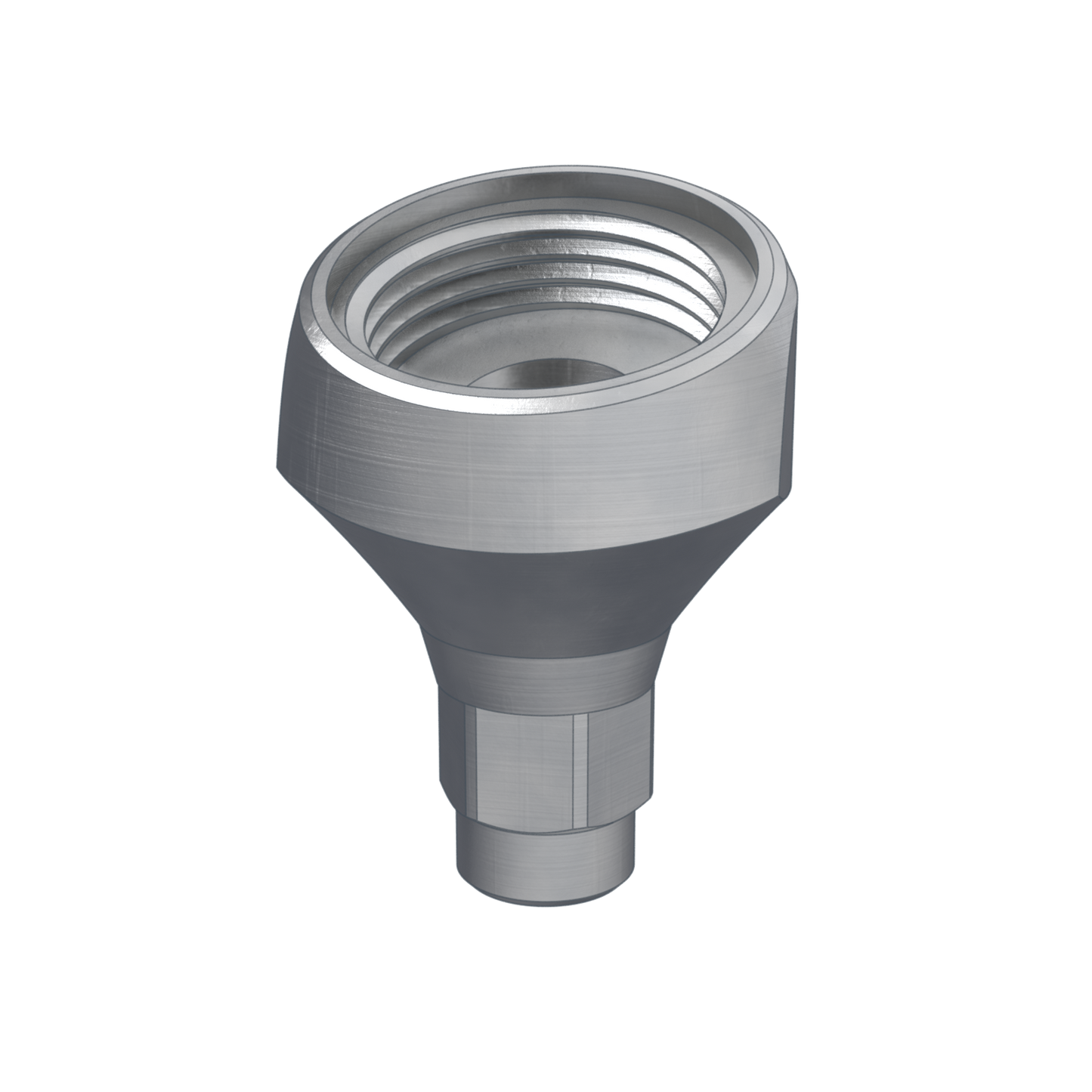

The Multi-Compact abutment, positioned, type-A is a specially engineered multi-component prosthetic abutment designed to function similarly to angled multi-unit abutments, but with enhanced versatility. The base features an internally threaded design that allows the connection of various prosthetic tops with different shapes and functions, enabling multiple restorative solutions to be used with a single base type.

The positioned Type A variant ensures that a designated flat surface on the connection interface always aligns in the same orientation upon reinsertion. This precise rotational positioning is particularly important in restorations involving multiple implants, where accurate fit and aesthetic symmetry are critical.

One of the key advantages of the Multi-Compact system is that the base can remain fixed while the top components can be freely selected or replaced according to specific clinical or prosthetic needs. This significantly simplifies inventory management and increases the flexibility of the system.

Main Advantages:

• Internally threaded base: Allows secure connection with a range of prosthetic tops.
• Positioned Type A interface: Consistent orientation of the flat surface upon reinsertion.
• System flexibility: One base accommodates multiple clinical configurations.
• Stable, low-profile design: Reliable foundation for screw-retained restorations.
• Biocompatible titanium: Durable, tissue-friendly, and sterilizable medical-grade material.
• Includes fixation screw.

Indications:

The Multi-Compact abutment, positioned, type-A is an ideal choice for screw-retained restorations supported by multiple implants, where precise orientation, low profile, and prosthetic versatility are essential. The interchangeable top components make the system easily adaptable to changing clinical demands.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
