BIONIKA FP, Universal abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA FP implant system is compatible with the Fullplant® platform and features a conical and hexagonal (Cone & Hex) connection geometry that ensures precise, micromovement-free fitting and balanced load transfer.

The 24° cone angle directs forces deep into the implant body, reducing bone stress and enhancing long-term stability.

The spirally micro-grooved, self-locking, and self-compressing thread profile provides excellent primary stability, while the platform switching design promotes natural adaptation of bone and soft tissues, creating a biological seal around the implant shoulder.

The anatomical root-shaped, self-cutting, and bone-condensing thread design allows for immediate loading, ensuring rapid osseointegration and an aesthetic outcome.

The BIONIKA FP system offers a reliable solution for stable, precise, and long-term sustainable implantology applications.

Geometry characteristics

Prepable Abutment for Angular Correction with Indexed Orientation and Implant-Level Connection

The Universal abutment, angled, positioned, type-B is a prepable, implant-level abutment developed for cases where precise spatial orientation and angular correction of the prosthetic restoration are required. Its angled design allows for correction of implant axis deviation, while the prepable shape gives full freedom to customize the final contours in clinical or laboratory settings.

The Type B indexing means that a specific point (apex) of the connection always aligns with the same orientation relative to the top of the abutment. This ensures accurate repositioning and consistent orientation of the prosthetic elements, which is particularly important in multiple-implant restorations.

Main Benefits:

• Prepable design: Custom-shapeable to match anatomical and aesthetic requirements.
• Angled geometry: Enables compensation for non-ideal implant angulation.
• Indexed connection (Type B): A defined apex consistently aligns with the top section of the abutment.
• Implant-level fit: Direct and stable connection to the implant for excellent adaptation.
• Biocompatible titanium: Reliable, long-term material suitable for clinical use.
• The product includes the screw.

Application:

The Universal abutment, angled, positioned, type-B is the ideal choice in cases where the prosthetic abutment must be positioned in a defined spatial orientation and both accurate repositioning and custom shaping are essential.

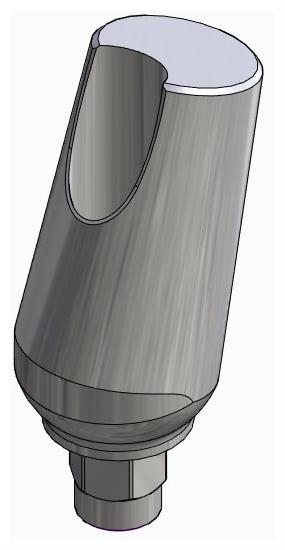

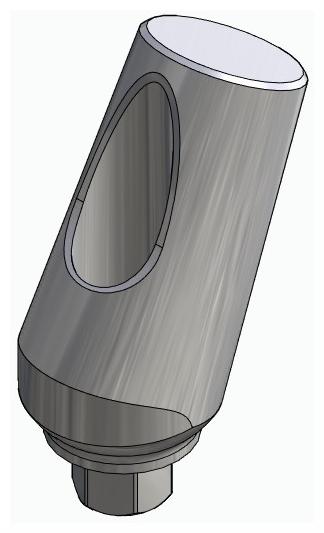

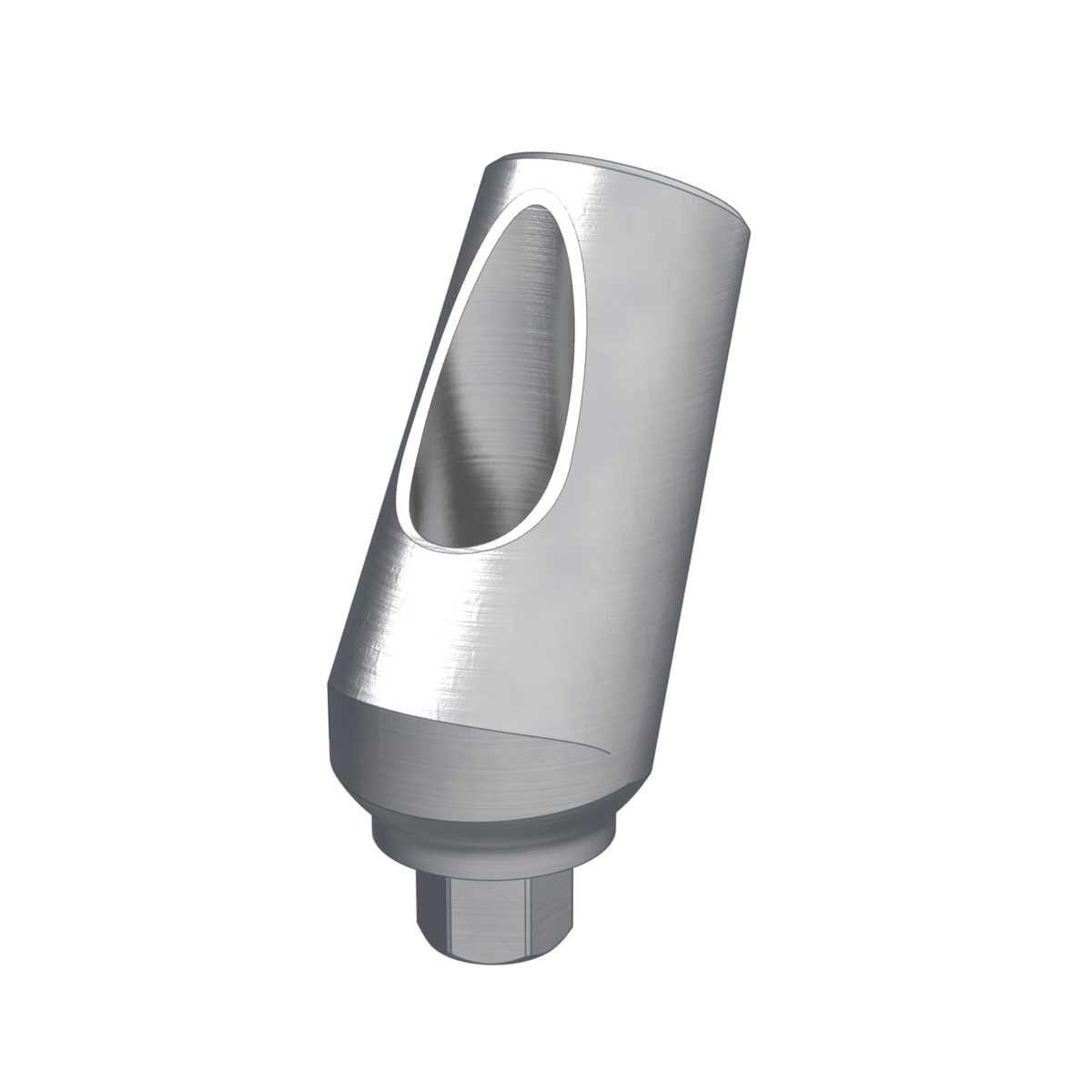

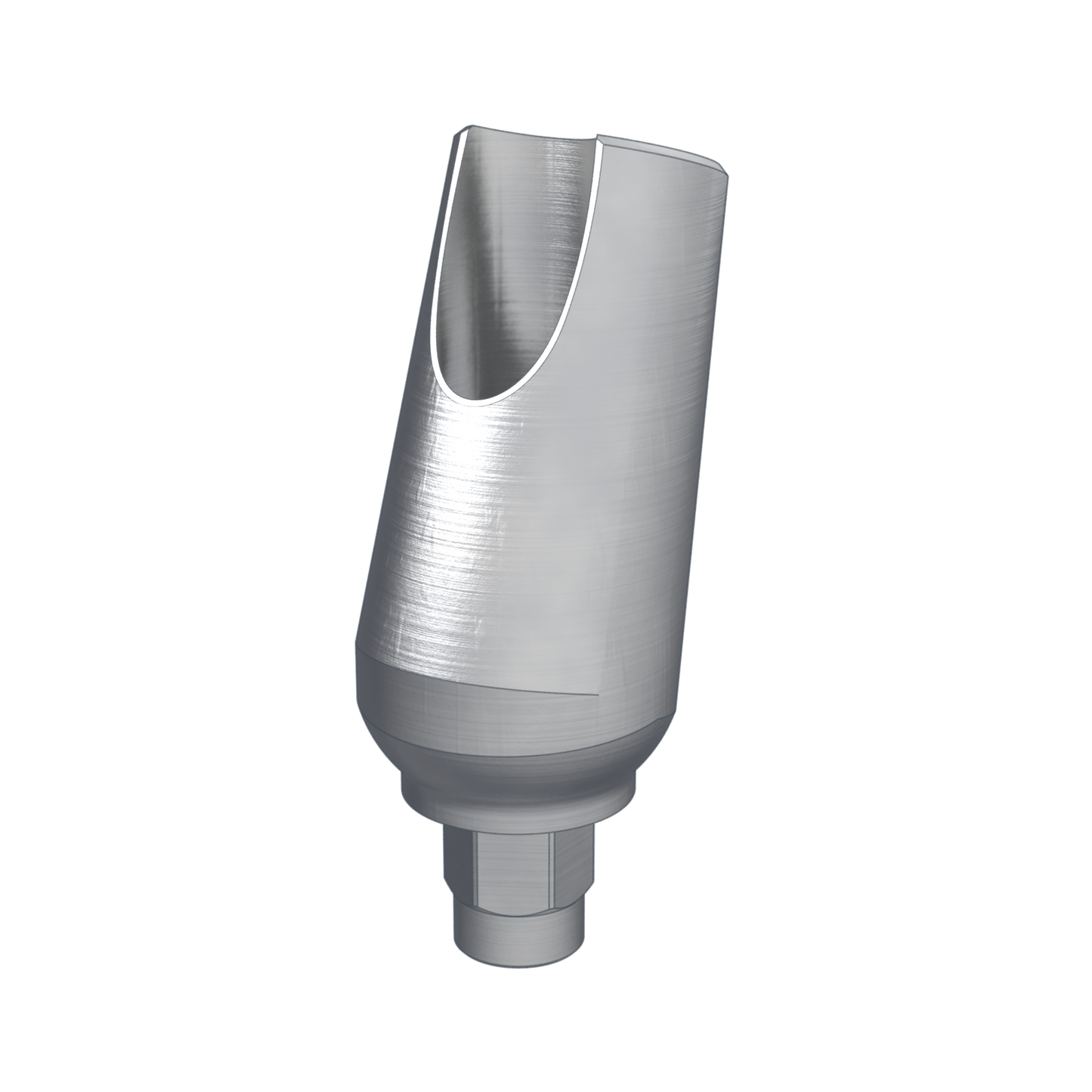

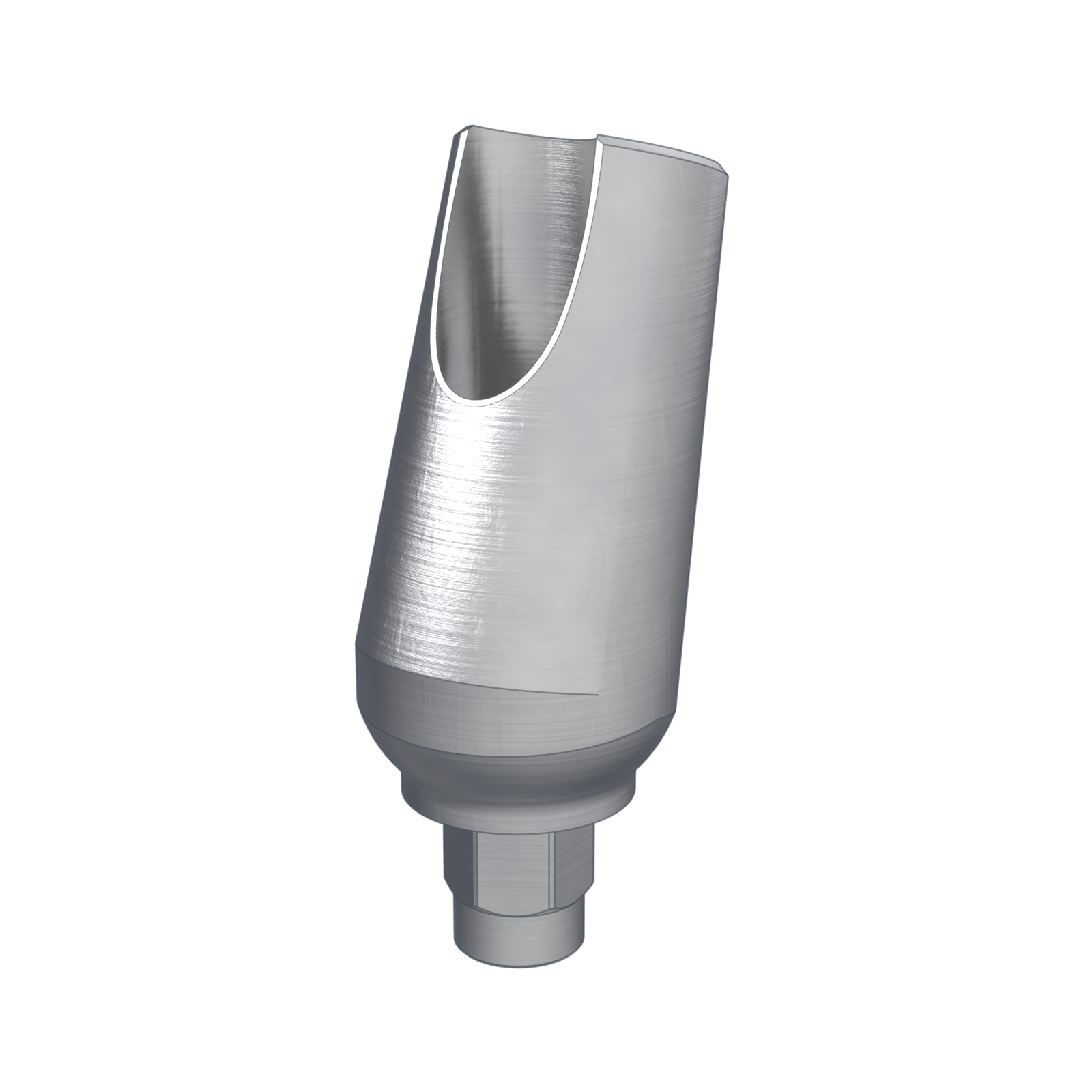

The product image is for illustration purposes only; colour and geometry may vary depending on the selected dimensions.
