BIONIKA FP, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B

Brand characteristics

The BIONIKA FP implant system is compatible with the Fullplant® platform and features a conical and hexagonal (Cone & Hex) connection geometry that ensures precise, micromovement-free fitting and balanced load transfer.

The 24° cone angle directs forces deep into the implant body, reducing bone stress and enhancing long-term stability.

The spirally micro-grooved, self-locking, and self-compressing thread profile provides excellent primary stability, while the platform switching design promotes natural adaptation of bone and soft tissues, creating a biological seal around the implant shoulder.

The anatomical root-shaped, self-cutting, and bone-condensing thread design allows for immediate loading, ensuring rapid osseointegration and an aesthetic outcome.

The BIONIKA FP system offers a reliable solution for stable, precise, and long-term sustainable implantology applications.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base. It provides angular correction, particularly useful in cases where implants are not inserted parallel to one another. Its narrow design is especially advantageous in anterior regions or tight interproximal spaces, where aesthetics and space efficiency are critical.

The Type B position-orientation ensures that a specific point of the connection surface always aligns in the same direction relative to the top of the abutment upon reinsertion. This allows for accurate orientation and consistent seating, which is essential in screw-retained restorations on multiple implants.

The M1.6 internal thread is located at the top of the abutment, enabling the fixation of various prosthetic components such as bridge frameworks or custom restorations. The lower connection is designed to fit the LT2.7 platform geometry without a retaining screw.

Main Advantages:

• Angular correction: Aligns implant axes with prosthetic orientation.
• Type B orientation: A defined point of the interface aligns consistently upon reinsertion.
• Narrow design: Ideal for use in narrow spaces and the aesthetic zone.
• LT2.7 compatibility: Precisely fits the corresponding multi-unit platform.
• M1.6 internal thread: Suitable for securing screw-retained prosthetic components.
• Biocompatible titanium: Durable, sterilizable, and safe for clinical use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is the ideal solution for screw-retained restorations on multiple implants when angular correction, narrow profile, and reliable orientation are required along with full compatibility with the LT2.7 platform.

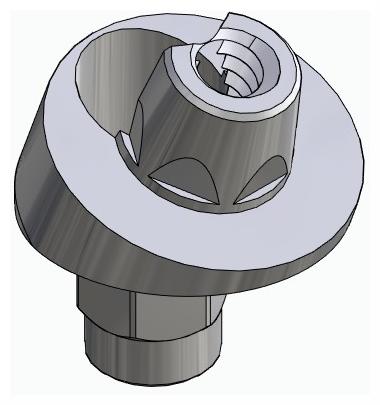

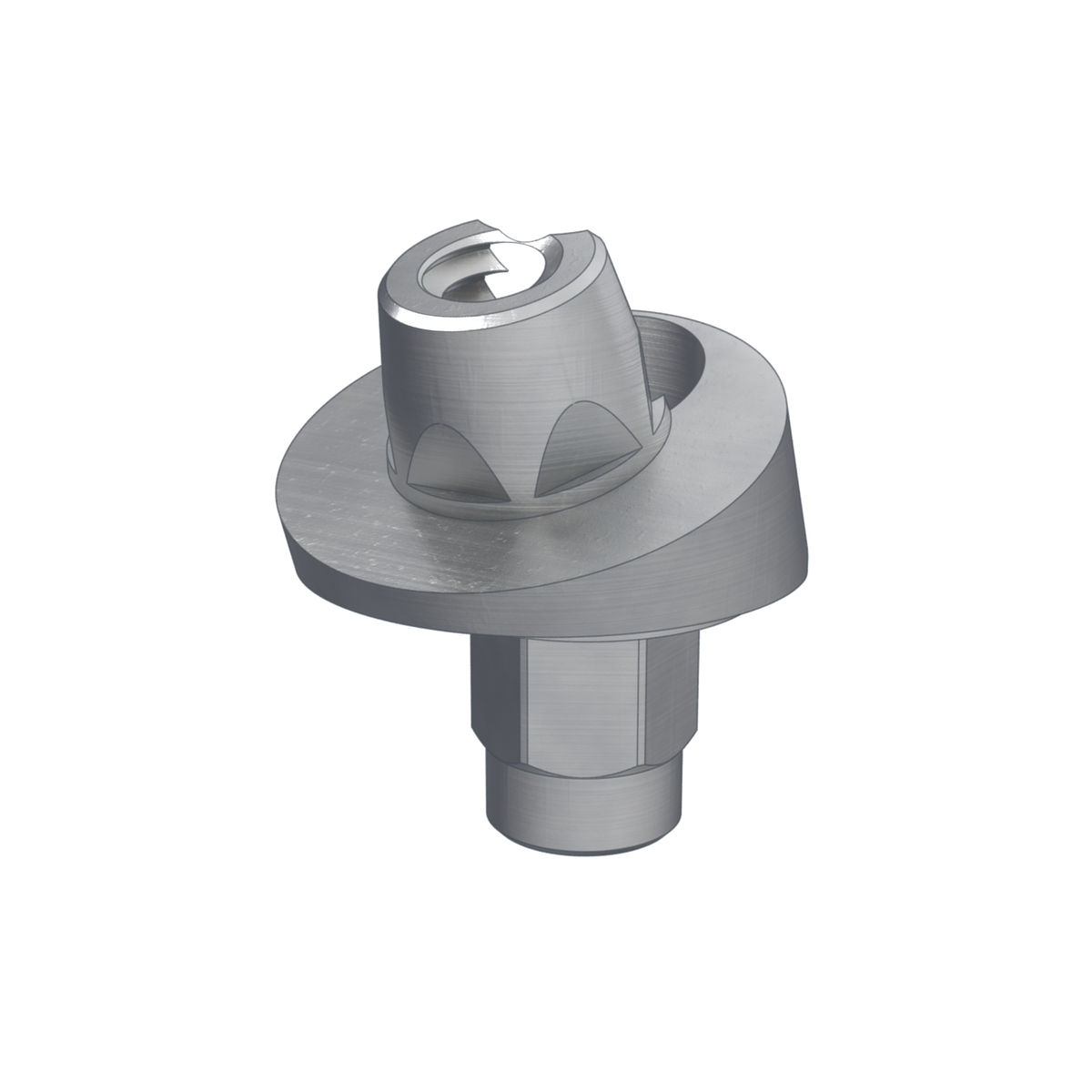

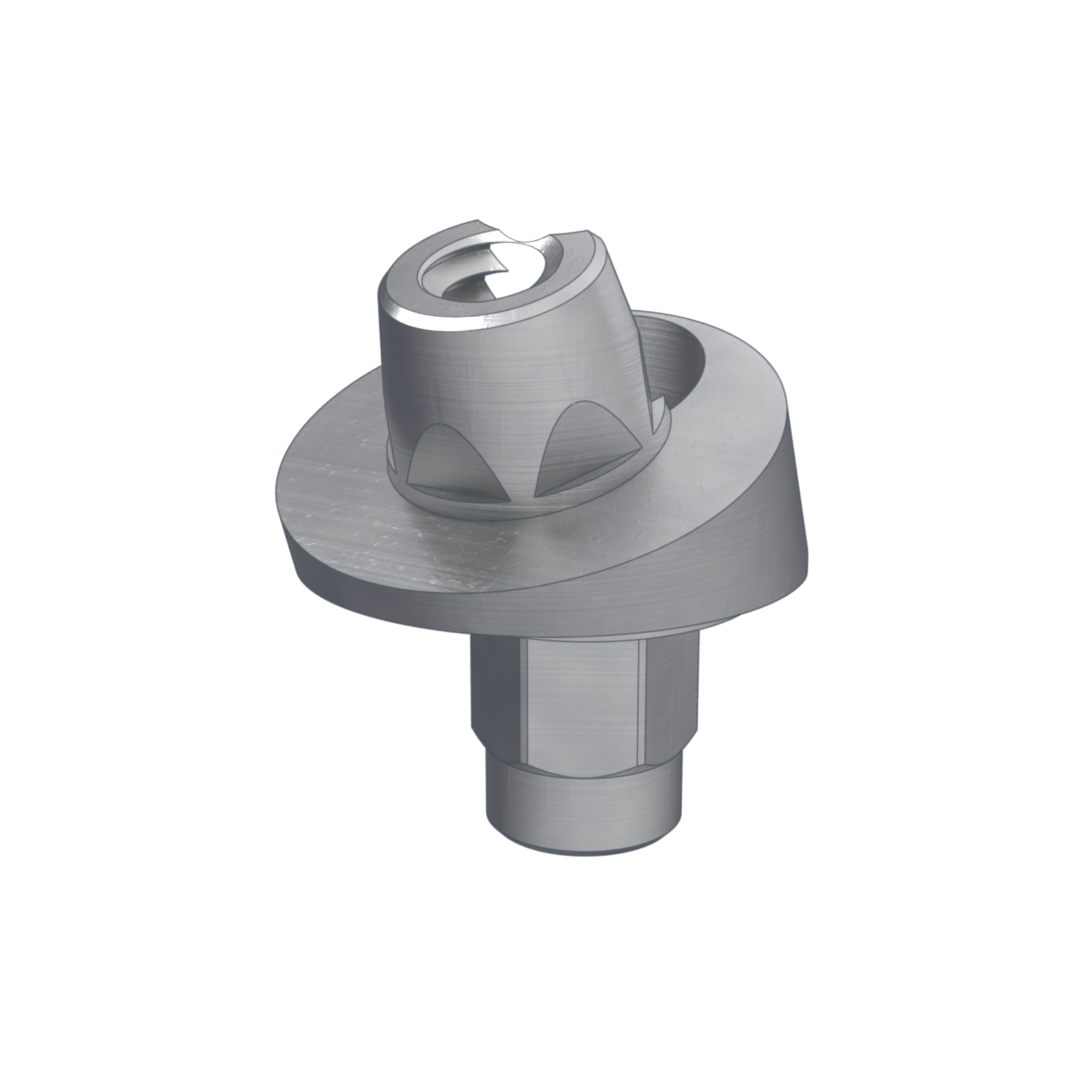

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
