BIONIKA ECOPLANT, Multi-unit SR abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA ECOplant implant system combines a Cone, Hex, and Cylinder connection geometry, providing a proven, precise, and micromovement-free fit widely recognised in engineering practice.

The 30° conical angle ensures optimal force transmission while directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level supports long-term bone preservation, while the platform-switching design enables natural soft-tissue closure, creating a biological seal around the implant shoulder.

The spirally micro-grooved, self-locking thread structure and cycloid thread profile effectively dissipate dynamic forces, maintaining micromovement-free stability and promoting rapid osseointegration.

With its anatomical root-shaped design, deep thread profile, and bone-condensing geometry, the ECOplant implant ensures excellent primary stability and allows for immediate loading when clinically indicated.

The rounded apex facilitates precise surgical placement and minimises bone stress during insertion.

Geometry characteristics

Angled, Indexed SR-Type Abutment for Screw-Retained Restorations with B-Type Orientation

The Multi-unit SR abutment, angled, positioned, type-B is an angulated prosthetic abutment for the SR (Screw-Retained) system, designed to compensate for non-ideal implant angulation. Its angled form allows alignment of the prosthetic axis with functional and aesthetic requirements, while providing precise indexed positioning.

The B-Type orientation ensures that a specific point (corner) on the connection surface always returns to the same position relative to the top of the abutment upon reinsertion. This guarantees consistent and repeatable positioning of the restoration, which is particularly important in multi-implant, screw-retained solutions.

A key benefit of the SR system is that the entire prosthetic structure can be screw-retained without cement, allowing restorations to remain accessible and removable for maintenance or servicing. The lower part of the abutment fits the SR-compatible multi-unit platform, while the upper part is designed to accept the screw-retained prosthetic component.

Main Advantages:

• Angulation correction: Enables compensation for implant misalignment.
• B-Type orientation: The connector’s corner always aligns in the same direction on reinsertion.
• SR system compatibility: Suitable for cement-free, screw-retained restorations.
• Precise positioning: Ensures optimal fit for multi-implant prosthetics.
• Biocompatible titanium: Durable, sterilisable, and tissue-friendly material.
• The product includes the retaining screw.

Indications:

The Multi-unit SR abutment, angled, positioned, type-B is the ideal solution for screw-retained, angulated restorations supported by multiple implants, where precise orientation, removability, and full system compatibility are essential.

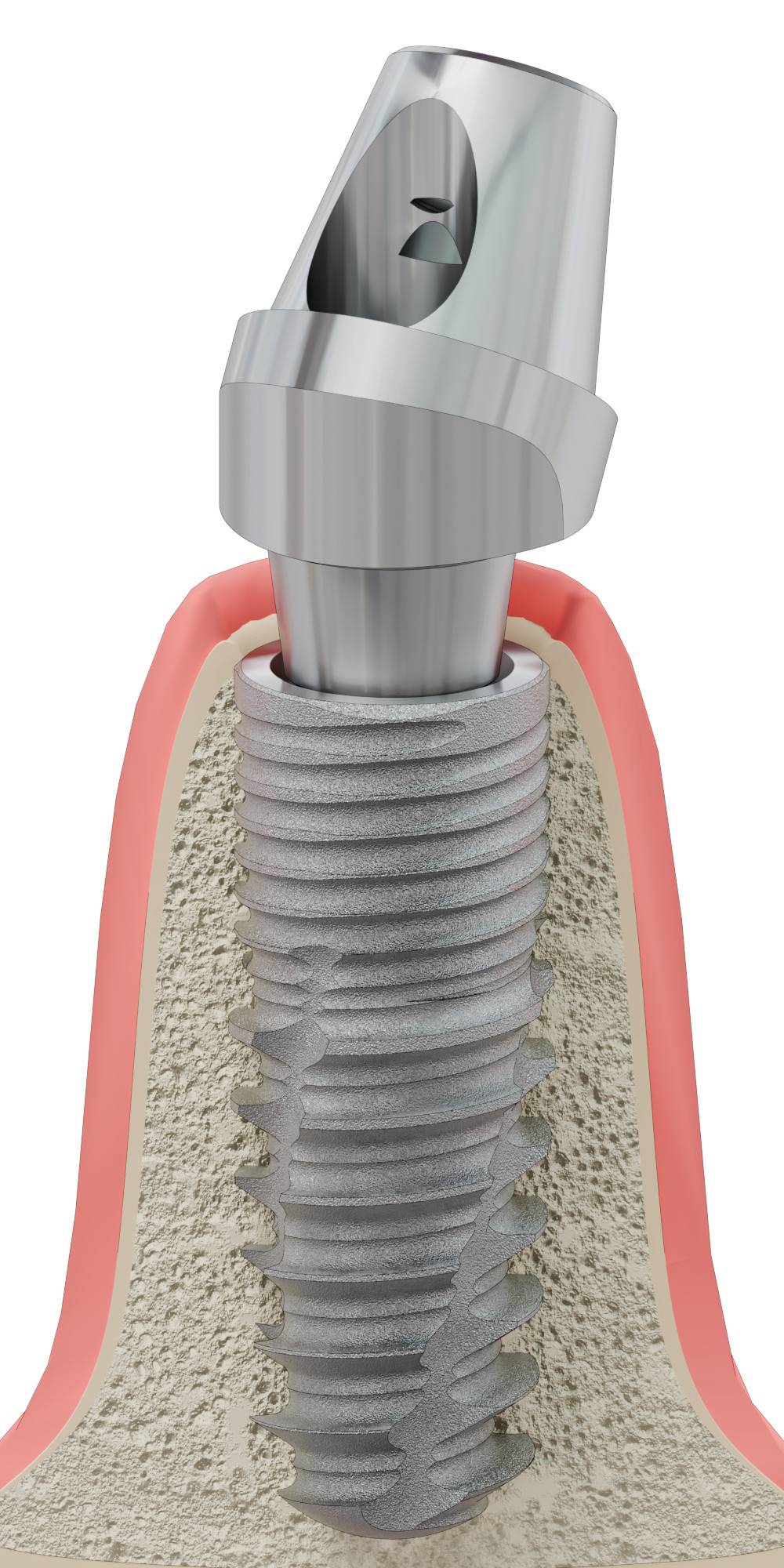

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
