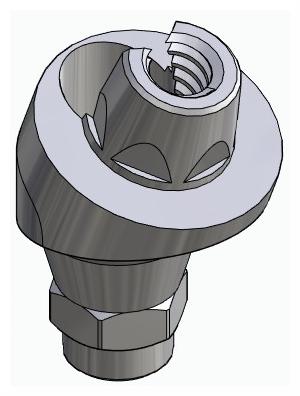

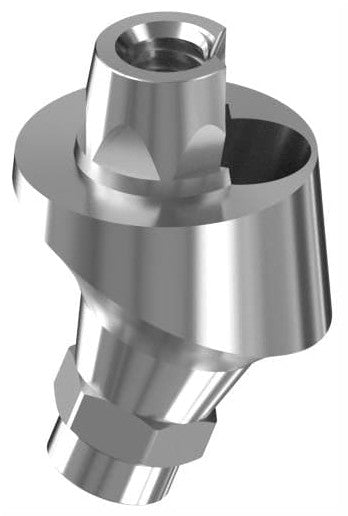

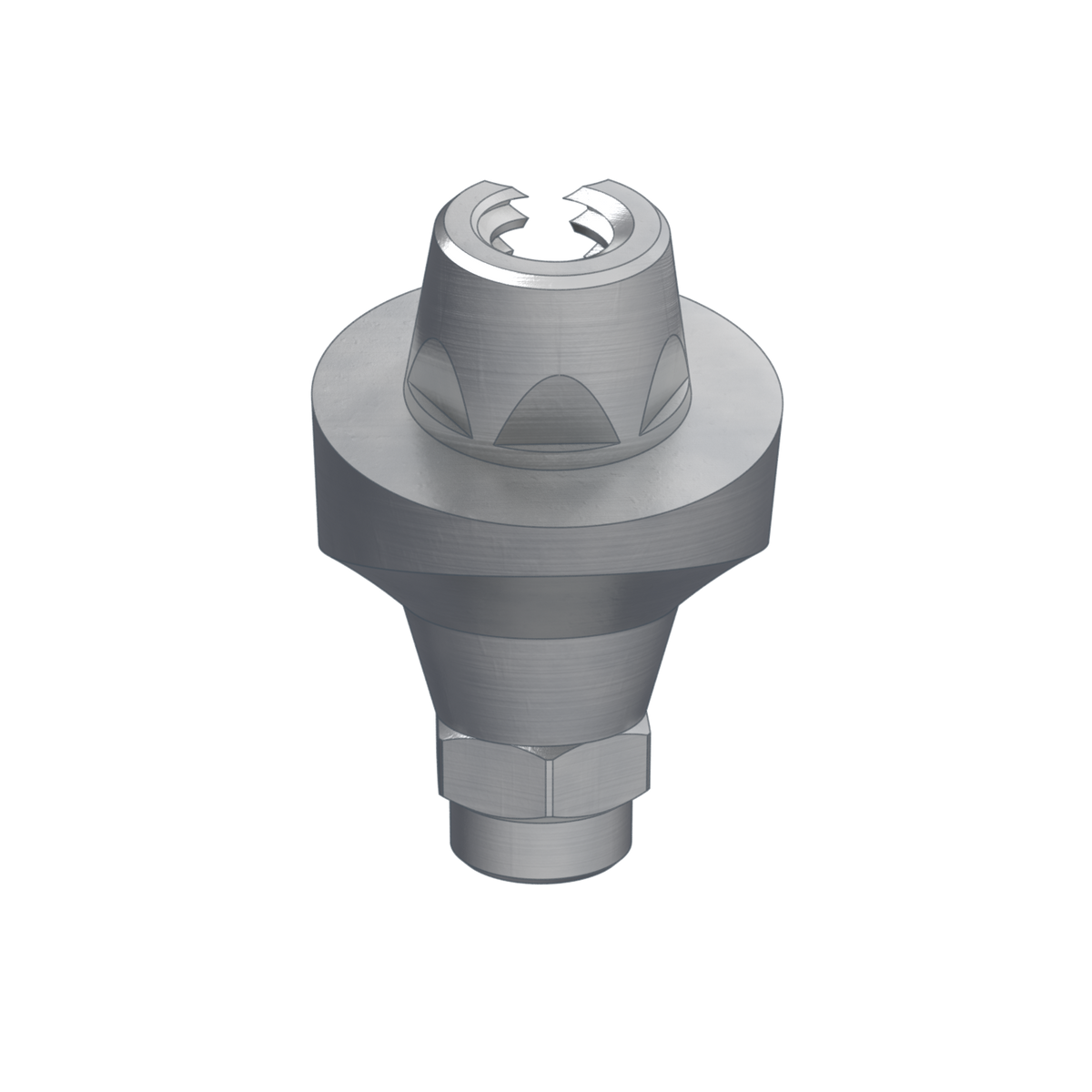

BIONIKA ECOPLANT, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B

Brand characteristics

The BIONIKA ECOplant implant system combines a Cone, Hex, and Cylinder connection geometry, providing a proven, precise, and micromovement-free fit widely recognised in engineering practice.

The 30° conical angle ensures optimal force transmission while directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level supports long-term bone preservation, while the platform-switching design enables natural soft-tissue closure, creating a biological seal around the implant shoulder.

The spirally micro-grooved, self-locking thread structure and cycloid thread profile effectively dissipate dynamic forces, maintaining micromovement-free stability and promoting rapid osseointegration.

With its anatomical root-shaped design, deep thread profile, and bone-condensing geometry, the ECOplant implant ensures excellent primary stability and allows for immediate loading when clinically indicated.

The rounded apex facilitates precise surgical placement and minimises bone stress during insertion.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base. It provides angular correction, particularly useful in cases where implants are not inserted parallel to one another. Its narrow design is especially advantageous in anterior regions or tight interproximal spaces, where aesthetics and space efficiency are critical.

The Type B position-orientation ensures that a specific point of the connection surface always aligns in the same direction relative to the top of the abutment upon reinsertion. This allows for accurate orientation and consistent seating, which is essential in screw-retained restorations on multiple implants.

The M1.6 internal thread is located at the top of the abutment, enabling the fixation of various prosthetic components such as bridge frameworks or custom restorations. The lower connection is designed to fit the LT2.7 platform geometry without a retaining screw.

Main Advantages:

• Angular correction: Aligns implant axes with prosthetic orientation.
• Type B orientation: A defined point of the interface aligns consistently upon reinsertion.
• Narrow design: Ideal for use in narrow spaces and the aesthetic zone.
• LT2.7 compatibility: Precisely fits the corresponding multi-unit platform.
• M1.6 internal thread: Suitable for securing screw-retained prosthetic components.
• Biocompatible titanium: Durable, sterilizable, and safe for clinical use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is the ideal solution for screw-retained restorations on multiple implants when angular correction, narrow profile, and reliable orientation are required along with full compatibility with the LT2.7 platform.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
