BIONIKA ECOPLANT, Multi-Compact abutment, positioned, type-A

Brand characteristics

The BIONIKA ECOplant implant system combines a Cone, Hex, and Cylinder connection geometry, providing a proven, precise, and micromovement-free fit widely recognised in engineering practice.

The 30° conical angle ensures optimal force transmission while directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level supports long-term bone preservation, while the platform-switching design enables natural soft-tissue closure, creating a biological seal around the implant shoulder.

The spirally micro-grooved, self-locking thread structure and cycloid thread profile effectively dissipate dynamic forces, maintaining micromovement-free stability and promoting rapid osseointegration.

With its anatomical root-shaped design, deep thread profile, and bone-condensing geometry, the ECOplant implant ensures excellent primary stability and allows for immediate loading when clinically indicated.

The rounded apex facilitates precise surgical placement and minimises bone stress during insertion.

Geometry characteristics

Positioned Type A Multi-Compact Base with Replaceable Prosthetic Components

The Multi-Compact abutment, positioned, type-A is a specially engineered multi-component prosthetic abutment designed to function similarly to angled multi-unit abutments, but with enhanced versatility. The base features an internally threaded design that allows the connection of various prosthetic tops with different shapes and functions, enabling multiple restorative solutions to be used with a single base type.

The positioned Type A variant ensures that a designated flat surface on the connection interface always aligns in the same orientation upon reinsertion. This precise rotational positioning is particularly important in restorations involving multiple implants, where accurate fit and aesthetic symmetry are critical.

One of the key advantages of the Multi-Compact system is that the base can remain fixed while the top components can be freely selected or replaced according to specific clinical or prosthetic needs. This significantly simplifies inventory management and increases the flexibility of the system.

Main Advantages:

• Internally threaded base: Allows secure connection with a range of prosthetic tops.
• Positioned Type A interface: Consistent orientation of the flat surface upon reinsertion.
• System flexibility: One base accommodates multiple clinical configurations.
• Stable, low-profile design: Reliable foundation for screw-retained restorations.
• Biocompatible titanium: Durable, tissue-friendly, and sterilizable medical-grade material.
• Includes fixation screw.

Indications:

The Multi-Compact abutment, positioned, type-A is an ideal choice for screw-retained restorations supported by multiple implants, where precise orientation, low profile, and prosthetic versatility are essential. The interchangeable top components make the system easily adaptable to changing clinical demands.

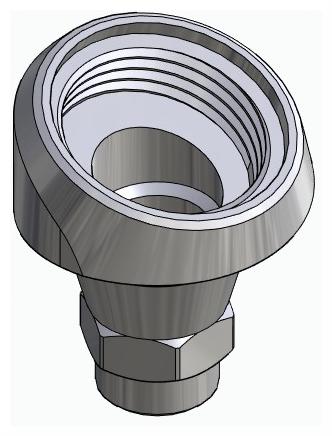

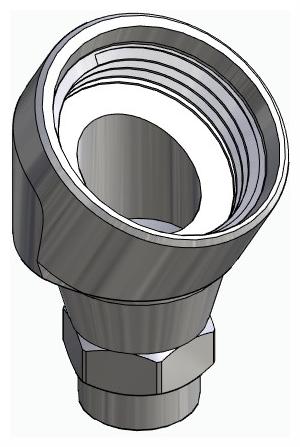

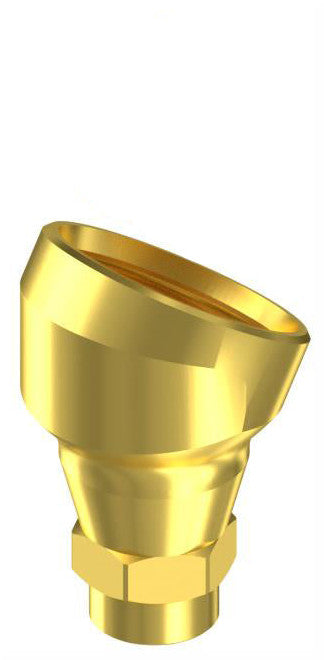

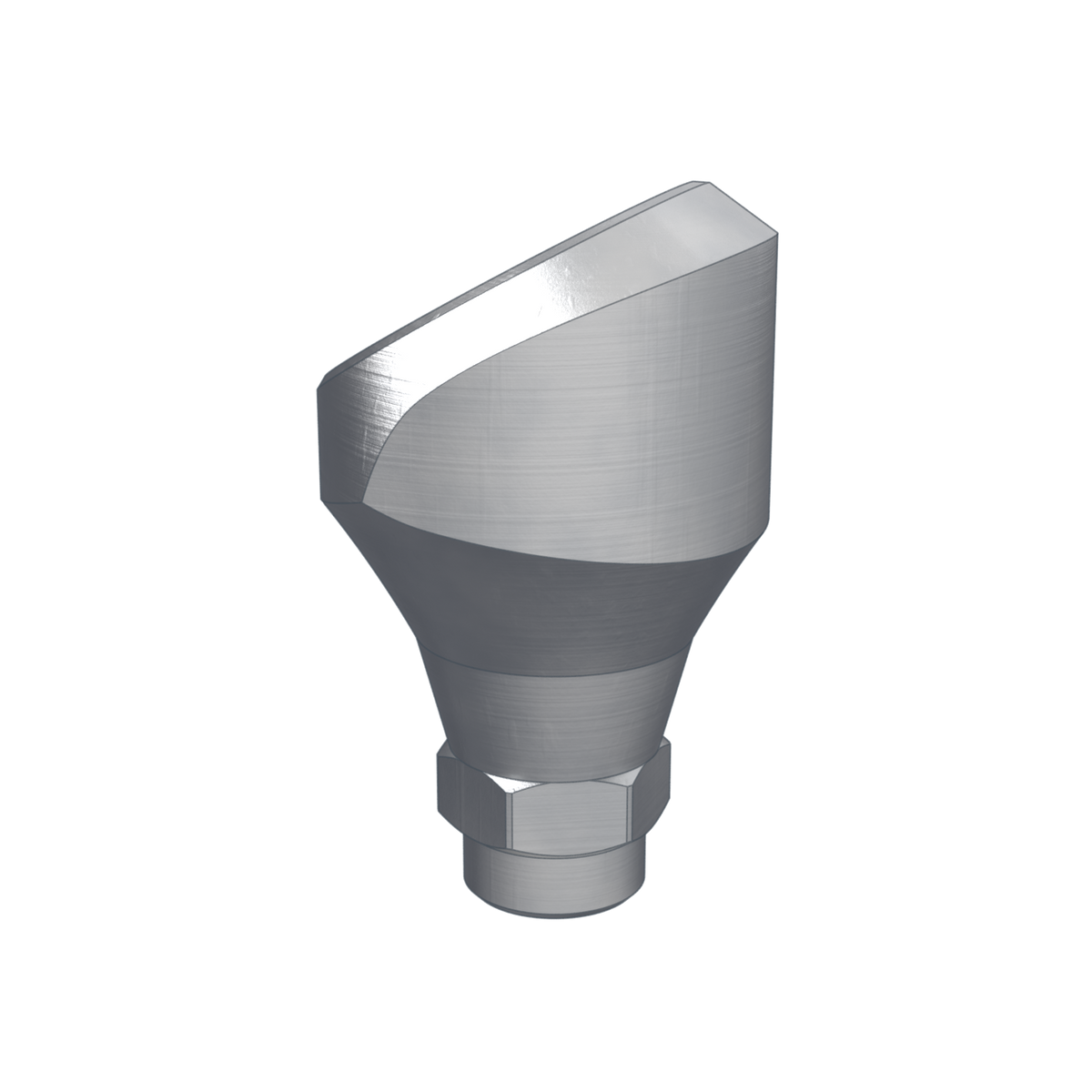

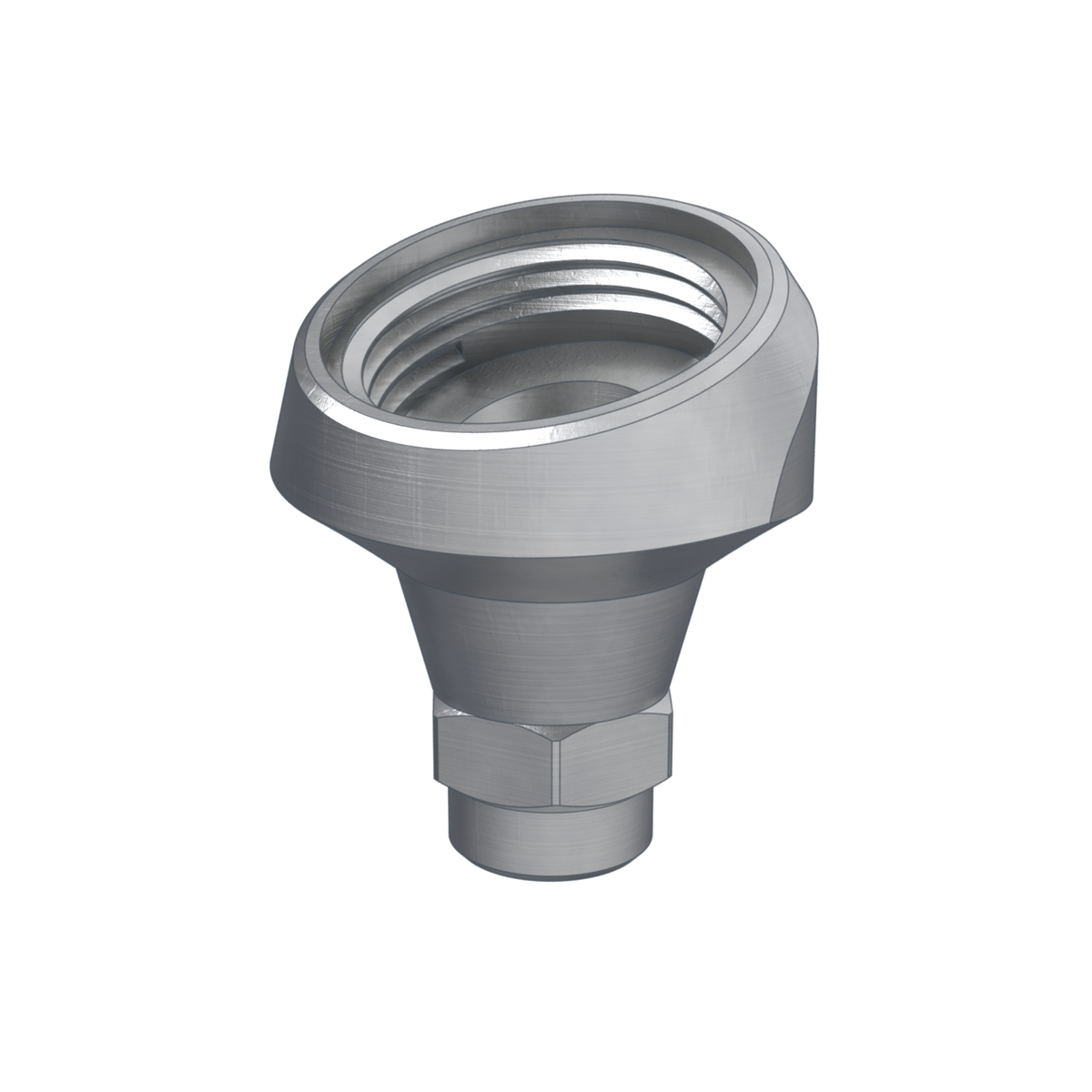

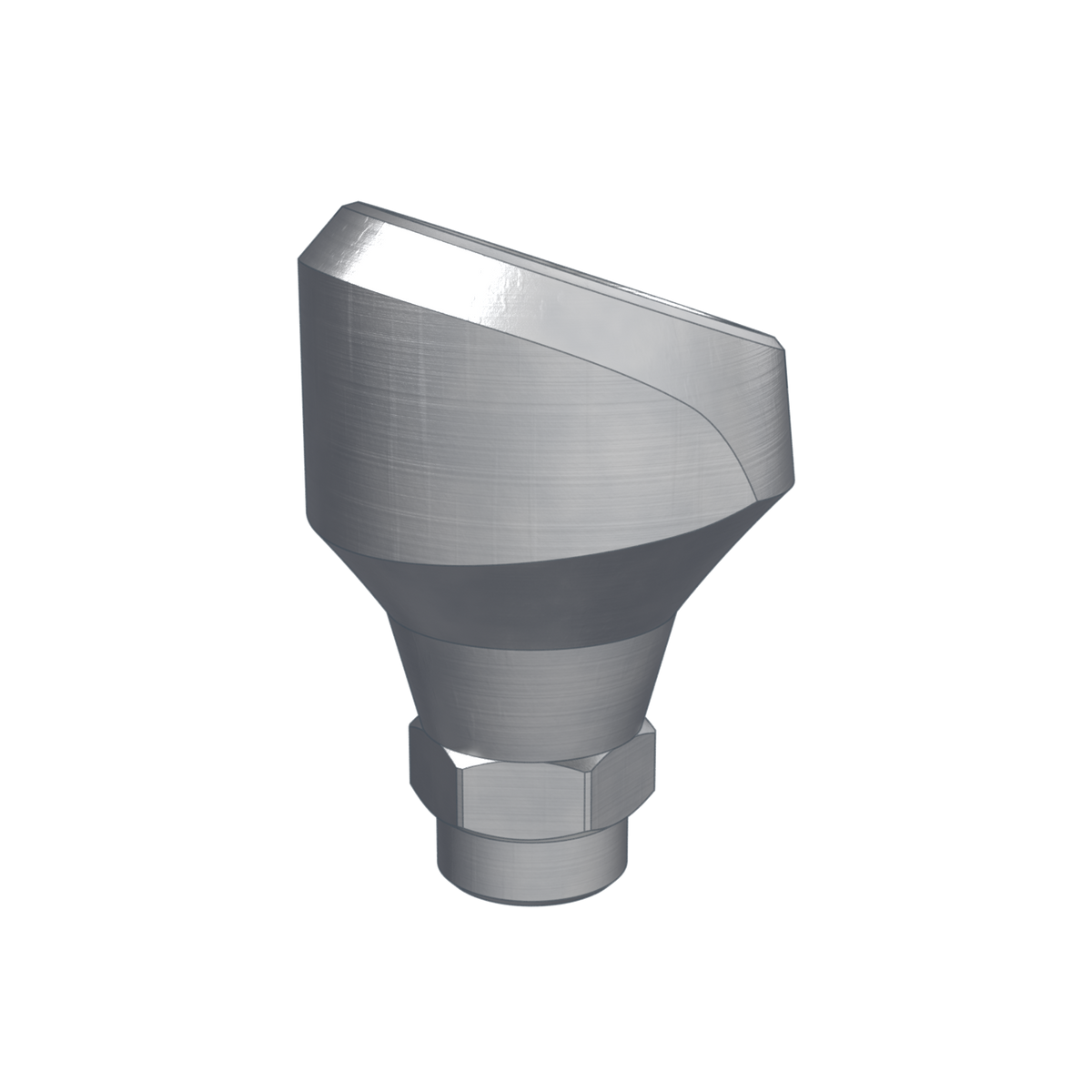

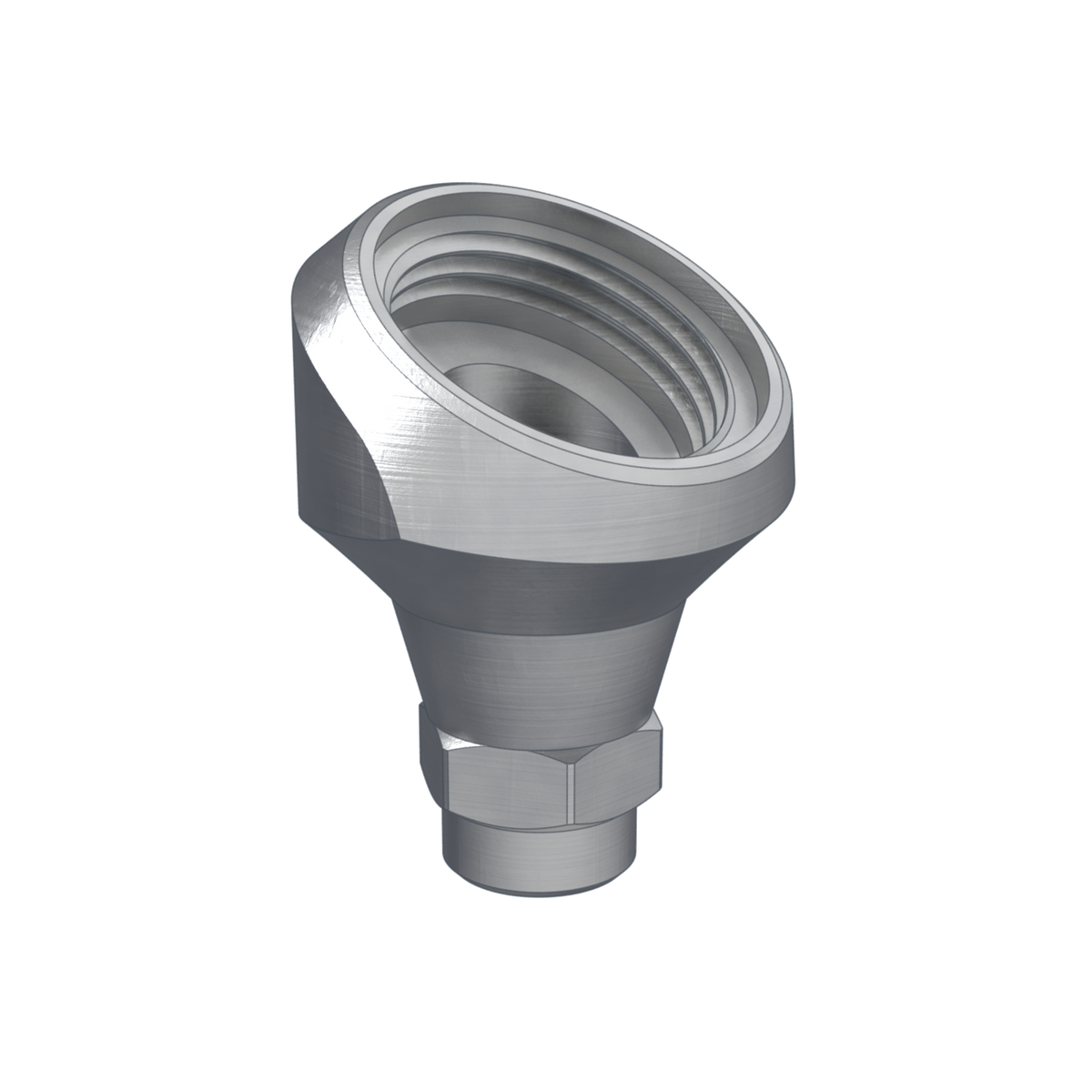

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
