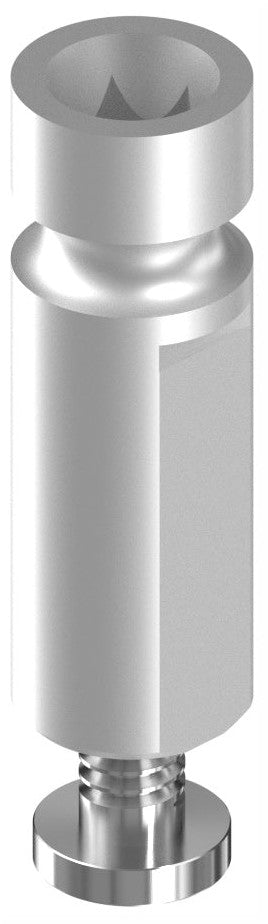

BIONIKA ECOPLANT, Implant analog for digital scan

Brand characteristics

The BIONIKA ECOplant implant system combines a Cone, Hex, and Cylinder connection geometry, providing a proven, precise, and micromovement-free fit widely recognised in engineering practice.

The 30° conical angle ensures optimal force transmission while directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level supports long-term bone preservation, while the platform-switching design enables natural soft-tissue closure, creating a biological seal around the implant shoulder.

The spirally micro-grooved, self-locking thread structure and cycloid thread profile effectively dissipate dynamic forces, maintaining micromovement-free stability and promoting rapid osseointegration.

With its anatomical root-shaped design, deep thread profile, and bone-condensing geometry, the ECOplant implant ensures excellent primary stability and allows for immediate loading when clinically indicated.

The rounded apex facilitates precise surgical placement and minimises bone stress during insertion.

Geometry characteristics

Model Implant for Digital Impression-Taking and CAD/CAM Workflows

The Implant analog for digital scan is a specially designed model implant intended for digital dental laboratory workflows. It accurately replicates the original implant’s connection geometry, while its surface is optimised for precise detection by both intraoral and laboratory scanners, ensuring distortion-free, high-resolution data capture.

Based on the digital impression, this model implant enables the accurate design and manufacturing of prosthetic components and restorations using CAD/CAM technology. It can be securely integrated into printed or moulded models, ensuring accurate spatial position transfer between digital and physical workflows.

Main Advantages:

• Scanner-optimised surface: Excellent visibility for digital scanners, ensuring high-precision scans.
• Implant-compatible interface: Precisely replicates the connection geometry of the original implant.
• For digital workflows: Enables full CAD/CAM integration from design to fabrication.
• Stable model fixation: Securely insertable into 3D-printed or conventional models.

Application:

The Implant analog for digital scan is an ideal solution for any dental laboratory working with digital workflows, where accurate and distortion-free modelling of implant-supported restorations is a critical requirement.

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected dimensions.
