BIONIKA ECOPLANT, Anatomic abutment, angled, 25°, positioned, type-A

Brand characteristics

The BIONIKA ECOplant implant system combines a Cone, Hex, and Cylinder connection geometry, providing a proven, precise, and micromovement-free fit widely recognised in engineering practice.

The 30° conical angle ensures optimal force transmission while directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level supports long-term bone preservation, while the platform-switching design enables natural soft-tissue closure, creating a biological seal around the implant shoulder.

The spirally micro-grooved, self-locking thread structure and cycloid thread profile effectively dissipate dynamic forces, maintaining micromovement-free stability and promoting rapid osseointegration.

With its anatomical root-shaped design, deep thread profile, and bone-condensing geometry, the ECOplant implant ensures excellent primary stability and allows for immediate loading when clinically indicated.

The rounded apex facilitates precise surgical placement and minimises bone stress during insertion.

Geometry characteristics

Customisable Abutment with Natural Contour and Precise Orientation for Extended Angle Correction

The Anatomic abutment, angled, 25°, positioned, type-A is an implant-level, customisable (grindable) abutment designed for cases requiring significant angle correction without compromising on aesthetic or functional outcomes. The 25° angulation allows for the compensation of major axis deviations, while the anatomical shape supports the creation and maintenance of a natural soft tissue profile.

The Type A indexed design ensures that a defined flat surface of the connection always aligns in the same direction relative to the top part of the abutment. This fixed orientation is particularly advantageous in multi-implant restorations, as it ensures precision in fit, aesthetics, and technical execution.

Main Advantages:

• 25° angle correction: Ideal for compensating substantial axial deviations.
• Anatomical shape: Preformed geometry supports the formation and preservation of natural gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures accurate repositioning every time.
• Customisable design: Allows individual shaping during laboratory or clinical procedures.
• Implant-level fit: Stable and reliable connection with the implant.
• Biocompatible titanium: Sterilisable, durable, and safe for long-term clinical use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-A is an ideal solution in cases where the implant axis significantly diverges from the intended prosthetic axis, and precise orientation and aesthetic integration are essential.

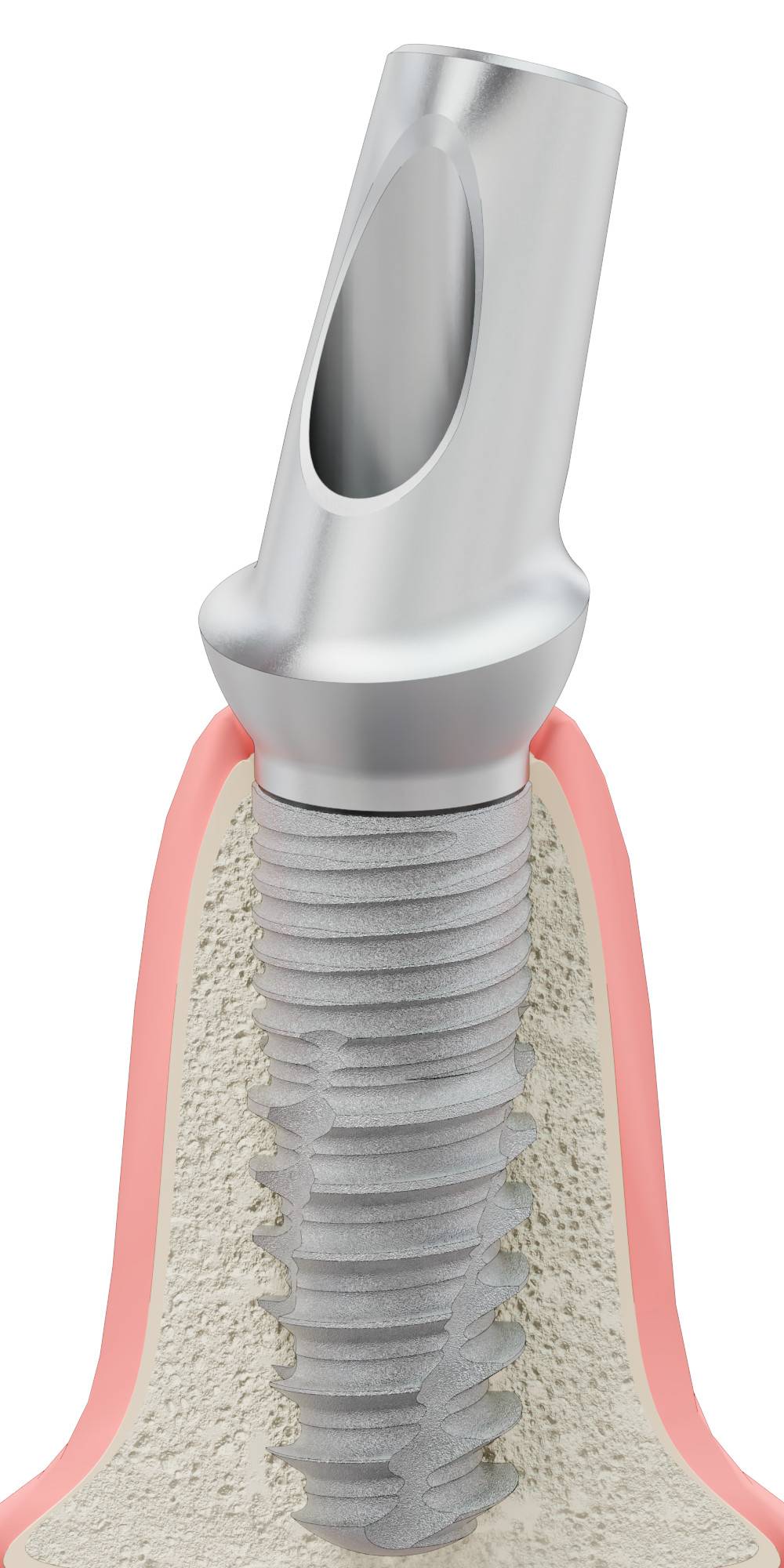

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
