BIONIKA ECOPLANT, Anatomic abutment, angled, 15°, positioned, type-A

Brand characteristics

The BIONIKA ECOplant implant system combines a Cone, Hex, and Cylinder connection geometry, providing a proven, precise, and micromovement-free fit widely recognised in engineering practice.

The 30° conical angle ensures optimal force transmission while directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level supports long-term bone preservation, while the platform-switching design enables natural soft-tissue closure, creating a biological seal around the implant shoulder.

The spirally micro-grooved, self-locking thread structure and cycloid thread profile effectively dissipate dynamic forces, maintaining micromovement-free stability and promoting rapid osseointegration.

With its anatomical root-shaped design, deep thread profile, and bone-condensing geometry, the ECOplant implant ensures excellent primary stability and allows for immediate loading when clinically indicated.

The rounded apex facilitates precise surgical placement and minimises bone stress during insertion.

Geometry characteristics

Angulated, Anatomically Shaped Customisable Abutment with Indexed Orientation

The Anatomic abutment, angled, 15°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for angle correction and prosthetic restorations that follow natural contours. The 15° angulated design enables the correction of non-ideal implant positioning, while the anatomical shape supports the formation of aesthetic and functional soft tissue profiles.

The Type A indexed connection ensures that a defined flat surface of the abutment's connection interface always remains aligned with the same direction relative to the top part of the abutment. This fixed orientation allows for accurate repositioning and coordination of prosthetic components, especially in multi-implant restorations.

Main Advantages:

• 15° angle correction: Enables alignment of the implant and prosthetic axes.
• Anatomical shape: Preformed geometry supports natural gingival contouring.
• Indexed connection (Type A): Defined flat surface ensures precise orientation.
• Customisable design: Suitable for individual adjustment in clinical or laboratory settings.
• Implant-level fit: Stable and precise connection with the implant.
• Biocompatible titanium: Durable, sterilisable, and suitable for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 15°, positioned, type-A is an excellent choice in cases where a discrepancy exists between the implant axis and the desired prosthetic axis. It is particularly suitable where natural appearance and precise orientation are critical for the success of multi-implant restorations.

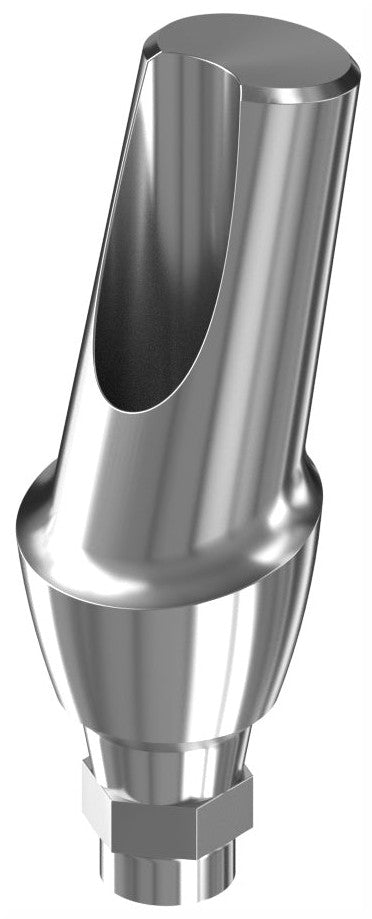

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
