BIONIKA DT2, Universal abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA DT2 implant system is compatible with the Denti® Bone Level® Evolution® platform and features advanced conical connection technology that ensures a perfect fit and micromovement-free load transfer.

The 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term stability.

The spirally micro-grooved, self-locking thread structure provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching design allows for the natural adaptation of bone and soft tissues, ensuring an aesthetic and hygienic seal at the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DT2 system guarantees precise placement, rapid osseointegration, and reliable long-term functional stability.

Geometry characteristics

Prepable Abutment for Angular Correction with Indexed Orientation and Implant-Level Connection

The Universal abutment, angled, positioned, type-B is a prepable, implant-level abutment developed for cases where precise spatial orientation and angular correction of the prosthetic restoration are required. Its angled design allows for correction of implant axis deviation, while the prepable shape gives full freedom to customize the final contours in clinical or laboratory settings.

The Type B indexing means that a specific point (apex) of the connection always aligns with the same orientation relative to the top of the abutment. This ensures accurate repositioning and consistent orientation of the prosthetic elements, which is particularly important in multiple-implant restorations.

Main Benefits:

• Prepable design: Custom-shapeable to match anatomical and aesthetic requirements.
• Angled geometry: Enables compensation for non-ideal implant angulation.
• Indexed connection (Type B): A defined apex consistently aligns with the top section of the abutment.
• Implant-level fit: Direct and stable connection to the implant for excellent adaptation.
• Biocompatible titanium: Reliable, long-term material suitable for clinical use.
• The product includes the screw.

Application:

The Universal abutment, angled, positioned, type-B is the ideal choice in cases where the prosthetic abutment must be positioned in a defined spatial orientation and both accurate repositioning and custom shaping are essential.

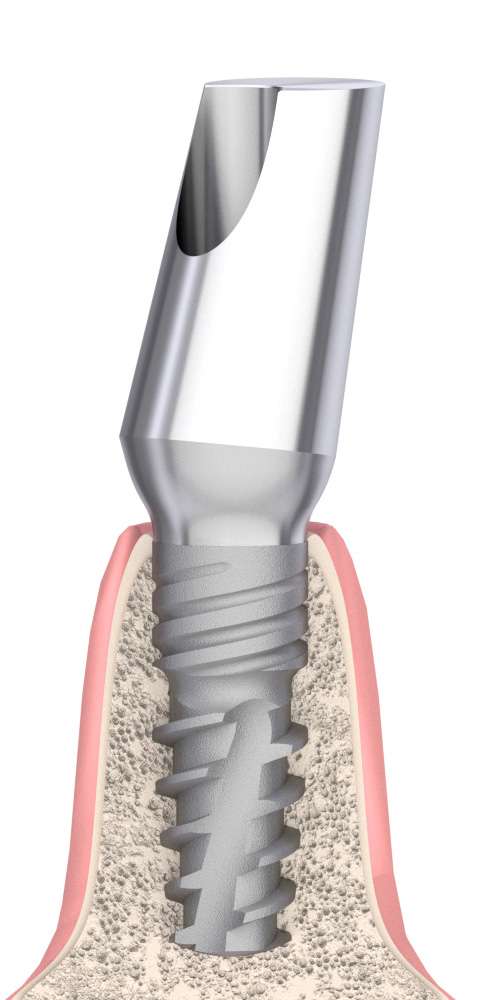

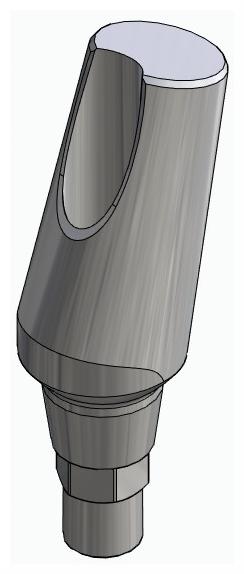

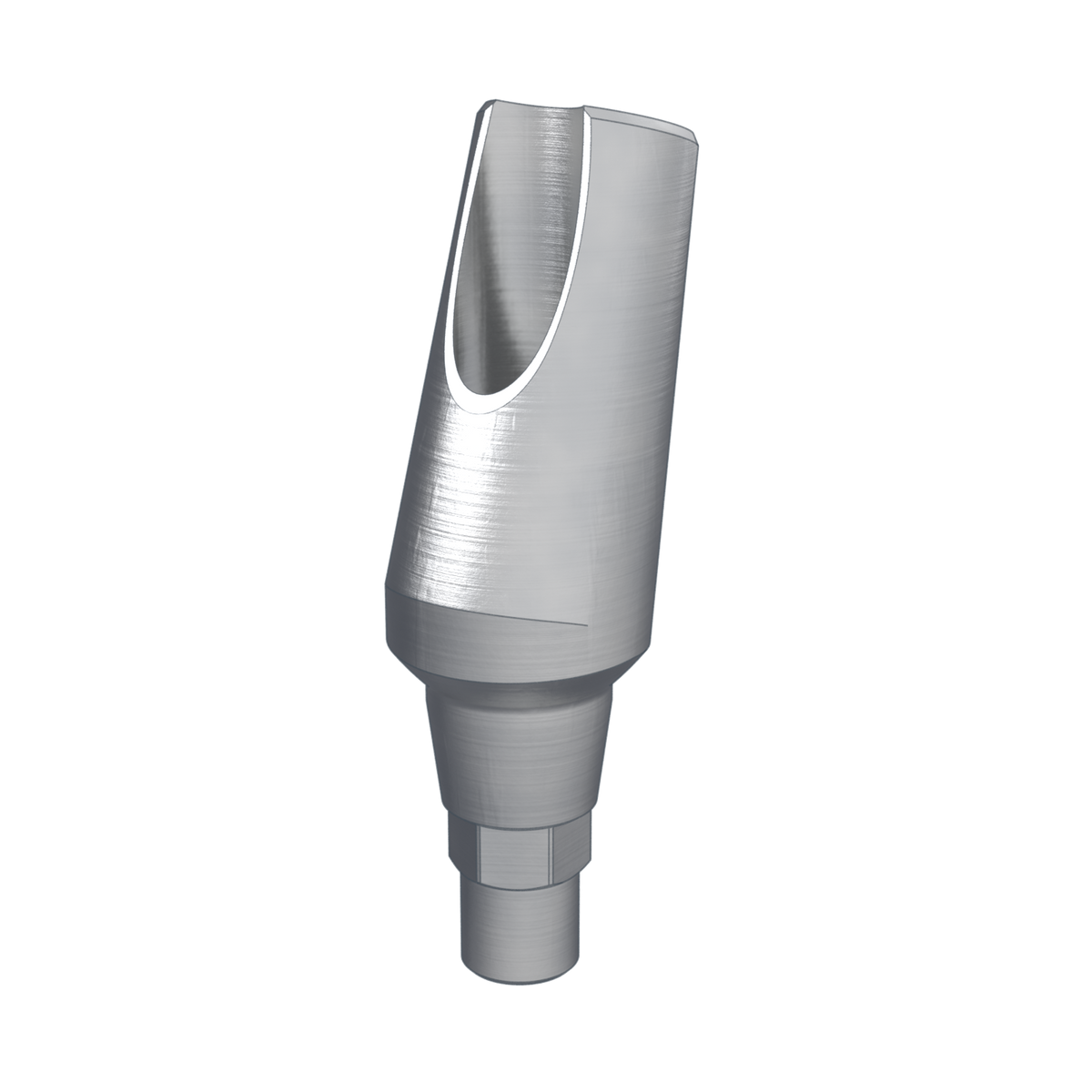

The product image is for illustration purposes only; colour and geometry may vary depending on the selected dimensions.
