BIONIKA DT2, Multi-unit SR abutment, straight, screwable

Brand characteristics

The BIONIKA DT2 implant system is compatible with the Denti® Bone Level® Evolution® platform and features advanced conical connection technology that ensures a perfect fit and micromovement-free load transfer.

The 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term stability.

The spirally micro-grooved, self-locking thread structure provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching design allows for the natural adaptation of bone and soft tissues, ensuring an aesthetic and hygienic seal at the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DT2 system guarantees precise placement, rapid osseointegration, and reliable long-term functional stability.

Geometry characteristics

Straight SR-Type Multi-Unit Abutment with Screw-In Design for Cement-Free Prosthetic Systems

The Multi-unit SR abutment, straight, screwable is a self-engaging, screw-in prosthetic abutment with a straight profile, designed to connect to an implant or intermediate SR (Screw-Retained) multi-unit system. Its screw-in design enables secure fixation to the platform without the need for an additional retaining screw, while the straight geometry makes it an ideal solution when the implant axis is well aligned and no angulation correction is required.

This SR-type abutment is particularly well-suited for fully screw-retained restorations where the final prosthesis is accessible and cement-free. This significantly simplifies potential removal, maintenance, and reinsertion, especially in restorations involving multiple implants.

Main Advantages:

• SR system compatibility: Ideal for cement-free, screw-retained restorations.
• Straight alignment: Easy and direct fit when angulation correction is not necessary.
• Screw-in design: The abutment features an internal thread and does not require a separate retaining screw.
• Suitable for multi-unit restorations: Especially recommended for full-arch and implant-supported bridges.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Indications:

The Multi-unit SR abutment, straight, screwable is an excellent choice for cement-free, screw-retained prosthetic restorations on multiple implants where the implant angulation allows for straight insertion. It offers a stable, easy-to-use solution that supports efficient and reliable clinical workflows.

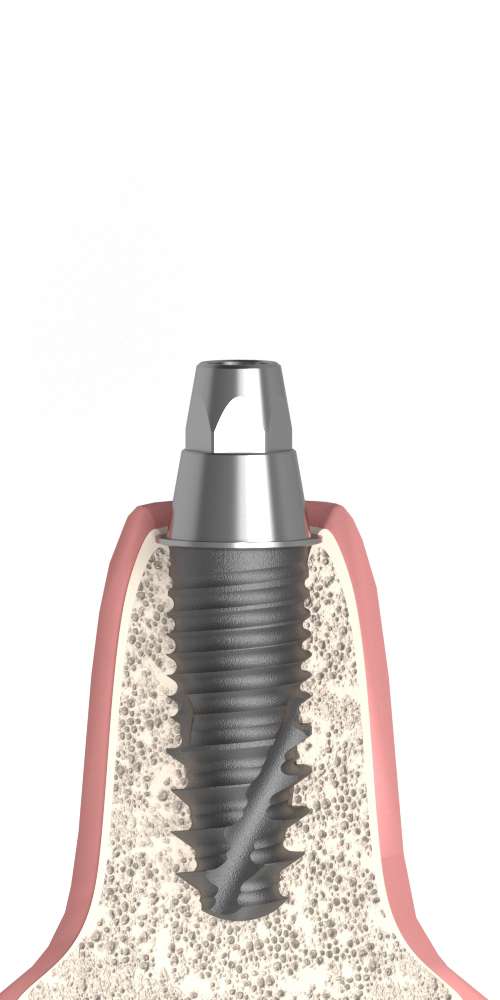

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
