BIONIKA DT2, Multi-unit abutment, angled, positioned, wide, LT2, type-A

Brand characteristics

The BIONIKA DT2 implant system is compatible with the Denti® Bone Level® Evolution® platform and features advanced conical connection technology that ensures a perfect fit and micromovement-free load transfer.

The 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term stability.

The spirally micro-grooved, self-locking thread structure provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching design allows for the natural adaptation of bone and soft tissues, ensuring an aesthetic and hygienic seal at the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DT2 system guarantees precise placement, rapid osseointegration, and reliable long-term functional stability.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2 System, Wide Design with M1.4 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2, type-A is a prosthetic component designed for implant-level or intermediate multi-unit connections. This angled abutment facilitates alignment between the implant axis and the prosthetic direction, while its wide profile provides enhanced stability, especially in posterior regions or high-load restorations.

The Type A position-oriented design ensures that a specific flat surface of the connection interface always aligns in the same orientation relative to the top of the abutment. This allows for consistent and accurate positioning, which is crucial for the functional and aesthetic integration of multi-implant prostheses.

The M1.4 internal thread located on the top of the abutment enables secure fixation of final prosthetic elements, such as bridge frameworks or other screw-retained components. The lower portion is geometrically matched to the LT2 multi-unit platform, ensuring stable, screwless insertion.

Main Advantages:

• Angular correction: Compensates for implant axis deviation.
• Position-oriented (Type A): The same flat face of the connection always aligns during reinsertion.
• Wide design: Provides increased support for soft tissues and prosthetic restorations.
• LT2 compatibility: Fully integrates with LT2 platform systems.
• M1.4 internal thread: Allows fixation of screw-retained prosthetic components.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly medical-grade material.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2, type-A is an ideal solution for screw-retained prosthetic restorations based on multiple implants, where angular correction, enhanced stability, precise orientation, and compatibility with the LT2 system are essential.

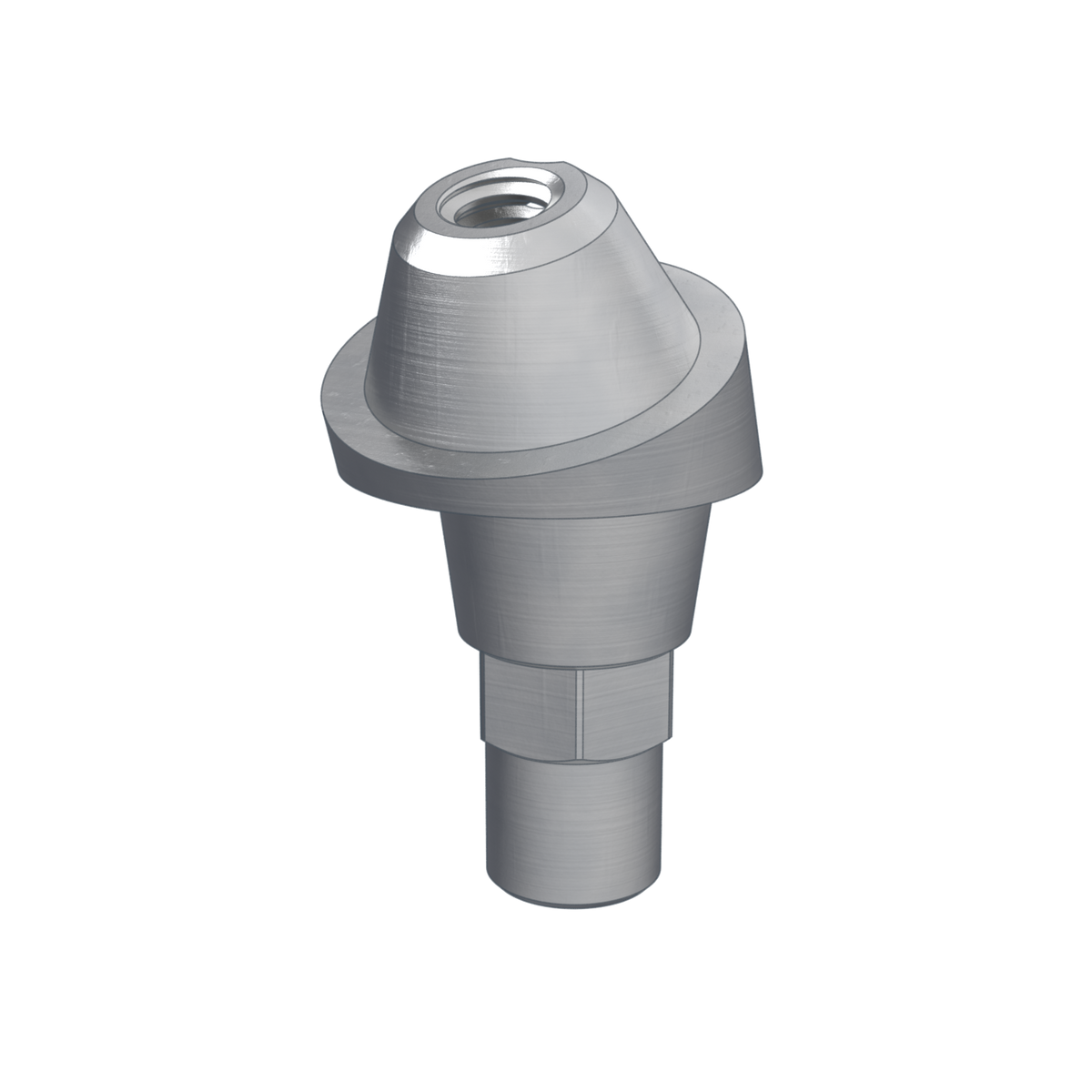

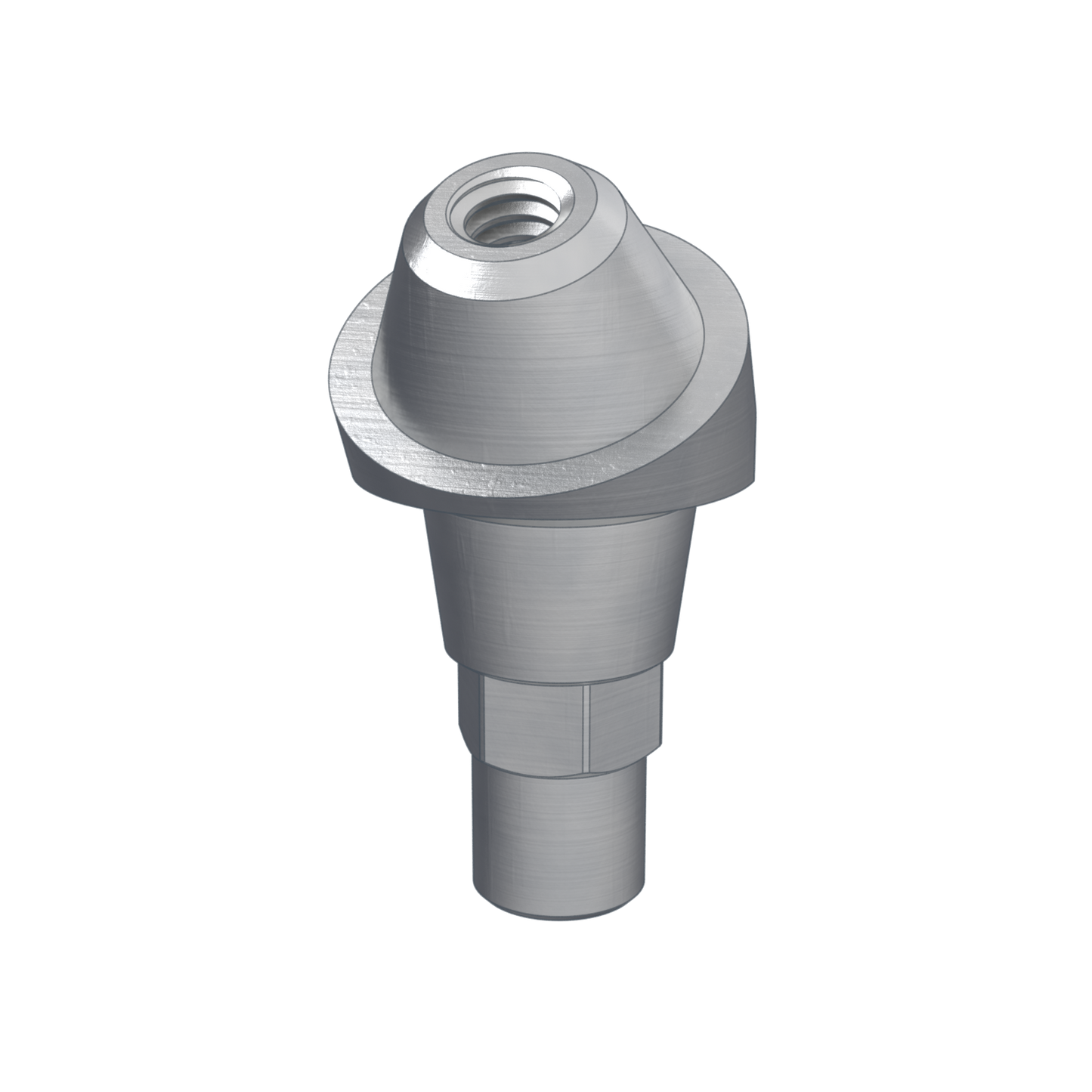

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
