BIONIKA DT2, Bite regsitration abutment, screwable, implant level

Brand characteristics

The BIONIKA DT2 implant system is compatible with the Denti® Bone Level® Evolution® platform and features advanced conical connection technology that ensures a perfect fit and micromovement-free load transfer.

The 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term stability.

The spirally micro-grooved, self-locking thread structure provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching design allows for the natural adaptation of bone and soft tissues, ensuring an aesthetic and hygienic seal at the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DT2 system guarantees precise placement, rapid osseointegration, and reliable long-term functional stability.

Geometry characteristics

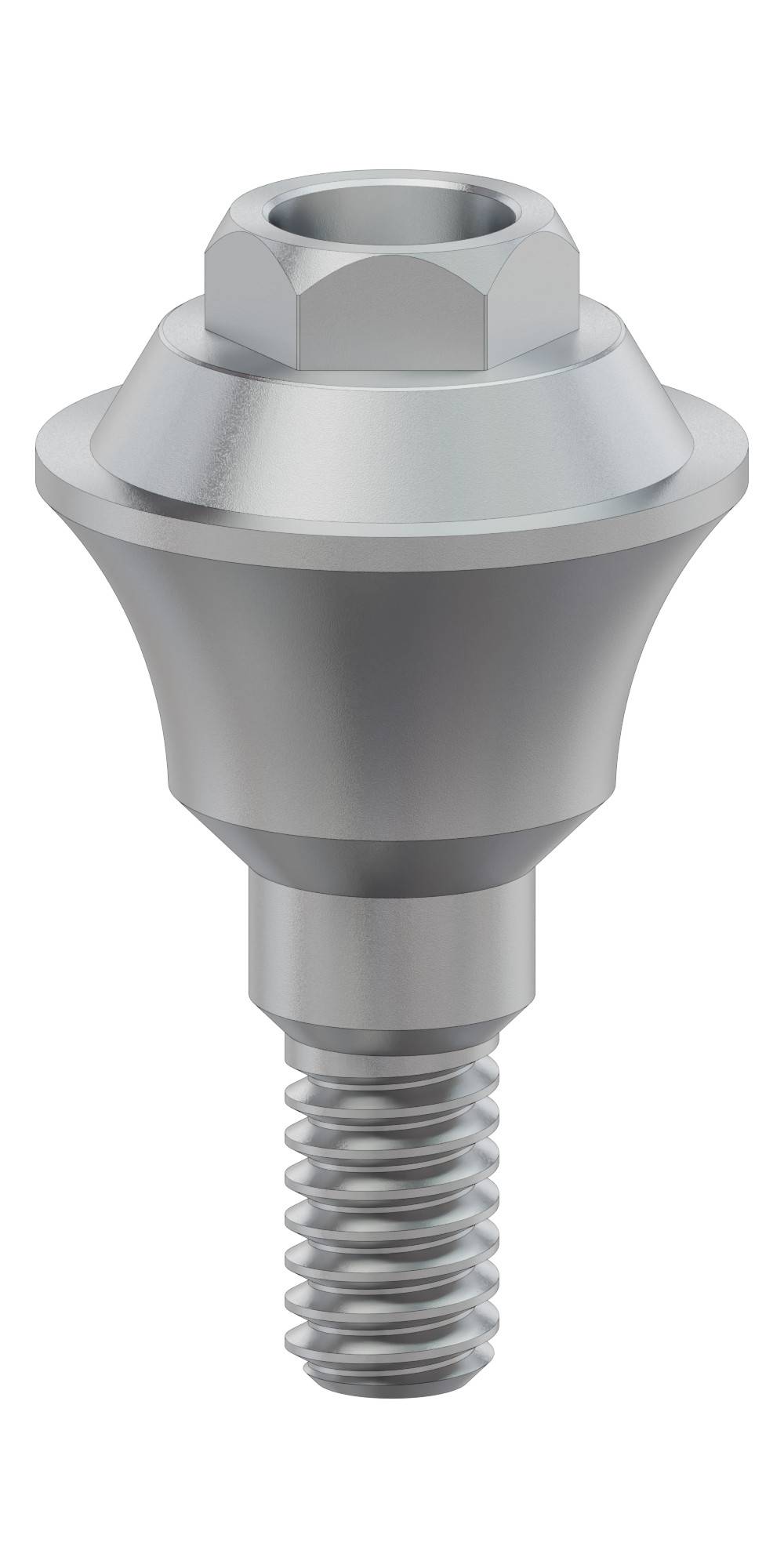

Screw-Retained Bite Registration Abutment for Implant-Level Use

The Bite regsitration abutment, screwable, implant level is a specialised component used to determine maxillomandibular relations during implant-supported prosthetic procedures. It is directly screwed into the implant, providing stable fixation throughout the bite registration process, eliminating inaccuracies caused by displacement.

The bite record enables the dental laboratory to produce a model that accurately reflects the patient’s oral anatomy—essential for creating a well-fitting, functional, and aesthetic restoration. The implant-level design allows for direct connection without the need for additional adapters.

Main Benefits:

• Implant-level retention: Direct connection to the implant – no accessories required.
• Screw-retained design: Provides a stable, non-moving position during registration.
• Accurate position transfer: Registered occlusion can be reliably transferred to the lab process.
• Biocompatible material: Sterilisable and suitable for clinical applications.
• The product includes the screw.

Application:

The Bite regsitration abutment, screwable, implant level is the ideal solution for single or multi-unit implant cases where a precise maxillomandibular registration is essential for fabricating the final prosthesis.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
