BIONIKA DT2, Anatomic abutment, angled, 15°, positioned, type-A

Brand characteristics

The BIONIKA DT2 implant system is compatible with the Denti® Bone Level® Evolution® platform and features advanced conical connection technology that ensures a perfect fit and micromovement-free load transfer.

The 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term stability.

The spirally micro-grooved, self-locking thread structure provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching design allows for the natural adaptation of bone and soft tissues, ensuring an aesthetic and hygienic seal at the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DT2 system guarantees precise placement, rapid osseointegration, and reliable long-term functional stability.

Geometry characteristics

Angulated, Anatomically Shaped Customisable Abutment with Indexed Orientation

The Anatomic abutment, angled, 15°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for angle correction and prosthetic restorations that follow natural contours. The 15° angulated design enables the correction of non-ideal implant positioning, while the anatomical shape supports the formation of aesthetic and functional soft tissue profiles.

The Type A indexed connection ensures that a defined flat surface of the abutment's connection interface always remains aligned with the same direction relative to the top part of the abutment. This fixed orientation allows for accurate repositioning and coordination of prosthetic components, especially in multi-implant restorations.

Main Advantages:

• 15° angle correction: Enables alignment of the implant and prosthetic axes.
• Anatomical shape: Preformed geometry supports natural gingival contouring.
• Indexed connection (Type A): Defined flat surface ensures precise orientation.
• Customisable design: Suitable for individual adjustment in clinical or laboratory settings.
• Implant-level fit: Stable and precise connection with the implant.
• Biocompatible titanium: Durable, sterilisable, and suitable for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 15°, positioned, type-A is an excellent choice in cases where a discrepancy exists between the implant axis and the desired prosthetic axis. It is particularly suitable where natural appearance and precise orientation are critical for the success of multi-implant restorations.

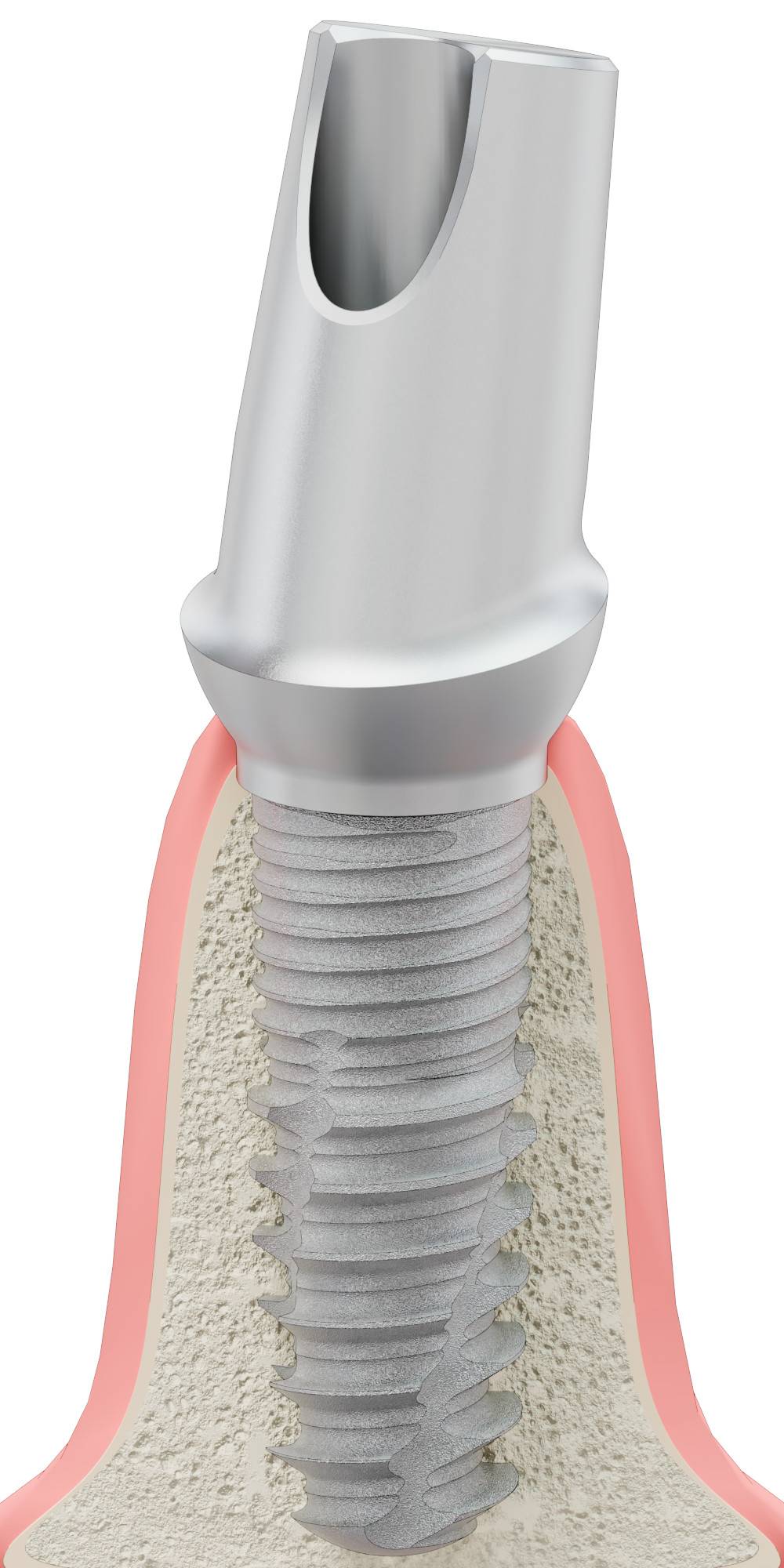

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
