BIONIKA DN, Narrow abutment, angled, positioned, type-A

Brand characteristics

The BIONIKA DN implant system is compatible with the Dentium® NR Line platform and features a precise conical and hexagonal (Cone & Hex) connection that ensures micromovement-free fitting and stable load transfer.

The 22° cone angle directs forces deep into the implant body, thereby minimising bone stress and enhancing long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides excellent engagement in the cortical layer, while the self-compressing, self-cutting thread profile ensures outstanding primary stability in the spongy bone.

The platform switching design supports the natural adaptation of soft tissues, creating a biological seal around the implant shoulder.

With its anatomical root-shaped design, bone-condensing thread geometry, and rounded apex, the DN system offers rapid osseointegration, precise placement, and long-term reliability across all clinical indications.

Geometry characteristics

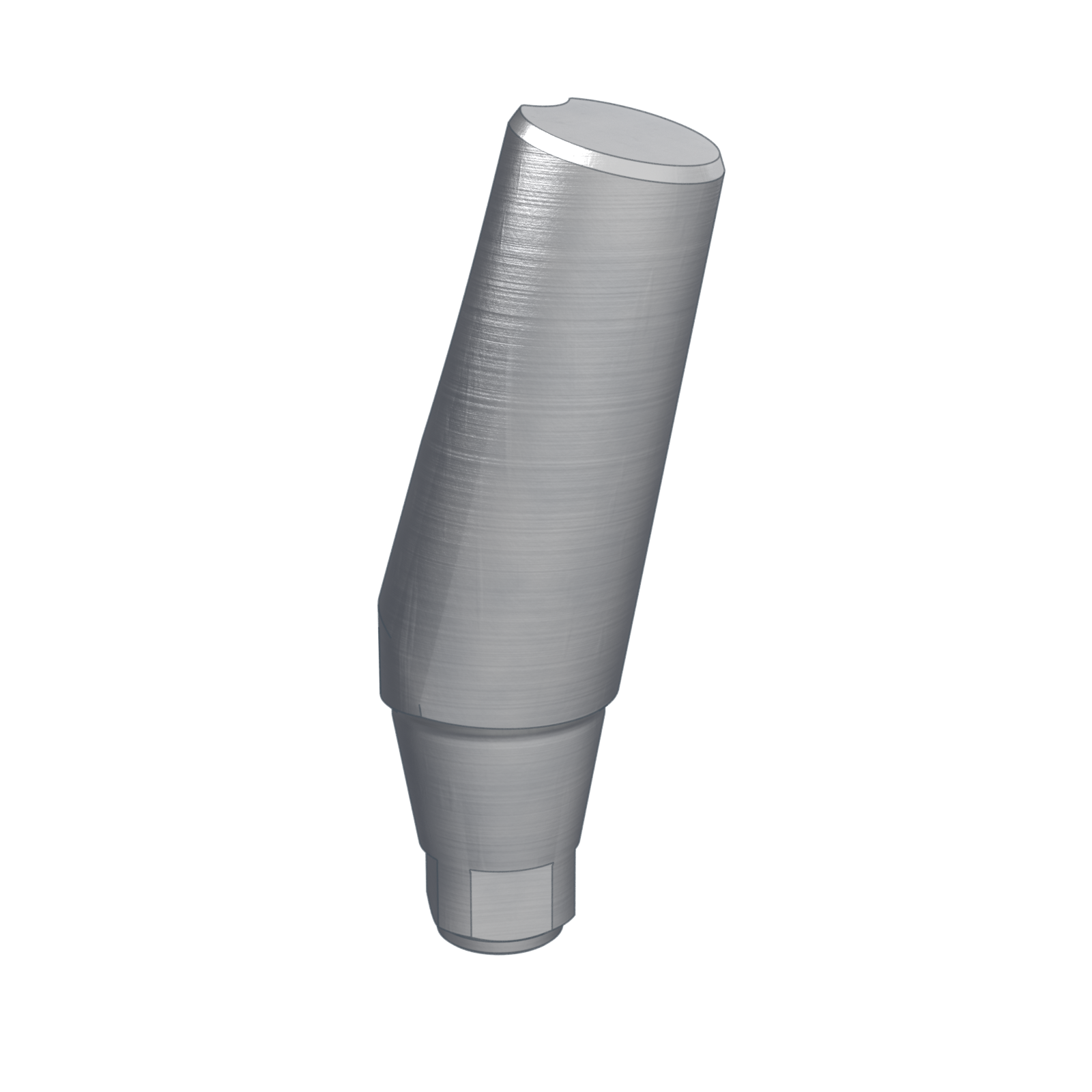

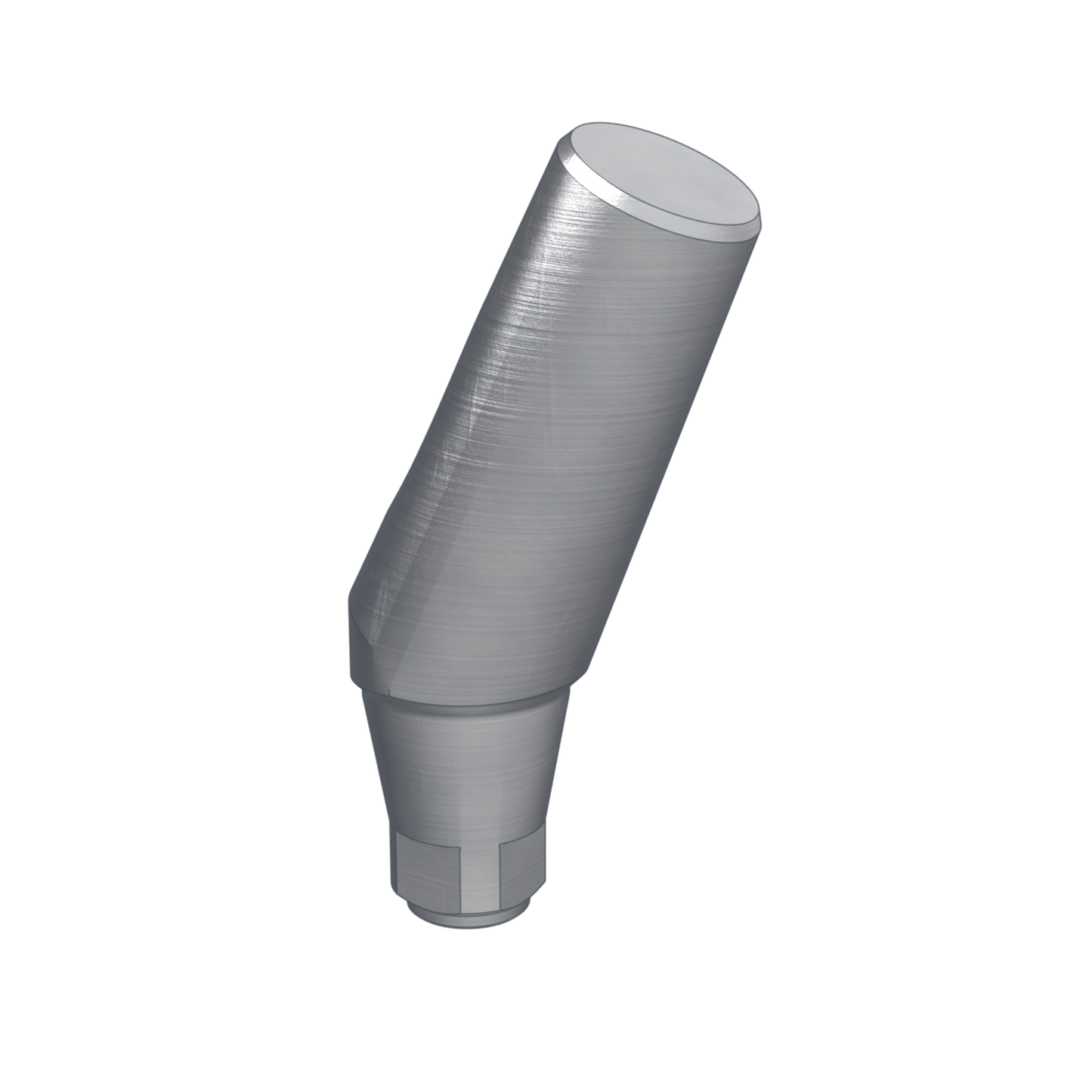

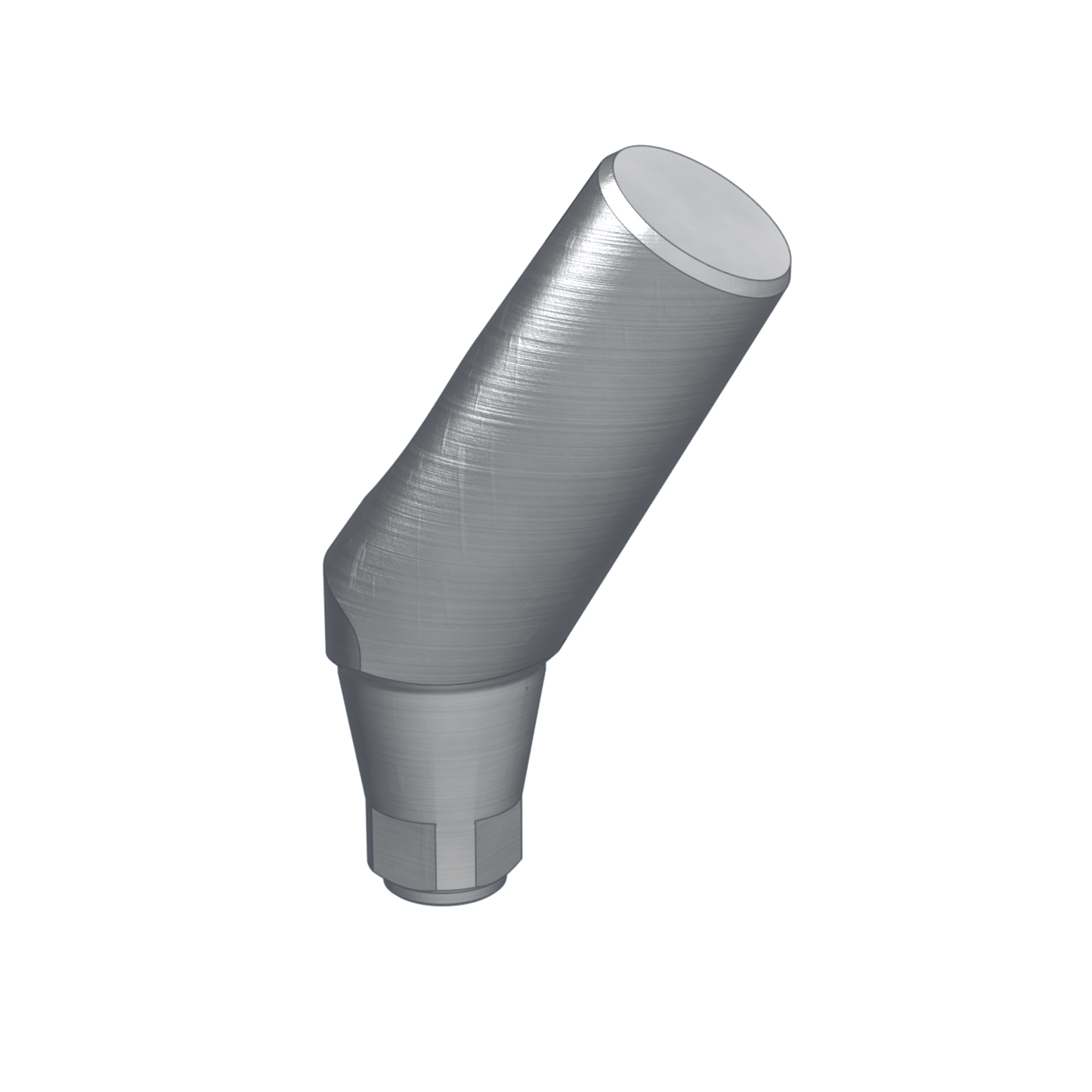

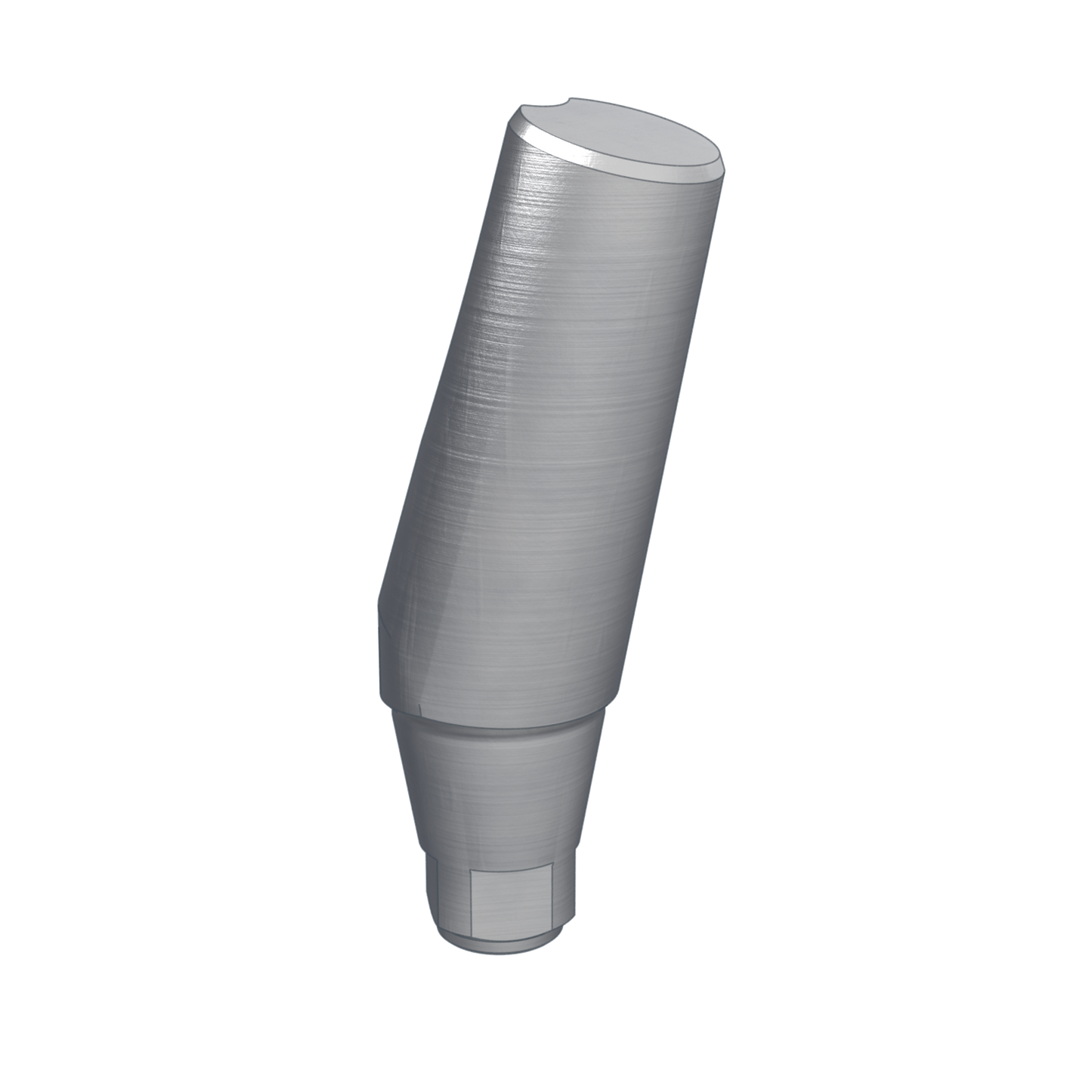

Narrow Angled Abutment for Constrained Spaces with Indexed Orientation

The Narrow abutment, angled, positioned, type-A is an implant-level restoration component specifically designed for cases requiring angulation correction in narrow interproximal spaces. Its slim profile is ideal for limited space within the dental arch, while the angled configuration allows for the compensation of suboptimally placed implants.

The Type A indexed connection ensures that one specific flat surface of the abutment interface always aligns with the same orientation relative to the top of the abutment. This guarantees fixed rotational positioning, which is essential in multi-implant cases—especially when combined with angled abutments. Accurate repositioning enhances the alignment of prosthetic components and contributes to a harmonious soft tissue profile.

Main Advantages:

• Slender design: Ideal for narrow interdental spaces and limited gingival height.
• Angled correction: Optimises prosthetic axis by compensating for implant misalignment.
• Indexed connection (Type A): Ensures consistent orientation—flat face always in the same position.
• Implant-level fit: Direct, stable connection to the implant body.
• Biocompatible titanium: Safe, sterilizable, and durable for long-term clinical use.
• The product includes the screw.

Application Area:

The Narrow abutment, angled, positioned, type-A is an excellent solution for anterior regions or tightly spaced implant sites, especially where angular correction and precise prosthetic alignment are required during treatment planning.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
