BIONIKA DN, Ball abutment, OC, micro

Brand characteristics

The BIONIKA DN implant system is compatible with the Dentium® NR Line platform and features a precise conical and hexagonal (Cone & Hex) connection that ensures micromovement-free fitting and stable load transfer.

The 22° cone angle directs forces deep into the implant body, thereby minimising bone stress and enhancing long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides excellent engagement in the cortical layer, while the self-compressing, self-cutting thread profile ensures outstanding primary stability in the spongy bone.

The platform switching design supports the natural adaptation of soft tissues, creating a biological seal around the implant shoulder.

With its anatomical root-shaped design, bone-condensing thread geometry, and rounded apex, the DN system offers rapid osseointegration, precise placement, and long-term reliability across all clinical indications.

Geometry characteristics

Implant-level abutment for securing removable dentures with OT-CAP retention

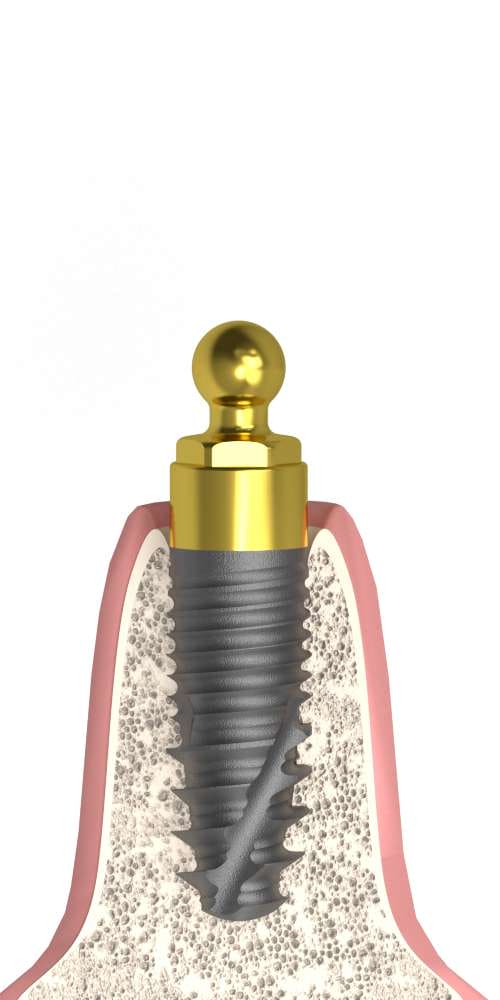

The Ball abutment, OC, micro is an implant-level attachment designed for removable prostheses, fully compatible with the OT-CAP retention system. The "micro" version features a 1.8 mm diameter ball head, making it ideal for limited interarch spaces or cases where smaller retention components are clinically indicated due to anatomical constraints or prosthetic design.

Its OC-type ball configuration ensures a stable yet easily detachable connection via OT-CAP plastic matrices. This allows the patient to insert and remove the denture independently and comfortably, while maintaining reliable long-term retention.

Main Benefits:

• Micro ball size (Ø1.8 mm): Ideal for limited vertical space and low-profile retention requirements.
• OT-CAP compatible: Integrates seamlessly with a well-established retention system.
• Secure yet removable: Ensures comfort and convenience for the patient.
• Implant-level connection: Direct attachment to the implant with simplified placement.
• Biocompatible titanium: Durable, tissue-friendly, and sterilizable material.

Application:

The Ball abutment, OC, micro is particularly recommended for the retention of full or partial removable dentures in cases where space is limited or a low-profile ball head is needed due to gingival or prosthetic design considerations.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
