BIONIKA DN, Anatomic abutment, angled, 35°, positioned, type-B

Brand characteristics

The BIONIKA DN implant system is compatible with the Dentium® NR Line platform and features a precise conical and hexagonal (Cone & Hex) connection that ensures micromovement-free fitting and stable load transfer.

The 22° cone angle directs forces deep into the implant body, thereby minimising bone stress and enhancing long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides excellent engagement in the cortical layer, while the self-compressing, self-cutting thread profile ensures outstanding primary stability in the spongy bone.

The platform switching design supports the natural adaptation of soft tissues, creating a biological seal around the implant shoulder.

With its anatomical root-shaped design, bone-condensing thread geometry, and rounded apex, the DN system offers rapid osseointegration, precise placement, and long-term reliability across all clinical indications.

Geometry characteristics

Customisable Abutment for Advanced Angle Correction with Precise Orientation and Natural Contours

The Anatomic abutment, angled, 35°, positioned, type-B is an implant-level, customisable (grindable) abutment offering an excellent solution for cases where the implant inclination significantly deviates from the desired prosthetic axis. The 35° angulation allows for the correction of non-ideal implant positioning, while the anatomical shape helps to create a natural gingival contour and aesthetic outcome.

The Type B indexing ensures that a specific apex of the connection surface is always aligned in the same direction relative to the top of the abutment. This fixed orientation allows the abutment to return to the exact same position every time, which is critical in multi-implant restorations for achieving a precise fit and consistent aesthetic appearance.

Main Advantages:

• 35° angle correction: Ideal for compensating significant axial deviations.
• Anatomical design: Preformed shape for natural appearance and soft tissue support.
• Indexed orientation (Type B): Fixed apex ensures consistent and accurate repositioning.
• Customisable form: Can be individually shaped in both clinical and laboratory settings.
• Implant-level fit: Stable and reliable connection to the implant.
• Biocompatible titanium: Sterilisable and safe for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-B is the ideal choice for cases with pronounced angulation where precise repositioning and natural contouring are essential—such as multi-implant restorations in the aesthetic zone.

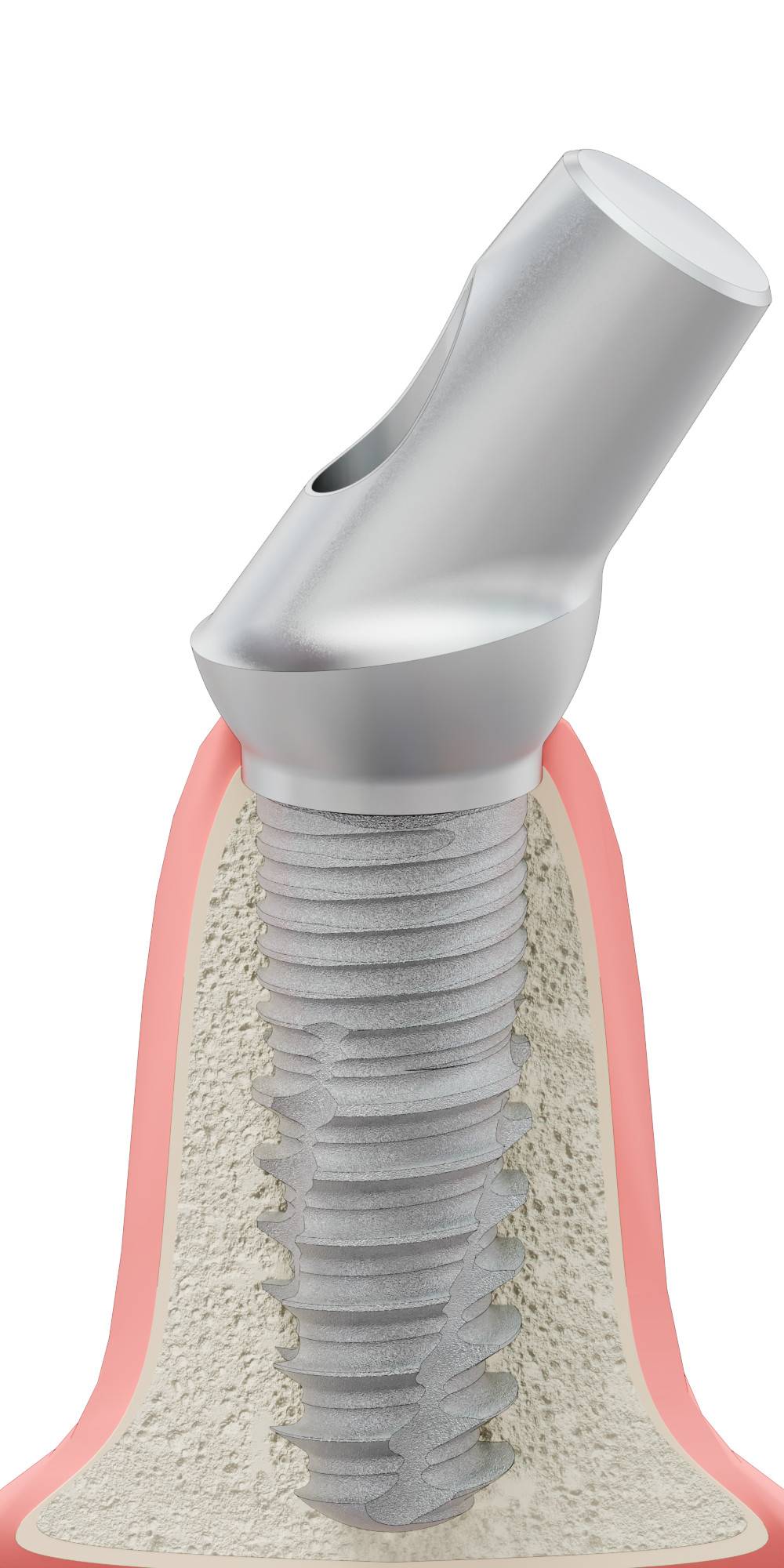

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
