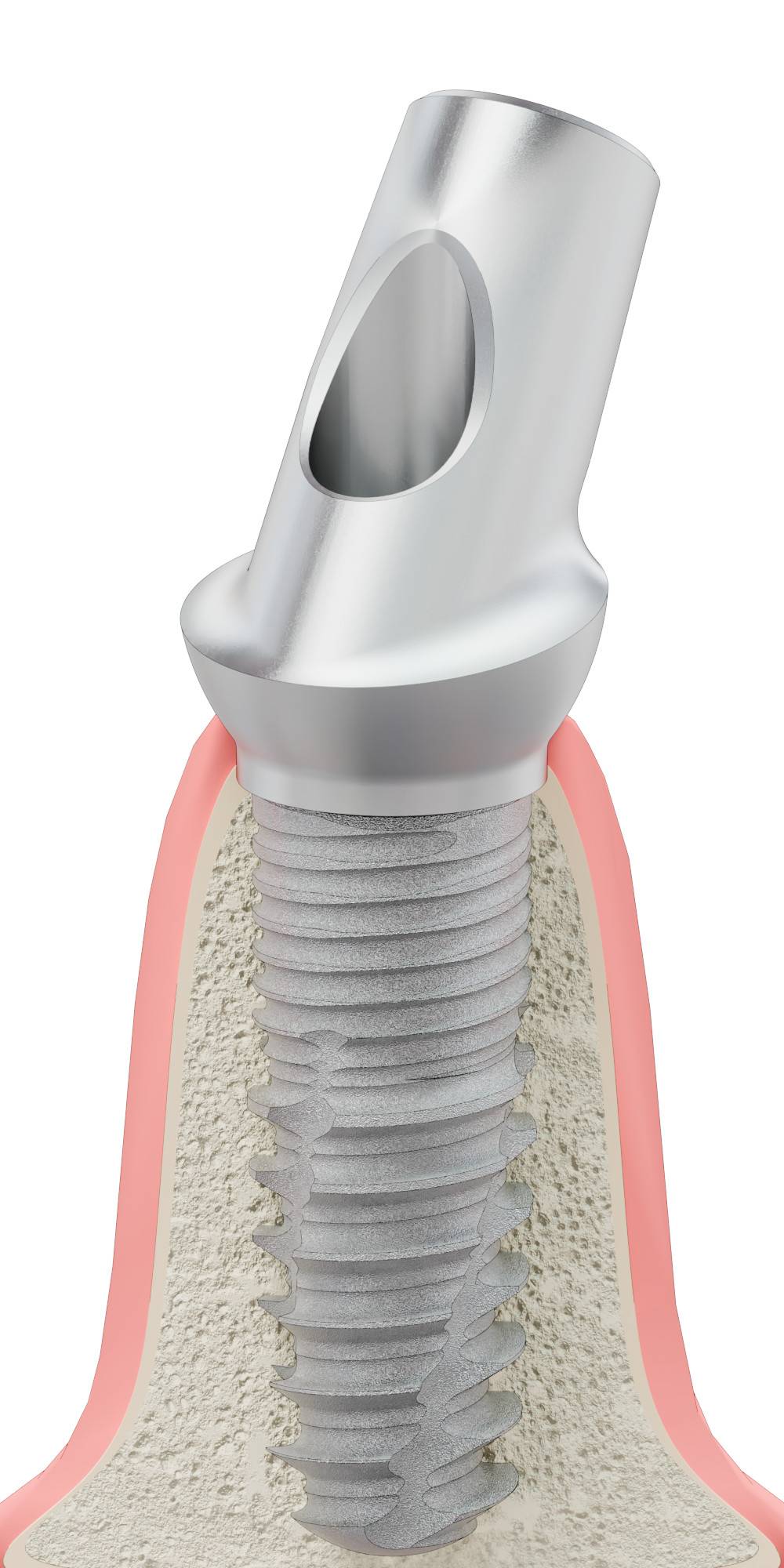

BIONIKA DN, Anatomic abutment, angled, 35°, positioned, type-A

Brand characteristics

The BIONIKA DN implant system is compatible with the Dentium® NR Line platform and features a precise conical and hexagonal (Cone & Hex) connection that ensures micromovement-free fitting and stable load transfer.

The 22° cone angle directs forces deep into the implant body, thereby minimising bone stress and enhancing long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides excellent engagement in the cortical layer, while the self-compressing, self-cutting thread profile ensures outstanding primary stability in the spongy bone.

The platform switching design supports the natural adaptation of soft tissues, creating a biological seal around the implant shoulder.

With its anatomical root-shaped design, bone-condensing thread geometry, and rounded apex, the DN system offers rapid osseointegration, precise placement, and long-term reliability across all clinical indications.

Geometry characteristics

Customisable Abutment for High-Angle Correction with Natural Contour and Precise Orientation

The Anatomic abutment, angled, 35°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for implants exhibiting significant axial deviation. The 35° angulation allows for the correction of major discrepancies between the implant and prosthetic axes without compromising aesthetics or functionality.

The Type A indexed design ensures that the abutment is always repositioned in the same orientation. In this design, a specific flat surface of the connection consistently aligns with the same direction relative to the top of the abutment. This guarantees precise orientation, which is essential in multi-implant restorations.

Main Advantages:

• 35° angle correction: Outstanding capability to correct major axial deviations.
• Anatomical shape: Preformed design promotes natural appearance and gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures precise repositioning.
• Customisable design: Individually shapeable according to clinical or laboratory needs.
• Implant-level connection: Stable and reliable fit to the implant.
• Biocompatible titanium: Durable, tissue-friendly, and sterilisable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-A is the ideal solution when the implant is significantly misaligned with the desired prosthetic axis and precise orientation along with a natural appearance are key—such as in restorations involving multiple implants.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
